Discharge Grille
Product Applications
Perimeter Heating; Lobby Heating; Plenum Heating; Kitchen Make-up Air
The fan pac offers the advantages of eliminating large and unsightly roof-top package equipment, and
through the roof duct systems which require costly installations with greater horsepower requirements
.
Commercial or Industrial Unit Heaters
Since the fan pac incorporates a centrifugal blower designed to operate at static pressures of up to .70 inches
w.g., it is ideally suited for hanging in unused overhead spaces and forcing the warm air to occupied floor
areas. Ductwork can also be utilized to circulate the heated or ventilated air over large areas that may not
be in the vicinity of the fan pac.
Product Construction, Options & Features
Construction:
•All units ETL Listed as a total package with electric heat or hot water coils.
•Certified sound data by an independent testing laboratory.
•Single point pneumatic pipe connections.
•Each fan package is factory tested prior to shipment.
•Fan package, electric heat and optional disconnect switch are factory wired
as a package.
•20 gauge galvanized cabinet acoustically insulated 1” fiberglass.
•1” 4 lb. density core insulation is U.L. Listed and meets NFPA 90A
standards.
•Motors are single speed PSC with thermal over load protections, solid-state
speed controller, and are permanently lubricated.
•Access panels to the blower and motor are placed on both sides of the
cabinet.
•Fan and motor assembly is mounted on a special 16 Gauge pad and
completely isolated from the casing with rubber vibration mounts.
•Made in U.S.A.
Options:
•Factory wired disconnect
switch.
•Throw away filter.
•Permanent filter.
•Electric heat or hot water
coils.
•Sealed access panels.
•120 or 277 PSC motors.
•Dust tight electric panel.
•Acoustically lined
discharge plenum or return
air boot.
Features:
•The fan pac is a basic and very simple on/off operation for an application that requires a fan coil unit
with electric or hot water heat and a static pressure duct system of up to .70 inches w.g.
•The unit can be energized by electric controls (line voltage or low voltage) or by P.E. switches in
conjunction with a pneumatic system.
•SCR motor speed controller for continuous adjustable fan speed from minimum to maximum RPM.
•Built-in line voltage thermostats are available for unit heater type applications.
•Built-in control circuit transformers are available in 24V or 120V.
•Hot water coils are one row 1/2” O.D., two row 5/8” O.D. copper tubes. Aluminum fins are standard
with 10 FPI spacing.
•Transformers for fan motors are NOT available.

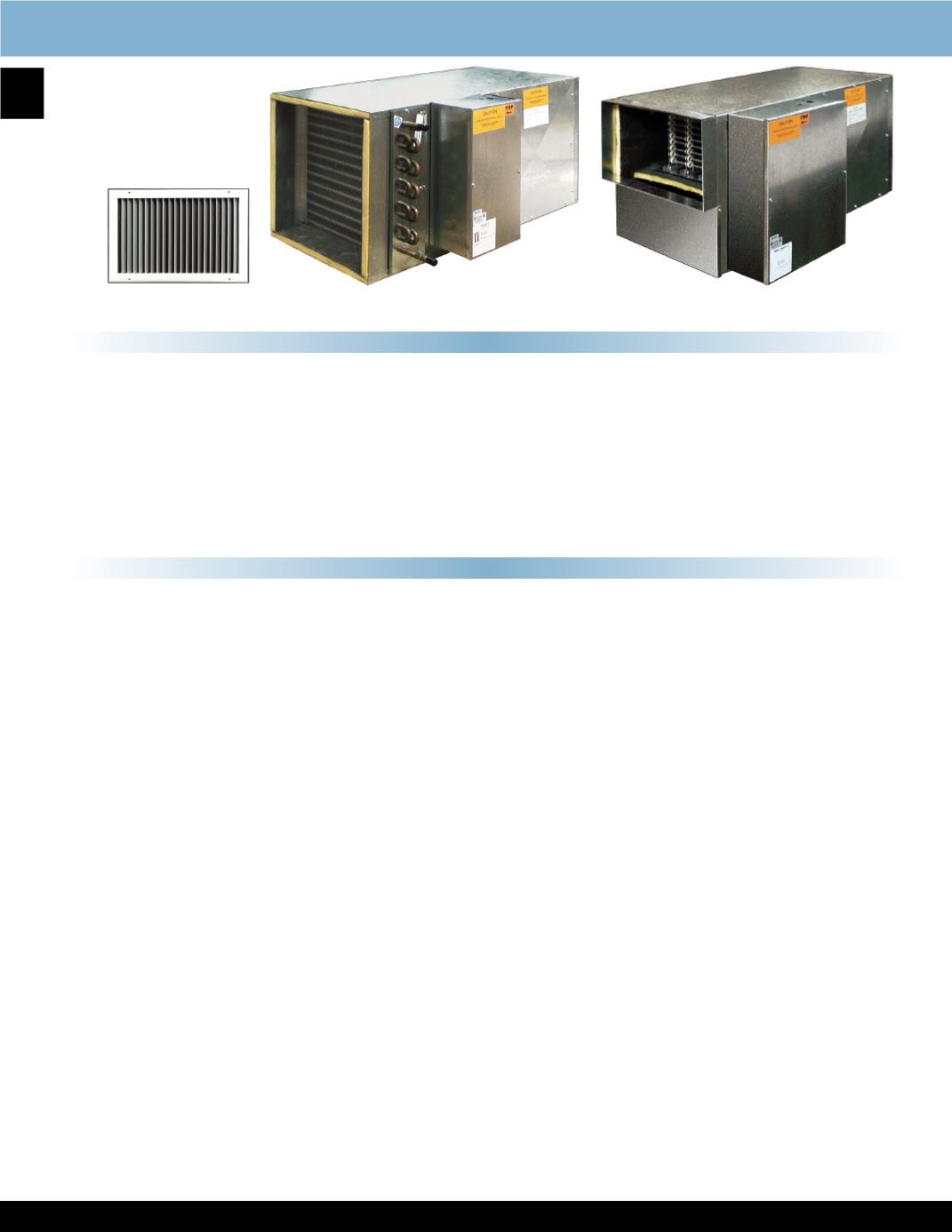

RFH Series Fan Coil Units
RFH - W Model
RFH - E Model
