AIR FLOW
AIR FLOW
AIR FLOW
AIR FLOW
HOT WATER COIL LEFT
HAND CONNECTION.
ELECTRIC HEAT
STANDARD UNIT
STANDARD NO HEAT
UNIT
HAND CONNECTION
AIR FLOW
NOTE:DRAWING SHOWS ELECTRIC
HEAT ALSO AVAILABLE FOR NO
HEAT, AND HOT WATER COILS.
HOT WATER COIL RIGHT
FIG-1
FIG-2
FIG-3
FIG-4
FIG-5

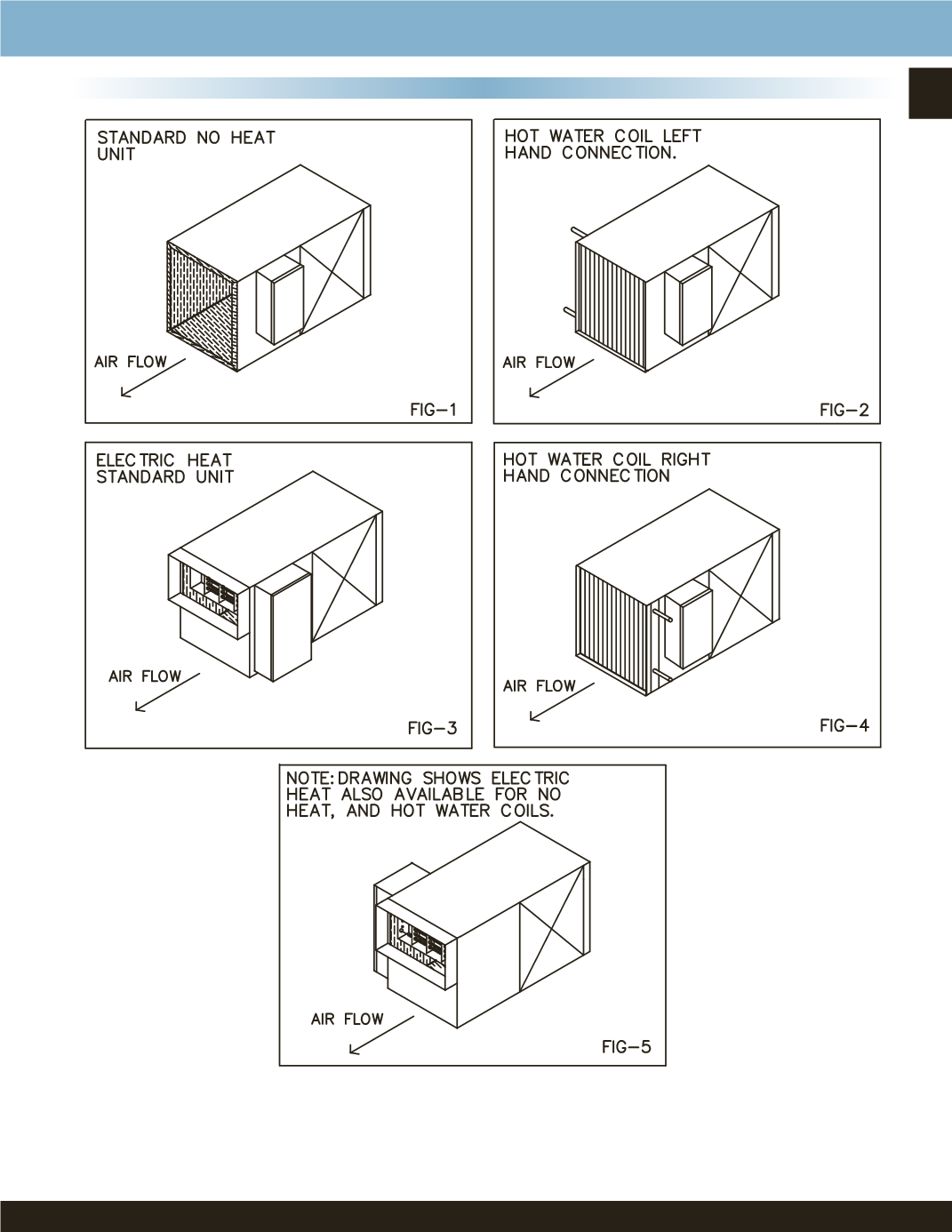

Product Configurations
RFH Series Fan Coil Units
RFH
RFH-W
RFH-E
RFH-W
RFH
