35

Optional controls must be factory installed. Field installation is not

acceptable and violates Listing and factory warranty.

Degree F air rise is measured at 1,000 F.P.M. and 600 CFM. Throw

designed for 8 to 12 foot ceilings. db RE 10

-12

Watt=63.9

Unit Weight:

50 lbs.

Low Voltage:

UT1001

• White powder coated 20 gauge grill.

• All units have manual reset thermal limit, 24V control

transformer, and 24V relay (A1 suffix).

• Enclosed steel fin sheath element.

• Rough in dimensions: 23-1/16” sq. x 9-1/8” deep.

• Made in U.S.A.

Notes

Standard Models

Product Dimensions

Product Specifications

Features

Factory Installed Control Sections

Contractor shall supply and install heavy duty ceiling mounted

forced air electric heater(s) of the wattage, voltage and phase as

indicated on the plans. The heater shall be so designed to provide an

even distribution of heated air to the space to be heated by drawing

return air in the periphery of the heater, across and through the

element and be discharged from the center section of the heater by

means of an electric motor and axial flow fan blade.

Heaters shall be recessed type and mounted flush with the finished

ceiling. The return grille assembly shall be constructed of a one

piece heavy gauge steel with 1/4” slots for return air and concentric

rings for uniform air discharge. Grille assembly shall be attached to

chassis by tamper-resistant (allen head) machine screws. All parts

of enclosure shall be heavy gauge steel, zinc coated both sides and

finished in neutral off white powder coat paint.

Enclosure shall be constructed of 1/6” x 3/8” rounded edge

horizontal steel louvers which shall be spaced for maximum opening

of 5/16”. Louvers shall be welded at every intersection to evenly

spaced 1/8” diameter vertical members. Discharge grille to have

concentric rings for uniform air discharge. Grille assembly shall be

attached to chassis by tamper-resistant (allen head) machine screws.

All part of enclosure shall be heavy gauge steel, Zinc coated both

sides and finished in neutral off white colored powder coat finish.

Motor shall be permanent lubricated, unit bearing, totally

enclosed, impedance protection. Motors shall operate at no more

than 1300 RPM and shall be same voltage as the heater.

Heaters shall have a rating of 600 CFM at 1,000 F.P.M. with a

maximum temperature rise of 44°F and 63.9 DB RE 10 12 Watt.

Element assemblies shall consist of two or three corrosion

resistant steel sheathed type elements mechanically bonded to

common corrosion resistant steel fins. Each sheathed element shall

consist of helically coiled Nickel Chromium alloy resistant wire

completely embedded in and surrounded by magnesium oxide,

enclosed and wedged into corrosion resistant steel sheaths. Elements

shall have 2” cold conductor pins extending into sheath and shall

have a density of no more than 60 Watts per inch.

Heaters shall be equipped with a “manual reset” thermal overload

which disconnects elements and motor in the event normal operating

temperatures are exceeded. For safety, if opened due to abnormal

temperature, thermal overload shall remain open until manually

reset. Automatic reset thermal overloads which allow the element

to continue to cycle under abnormal conditions will not be accepted.

Heaters shall be ETL listed.

*Optional Louver Outlet - $94 Adder

*

Note: When relay for the field is supplied, night setback is built into the heater. The A1

option is replaced by this relay to be controlled by building supplied voltage to the relay.

SUFFIX

DESCRIPTION

LIST

S

Disconnect Switch

171

T

Thermostat

103

RELAYS FOR FIELD SUPPLIED CONTROL - NIGHTLY SETBACK

R Relay Control Voltage Same as Heater (control voltage field supplied)

85

R1

Relay 24V Control Voltage (control voltage field supplied)

139

R2

Relay 120V Control Voltage (control voltage field supplied)

127

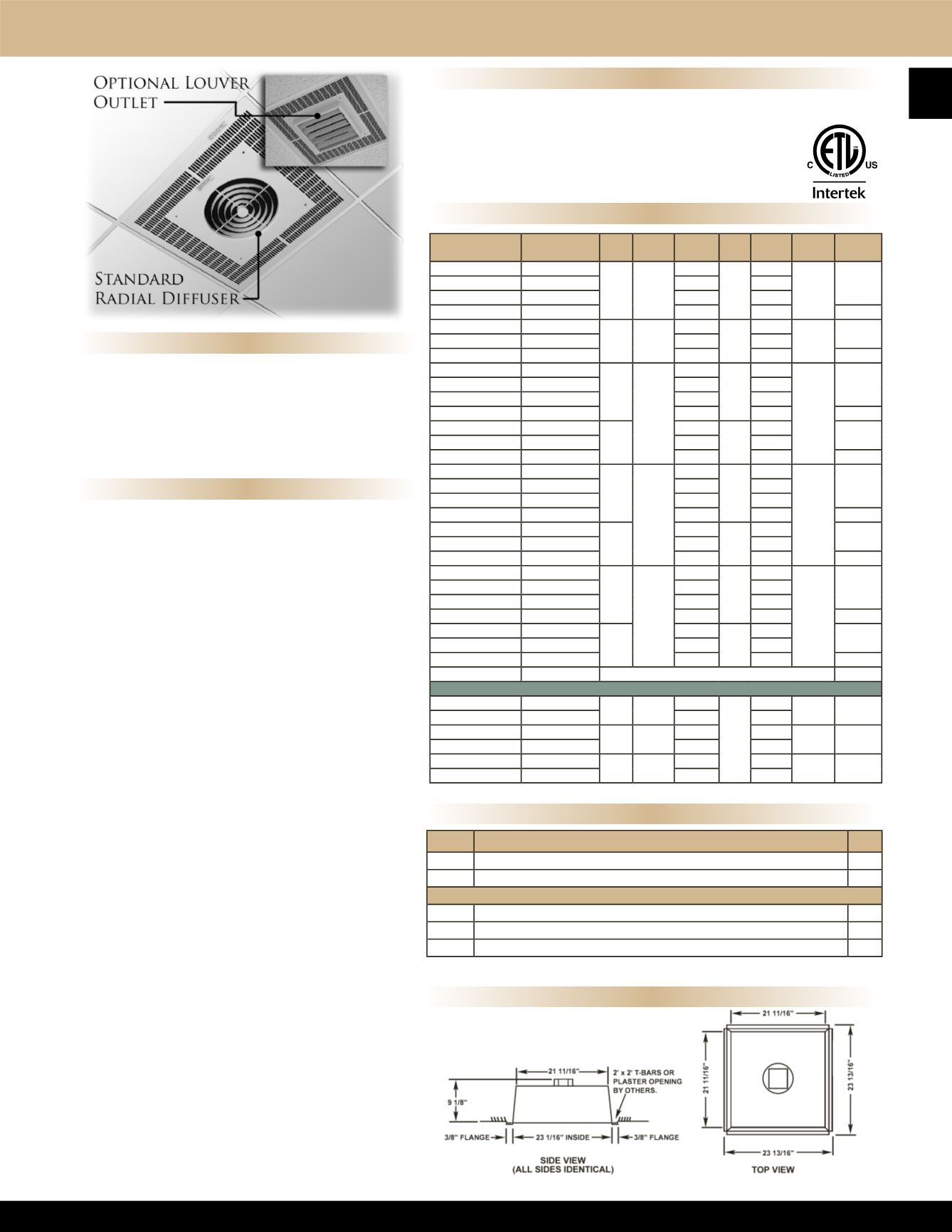

3480 Series Commercial Fan Forced Recessed Mounted Ceiling Heater

MFG CATALOG

NUMBER

MFG MODEL

NUMBER KW BTU’S VOLTS PH AMPS TEMP

RISE

LIST

03153302

F3482A1

2 6826

208

1

9.6

15 °F

1417

03152602

H3482A1

240

8.3

03149702

G3482A1

277

7.2

03184702

P3482A1

480

4.2

1550

04702802

J3482A1

2 6826

208

3

5.6

15 °F

1519

03984902

K3482A1

240

4.8

04702402

Y3482A1

480

2.4

1653

03153202

F3483A1

3

10200

208

1

14.4

22 °F

1433

03148402

H3483A1

240

12.5

03148102

G3483A1

277

10.8

03184802

P3483A1

480

6.3

1567

04706402

J3483A1

3

208

3

8.3

1537

03985002

K3483A1

240

7.2

04702502

Y3483A1

480

3.6

1670

03153602

F3484A1

4

13600

208

1

19.2

30 °F

1450

03155402

H3484A1

240

16.8

03148002

G3484A1

277

14.4

03185002

P3484A1

480

8.3

1582

03148702

J3484A1

4

208

3

11.1

1566

03148202

K3484A1

240

9.7

03185802

Y3484A1

480

4.8

1700

03154802

F3485A1

5

17000

208

1

24.1

37 °F

1626

03155102

H3485A1

240

20.8

03149602

G3485A1

277

18.1

03185402

P3485A1

480

10.4

1767

03150802

J3485A1

5

208

3

13.9

1726

03180902

K3485A1

240

12.1

03184002

Y3485A1

480

6.1

1863

03661002

PT3480

Recess Frame - Weight 5 lbs.

155

International Models

0470971

M3482T2i

2 6826 220

1

9.1 15 °F

1417

0470988

N3482T2i

240

8.3

0470995

M3483T2i

3 10200 220

13.6 22 °F

1433

0471008

N3483T2i

240

12.5

0471015

M3484T2i

4 13600 220

18.2 30 °F

1450

0471022

N3484T2i

240

16.7
