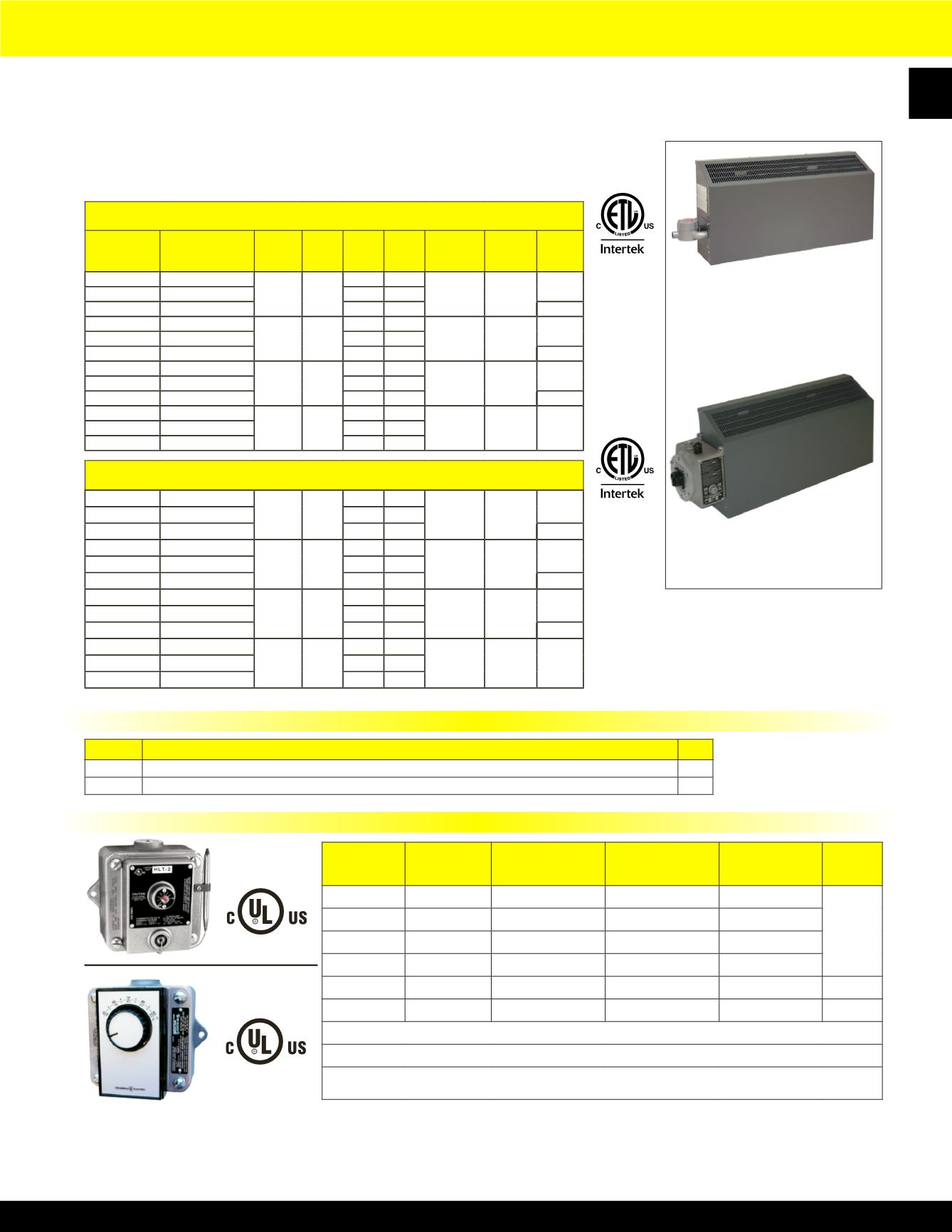

9 / 117
9
Unit with optional control section containing
disconnect, pilot light, and thermostat
(Suffix C1-TDP)
Standard Unit
FEP Series Three Phase Hazardous Location Wall Convector
Dimensions:
Height 5 5/8’’, Width 6 3/8’’, Depth 4 1/2’’
Finish:
Silver-Gray
Type:
Single or Double Pole
Remote Mounted Hazardous Location Thermostats For Single Phase Models Only
• Cabinet size 18” high, 9” wide.
• Bottom In - Top Out air flow.
• Wall mounting bracket supplied.
• Units can not be operated in room ambients exceeding 104
O
F (40
O
C).
• Heavy duty 16 gauge steel with gray epoxy textured powder coated finish.
• 9” minimum clearance from bottom of heater to floor required.
• Stainless steel cartridge element inserted into Aluminum finned Copper sheath.
• Standard unit (without EPET thermostat or control section) is NEMA 4 rated.
Motor Rating:
(full load) 1 1/2 HP @ 250V
Rating: 22A@ 125-277VAC; 125VA@ 24VAC
Rated: Class I Group C & D, Class II Group E, F, G
Thermostat is not rated for use in Group B environments.
EPET Series Parameters
HLT Series
• Made in U.S.A.
*T1 and T2 option not available on 3 phase models
Factory Installed Control Options
**Remove - RA suffix and
add new suffix (Not NEMA
washdown rated or rated for
Group B atmospheres)
Note: C1-TD and C1-TDP are only options available for 3 phase units.
Note: Controls mounted on the left side
only.
Note: Products listed in this section are custom built and subject to 100% cancellation/restock charges.
T-2A SERIES THREE PHASE
Class 1, Group B, C, & D Divisions 1 & 2 280° C / 536° F
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS BTU's VOLTS AMPS CABINET
LENGTH
WT.
(LBS.)
LIST
04830502 FEP-1820-3RA
1800 6143
208 5.0
34”
50
1825
04830602 FEP-1824-3RA
240 4.3
04862202 FEP-1848-3RA
480 2.2
1984
04830702 FEP-3620-3RA
3600 12286
208 10.0
34”
54
2783
04830802 FEP-3624-3RA
240 8.7
04862302 FEP-3648-3RA
480 4.3
2893
04830902 FEP-3820-3RA
3800 12969
208 10.5
58”
80
2955
04831002 FEP-3824-3RA
240 9.1
04862402 FEP3848-3RA
480 4.6
3182
04831102 FEP-7620-3RA
7600 25938
208 21.1
58”
85
3420
04831202 FEP-7624-3RA
240 18.3
04862502 FEP-7648-3RA
480 9.2
T-3A SERIES THREE PHASE
Class 1, Group B, C & D Division 1 & 2 180° C / 356° F
04831302 FEP-0820-3RA
800 2730
208 2.2
34”
50
1825
04831402 FEP-0824-3RA
240 1.9
04862602 FEP-0848-3RA
480 0.9
1984
04831502 FEP-1620-3RA
1600 5460
208 4.4
34”
54
2783
04831602 FEP-1624-3RA
240 3.8
04862702 FEP-1648-3RA
480 1.9
2893
04831702 FEP-1720-3RA
1700 5802
208 4.7
58”
80
2955
04831802 FEP-1724-3RA
240 4.1
04862802 FEP-1748-3RA
480 2.0
3182
04831902 FEP-3420-3RA
3400 11604
208 9.4
58”
85
3387
04832002 FEP-3424-3RA
240 8.2
04862902 FEP-3448-3RA
480 4.1
SUFFIX**
DESCRIPTION
LIST
C1-TD Control section with transformer, 24V contactor, SP thermostat (40
O
F - 110
O
F) and disconnect switch (all units)
2133
C1-TDP Control section with transformer, 24V contactor, SP thermostat (40
O
F - 110
O
F), disconnect switch & pilot light (all units)
2215
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION LOAD RATINGS
RANGE
LIST
05380702
EPETD8D DPDT - Bi-Metal
22A@120-277VAC 50-90
o
F
359
05381002
EPETD8S SPDT - Bi-Metal
22A@120-277VAC 50-90
o
F
05280702
EPETP8D DPDT - Bi-Metal
22A@120-480VAC 50-90
o
F
05280602
EPETP8S SPDT - Bi-Metal
22A@120-480VAC 50-90
o
F
05231502
HLT-1
SPDT - Capillary 22A@120-277VAC 40-110
o
F
515
05231602
HLT-2
DPDT - Capillary 22A@120-277VAC 40-110
o
F
544
Master ctn: 4 pcs, 24 lbs (varies slightly by model), 16” x 14.5” x 6”
EPET Series incorporates plastic knob & Bi-Metal Sensor housing.
HLT Series incorporates screwdriver temperature adjustment slot and all metal housing. External bulb and capillary
sensor.
