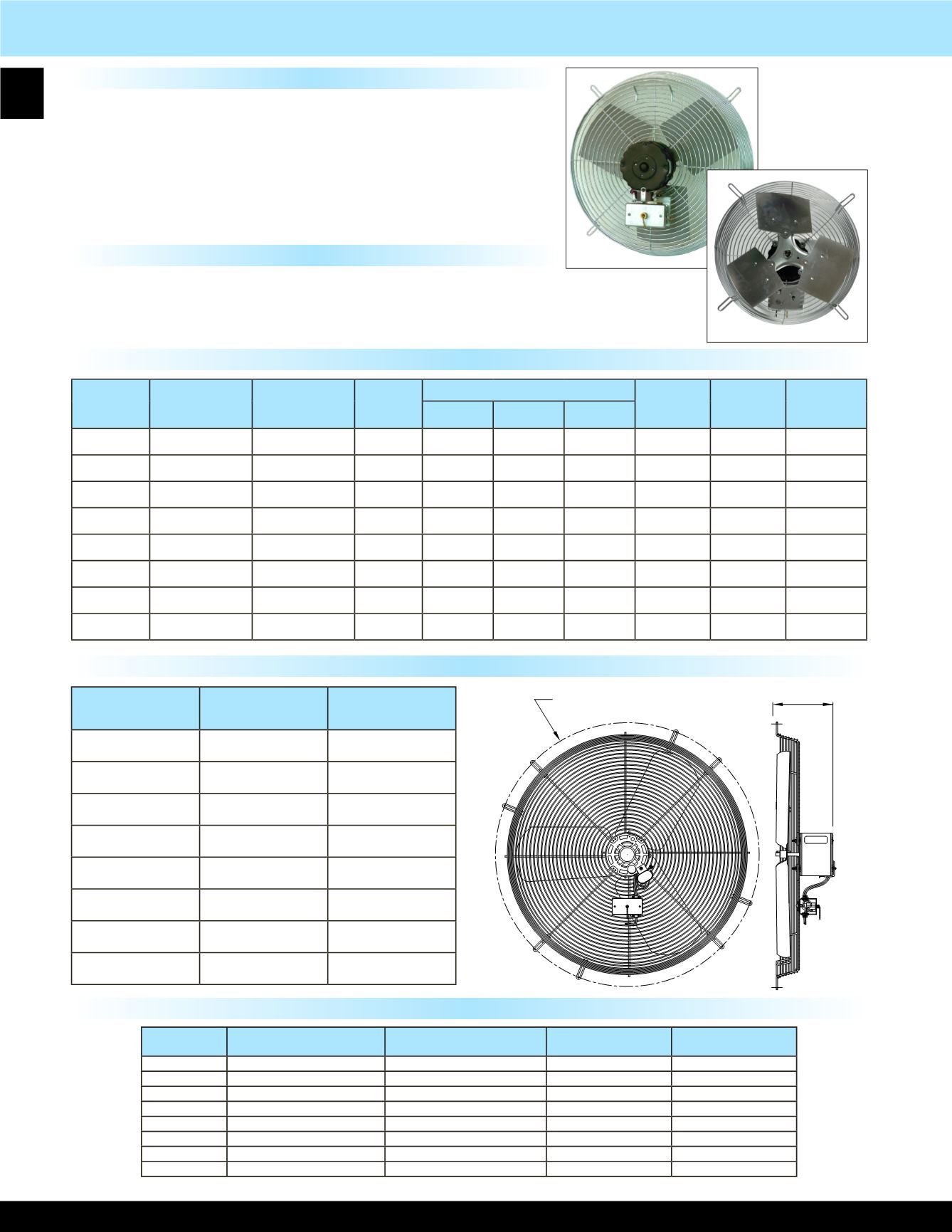

Guard Mounted Direct Drive Exhaust Fans
Features
• Bolts directly to the wall
• Can be used with or without external shutter
• Pull chain switch
• No Cord-Junction box provided for direct wiring
• Aluminum blade
• Steel spiral wire guards
• Made in U.S.A. with domestic and foreign components.
Note: Rough-in hole size is 1/2” inch larger than fan blade size
• 120V, 1-Phase, totally enclosed, permanently lubricated
• 1/12 HPmotor is 3-Speed sleeve bearing permanent split capacitor
• 1/8 HP motor is 3-Speed sleeve bearing permanent split capacitor
• 1/4 HP motor is 2-Speed ball bearing permanent split capacitor
Motor Specifications
Standard Models
Dimensions (Inches)
Optional Wall Shutters
SIZE
BOLT HOLE
CENTER WIDTH
DEPTH
10”
14.14”
5.81”
12”
16.46”
7.18”
14”
18.30”
7.18”
16”
20.34”
7.18”
18”
22.64”
7.18”
20”
25.46”
7.18”
24”
29.08”
7.18”
30”
34.89”
7.18”
Front View
Rear View
DEPTH
BOLT HOLE CENTER DIAMETER
ø
FAN
SIZE
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
HP
CFM / RPM
AMPS
HIGH
WT.
(LBS)
LIST
HIGH MED LOW
10”
08689502
CE 10-D
1/12
680 / 1560 540 / 1250 460 / 1080
1
11
265
12”
07985002
CE 12-D
1/12
825 / 1560 710 / 1250 560 / 1080
1.1
12
299
14”
08689602
CE 14-D
1/8
1520 / 1660 1400 / 1550 1250 / 1370
2
17
317
16”
08689702
CE 16-D
1/8
2100 / 1660 1900 / 1550 1700 / 1370
2.1
18
333
18”
07984902
CE 18-D
1/8
2300 / 1660 2100 / 1050 1850 / 1370
2.2
19
366
20”
08689802
CE 20-D
1/4
2925 / 1140
-
2380 / 1070
2.3
34
475
24”
07984802
CE 24-D
1/4
3400 / 1140
-
2770 / 1070
2.5
38
528
30”
07984702
CE 30-D
1/4
3950 / 1140
-
3080 / 1070
2.7
42
616
