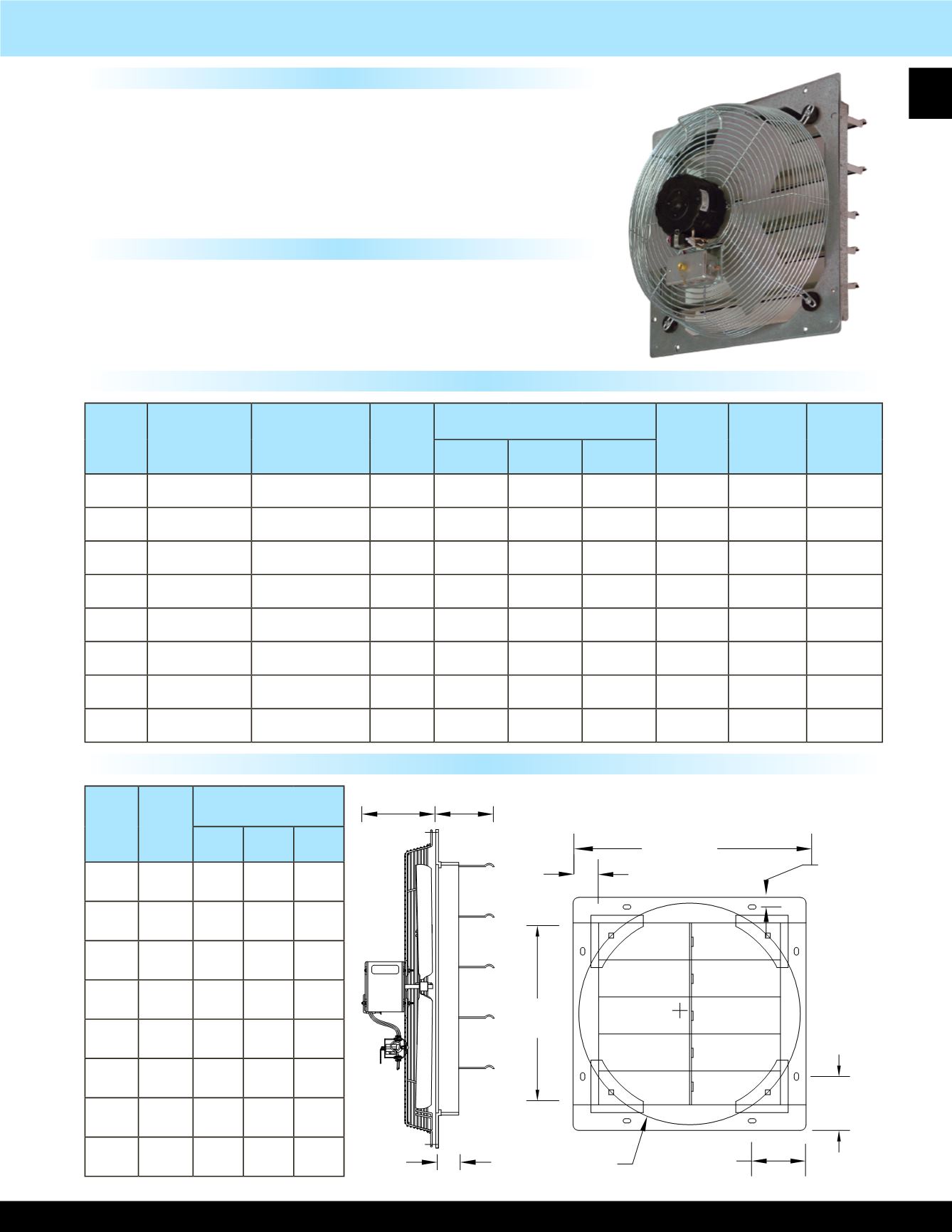

Shutter Mounted Direct Drive Exhaust Fans
Features
• Can be installed from inside wall
• Eliminates need for external framing and shutter
• Pull chain switch
• No Cord-Junction box provided for direct wiring
• Aluminum blade
• Steel spiral wire guards
• Made in U.S.A. with domestic and foreign components.
• 120V, 1-Phase, totally enclosed, permanently lubricated
• 1/12 HPmotor is 3-Speed sleeve bearing permanent split capacitor
• 1/8 HP motor is 3-Speed sleeve bearing permanent split capacitor
• 1/4 HP motor is 2-Speed ball bearing permanent split capacitor
Motor Specifications
Standard Models
Dimensions (Inches)
Note: Rough-in hole size is 1/2” inch larger than fan blade size
SIZE DEPTH
DIMENSIONS
“A” “B” “C”
10” 5.81” 13.125” 10” 12.375”
12” 7.18” 15.125” 12” 14.375”
14” 7.18” 17.125” 14” 16.375”
16” 7.18” 19.125” 16” 18.250”
18” 7.18” 21.125” 18” 21.750”
20” 7.18” 23.125” 20” 23.686”
24” 7.18” 27.125” 24” 27.750”
30” 7.18” 33.125” 30” 33.750”
CE SHUTTER REAR
VIEW
"C"
3.500TYP.
+/-.03125
"A" +/-.3125
1.563
.785 TYP
+/-.03125
2.375
+/-.03125
6.125 MAX
OPEN
"B"
+/-.03125
3.500 TYP.
+/-.03125
0.312 SQUARE 4 PLS.
SPACED 90 DEGREES APART
DEPTH
FAN
SIZE
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
HP
CFM / RPM
AMPS
HIGH
WT.
(LBS)
LIST
HIGH MED
LOW
10”
08689902
CE 10-DS
1/12
680 / 1560 540 / 1250 460 / 1080
1
11
313
12”
07986202
CE 12-DS
1/12
825 / 1560 710 / 1250 560 / 1080
1.1
16
353
14”
08690002
CE 14-DS
1/8
1520 / 1660 1400 / 1550 1250 / 1370
2
17
448
16”
08690102
CE 16-DS
1/8
2100 / 1660 1900 / 1550 1700 / 1370
2.1
18
468
18”
07986302
CE 18-DS
1/8
2300 / 1660 2100 / 1050 1850 / 1370
2.2
25
509
20”
08690202
CE 20-DS
1/4
2925 / 1140
-
2380 / 1070
2.3
34
603
24”
07986402
CE 24-DS
1/4
3400 / 1140
-
2770 / 1070
2.5
47
671
30”
07986502
CE 30-DS
1/4
3950 / 1140
-
3080 / 1070
2.7
54
840
