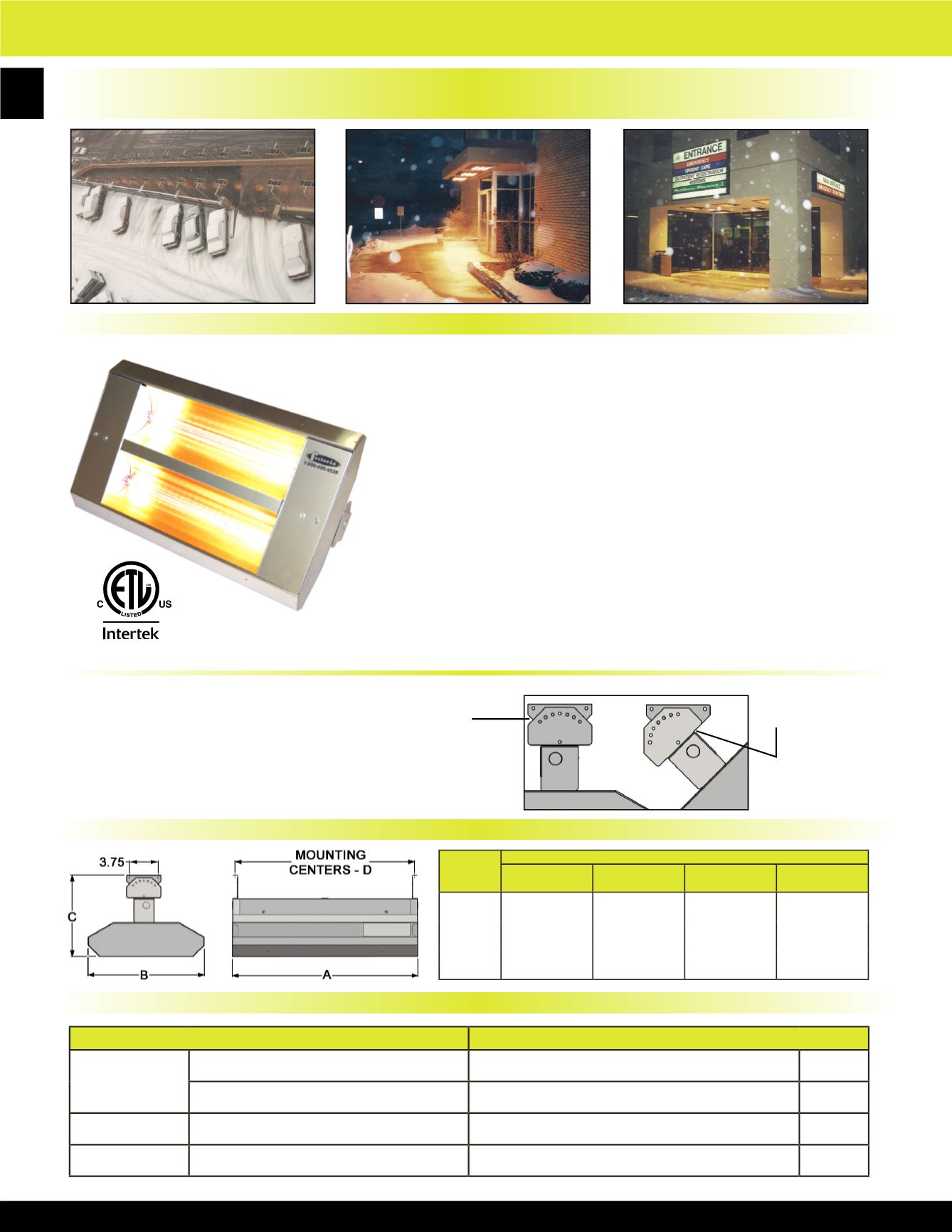

Overhead Infrared Heaters for Snow & Ice Control, Outdoor Spot Heating & All Indoor
Heating Applications
Product Dimensions
Mounting Clearances & Recommended Mounting Height
Mounting Clearances
Recommended Mounting Height
2 & 3 Lamp
Models
3” from ceiling
30° Symmetric & A30° Asymmetric Reflector - Indoor 14’ - 30’
24” from vertical surface
60° Symmetric & A60° Asymmetric Reflector - Indoor 12’ - 18’
2 Lamp Models 72” from face of heater to combustible surface
90° Symmetric Reflector
- Indoor
8’ - 12’
3 Lamp Models 96” from face of heater to combustible surface 30° Symmetric & A30° Asymmetric Reflector - Outdoor 8’ - 10’
TH & THSS Series Mul-T-Mount Electric Infrared Heater
Product Description
Features:
In-Built surface mounting brackets
allows for fixture adjustment up to
45° horizontal tilt.
0 to 45
o
tilt @
15
o
increments
In-built surface
mounting
brackets
attached to
the top wiring
channel.
MUL-T-
MOUNT
SERIES
DIMENSIONS (IN.)
“A”
LENGTH
“B”
WIDTH
“C”
HEIGHT
“D”
MTG.CTR.
222
24"
15"
10-7/8"
23-1/2"
342
33"
15"
10-7/8"
32-1/2"
462
46"
15"
10-7/8"
45-1/2"
223
24"
21-1/2"
10-7/8"
23-1/2"
343
33"
21-1/2"
10-7/8"
34"
463
46"
21-1/2"
10-7/8"
45-1/2"
• Listed for suspended, totally exposed (outdoor), high-bay (indoor)
comfort heating and exterior snow & ice control applications.
• Listed for recessed applications.
• 20 gauge painted steel or stainless steel housings.
• Gold anodized Aluminum reflectors & end caps.
• 50% higher Watt densities for 3-element units.
• 2-Lamp wiring, single phase.
• 3-Lamp wiring, three or single phase.
• Stainless steel models have non-corrosive housing, hardware
and brackets; no ferrous metals used in the unit. Durable in harsh
atmospheres & outdoor environments.
• High temperature lead wires.
• Clear Quartz Lamp(s) Included.
• Made in U.S.A.
AVAILABLE IN 2 OR 3 LAMP BROWN ENAMEL OR STAINLESS STEEL.
