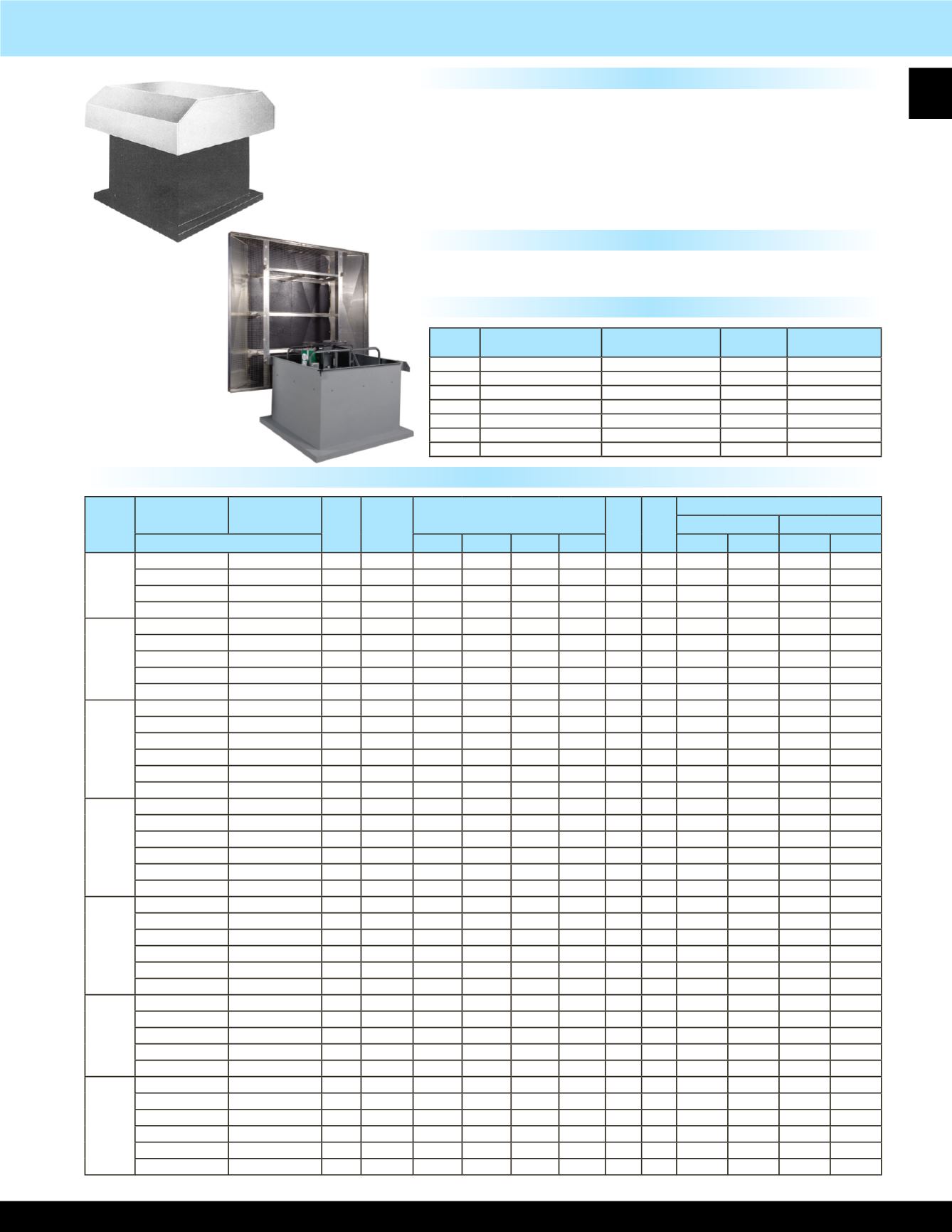

Belt Drive Hooded Roof Ventilators
Features
• Used for exhaust or intake
• Heavy industrial steel base with aluminum hood
• Steel blades
• Bird screen included
• No back draft protection in standard construction.
Dampers offered as optional accessory.
• 1 year limited warranty
Options
• Roof curb
• Filters
Dimensions
SIZE MINIMUM ROOFHOLE (SQUARE)
HOLE
LENGTH x WIDTH
HOOD
HEIGHT
ROOF CURB
O.D. (SQUARE)
24” 30” 54” x 64” 30” 39”
30” 36” 60” x 76” 36” 45”
36” 42” 72” x 82” 40” 51”
42” 48” 80” x 89” 43” 57”
48” 54” 87” x 95” 46” 63”
54” 60” 92” x 98” 54” 69”
60” 66” 90” x 107” 56” 75”
OPEN
CLOSED
Standard Models
• Direct drive
• Protective coatings, explosion proof.
Note: Products listed in this section are custom built and subject to 100% cancellation/restocking charges.
BLADE
SIZE
1-PHASE
115/230V
3-PHASE
230/460v HP RPM
C.F.M - STATIC PRESSURE Db’s
@ 10’
WT.
(LBS)
LIST
EXHAUST INTAKE
MFG MODEL NUMBER 0” 1/8” 1/4” 1/2” 1 PH 3 PH 1 PH 3 PH
24”
RE24-1/4 RE24-1/4-3 1/4 780 4900 4222 2807 800 60 340 6227 6201 6227 6201
RE24-1/2 RE24-1/2-3 1/2 980 6219 5716 5061 2600 66 350 6452 6386 6452 6386
RE24-3/4 RE24-3/4-3 3/4 1140 7090 6648 6144 4413 71 360 6591 6486 6591 6486
RE24-1 RE24-1-3 1 1250 7180 6696 6271 4464 73 365 6949 6751 6949 6751
30”
RE30-1/3 RE30-1/3-3 1/3 595 7909 6380 3617 767 60 385 7228 7188 7228 7188
RE30-1/2 RE30-1/2-3 1/2 640 8507 7170 4486 1373 64 385 7339 7273 7339 7273
RE30-3/4 RE30-3/4-3 3/4 770 10235 9192 7657 3833 66 400 7591 7486 7591 7486
RE30-1 RE30-1-3 1 975 10668 9959 8626 5184 70 400 7844 7644 7844 7644
RE30-1 1/2 RE30-1 1/2-3 1.5 1140 12473 11867 11112 8135 77 410 8002 7704 8002 7704
36”
RE36-1/3 RE36-1/3-3 1/3 460 9113 6992 3722 486 64 425 8758 8717 8758 8717
RE36-1/2 RE36-1/2-3 1/2 530 10500 8821 5985 2084 66 425 8864 8797 8864 8797
RE36-3/4 RE36-3/4-3 3/4 605 11985 10583 8563 4017 68 435 9042 8937 9042 8937
RE36-1 RE36-1-3 1 665 13174 11932 10299 5729 70 440 9247 9048 9247 9048
RE36-1 1/2 RE36-1 1/2-3 1.5 720 13660 12012 9579 5000 72 440 9610 9280 9610 9280
RE36-2 RE36-2-3 2 870 16554 15376 14088 9691 74 455 10326 9765 10326 9765
42”
RE42-1/2 RE42-1/2-3 1/2 390 12343 9352 4957 1642 65 540 9824 9756 9824 9756
RE42-3/4 RE42-3/4-3 3/4 435 14040 11530 7633 3311 67 545 10168 10063 10168 10063
RE42-1 RE42-1-3 1 490 15429 13194 10438 4668 69 555 10373 10175 10373 10175
RE42-1 1/2 RE42-1 1/2-3 1.5 550 17420 15421 13117 7289 71 560 10446 10248 10579 10248
RE42-2 RE42-2-3 2 725 20653 19128 17503 11319 74 570 11222 10664 11222 10664
------ RE42-3-3 3 830 23645 22296 20984 17290 79 585 ---- 10798 ---- 10798
48”
RE48-3/4 RE48-3/4-3 3/4 370 17339 13700 7389 2244 70 650 11924 11818 11924 11818
RE48-1 RE48-1-3 1 410 19188 16078 10903 4037 71 660 12135 11936 12135 11936
RE48-1 1/2 RE48-1 1/2-3 1.5 465 21731 19010 14991 7081 72 665 12320 11991 12320 11991
RE48-2 RE48-2-3 2 520 24274 21943 19080 10125 74 680 13029 12467 13029 12467
------ RE48-3-3 3 680 28150 25683 23615 16930 80 700 ---- 12624 ---- 12624
------ RE48-5-3 5 800 33160 30900 29290 25000 83 720 ---- 12724 ---- 12724
54”
RE54-1 RE54-1-3 1 410 23130 20588 17500 9600 73 910 14440 14240 14440 14240
RE54-1 1/2 RE54-1 1/2-3 1.5 450 25400 22600 19300 10316 75 920 14731 14400 14731 14400
RE54-2 RE54-2-3 2 480 27200 24312 20660 11010 76 930 15102 14539 15102 14539
------ RE54-3-3 3 550 31213 28722 25830 15420 77 940 ---- 14804 ---- 14804
------ RE54-5-3 5 660 37458 35238 32893 26538 80 960 ---- 14916 ---- 14916
60”
RE60-1 RE60-1-3 1 250 23090 19161 12850 ---- 76 1150 15195 14996 15195 14996
RE60-1 1/2 RE60-1 1/2-3 1.5 340 28068 23283 15624 8000 77 1150 15778 15446 15778 15446
RE60-2 RE60-2-3 2 390 32200 26710 17924 9380 78 1200 16122 15560 16122 15560
----- RE60-3-3 3 450 37183 32356 25324 15013 84 1220 ---- 15831 ---- 15831
----- RE60-5-3 5 540 44600 41232 35819 23237 86 1240 ---- 15930 ---- 15930
----- RE60-7 1/2-3 7.5 620 50184 47603 43981 32880 89 1285 ---- 16493 ---- 16493
