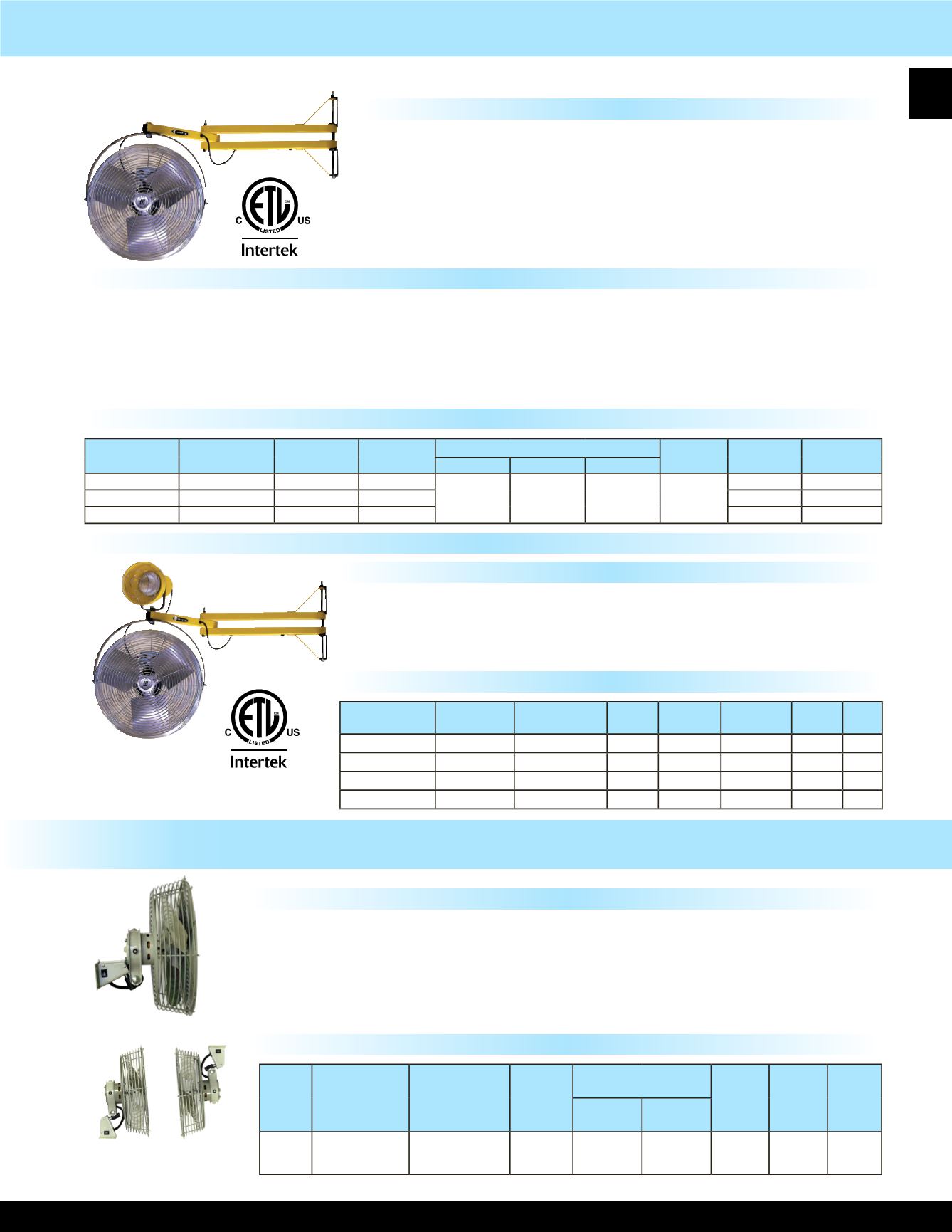

18” HIGH VELOCITY FAN MOUNTED ON 24”, 40”, or 60” PIVOTINGARMS
Workstation Wall Mount Fan With Pivoting Arm
• 1-1/2" square, 14 gauge, steel tubing
• 3" x 5" x 3/16” mounting plate attaches with (4) 3/8" bolts
• 5' long., 18/3 SJTW conductor cord and NEMA 5-15 grounded
plug
• Dual electrical outlets embedded in arm to allow connection of
modular fan and optional light
• Made in U.S.A. with domestic and foreign components.
Mounting Arm Features
Standard Models
• 18" high velocity circulator, with 3 speed, 1/8 HP, 115V, 1-Phase
permanently lubricated, totally enclosed, PSC motor
• Modular fan plugs into electrical outlet on arm
• Coated steel guards / Aluminum blades
• Meets OSHA standards / 1 year limited warranty
Use on loading docks to
cool off workers entering
hot truck trailers.
Use at factory
workstations to cool off
people or the machines.
Optional Modular Lights
Modular Fan Features
Light Features
• Plugs into embedded outlet in arm
• On/Off switch and wire guard included
• Bulb included with DKL-QH and DKL-FL
• Made in U.S.A. with domestic and foreign components.
Standard Models
Low Velocity “Special Application” Workstation Fan
Features
• 12” all metal, gray powder coated fan that
can be wall, ceiling or bench mounted
• Direct wire electrical connection
• Toggle switch
• Fan head tilts 90° in horizontal and
vertical plane
• Meets OSHA standards /1 year
limited warranty
• Made in U.S.A. with domestic and
foreign components
Standard Models
BENCH
MOUNT
CEILING
MOUNT
WALL MOUNT
DKL-INC
mounted on
40-LDF-TE
(above)
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
FAN
SIZE
ARM
LENGTH
FAN CFM
MAX
AMPS
WT.
(LBS)
LIST
HIGH
MED
LOW
08009102
24-LDF-TE
18”
24”
2500
2200
1980
2.2
31
312
08009202
40-LDF-TE
18”
40”
38
388
08009302
60-LDF-TE
18”
60”
44
417
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
LIGHT HEAD
TYPE
MAX
WATTS
MAX
LUMENS
AVE. BULB
LIFE (HRS)
WT.
(LBS)
LIST
04465602
DKL-INC Incandescent
300
3,700
2,000
5
80
04465702
DKL-QH Quartz Halogen 500 11,000
2,000
6
119
04843302
DKL-FL Fluorescent
55
3,000
10,000
7
185
04708602
DKL-LED
LED
12
960
50,000
5
273
SIZE MFG CATALOG
NUMBER
MFG MODEL
NUMBER
MOTOR
HP
CFM / RPM
AMPS
HIGH
WT.
(LBS)
LIST
HIGH LOW
12”
08708902
N-12
1/12 1540 / 1350 930 / 750
0.6
12
324
