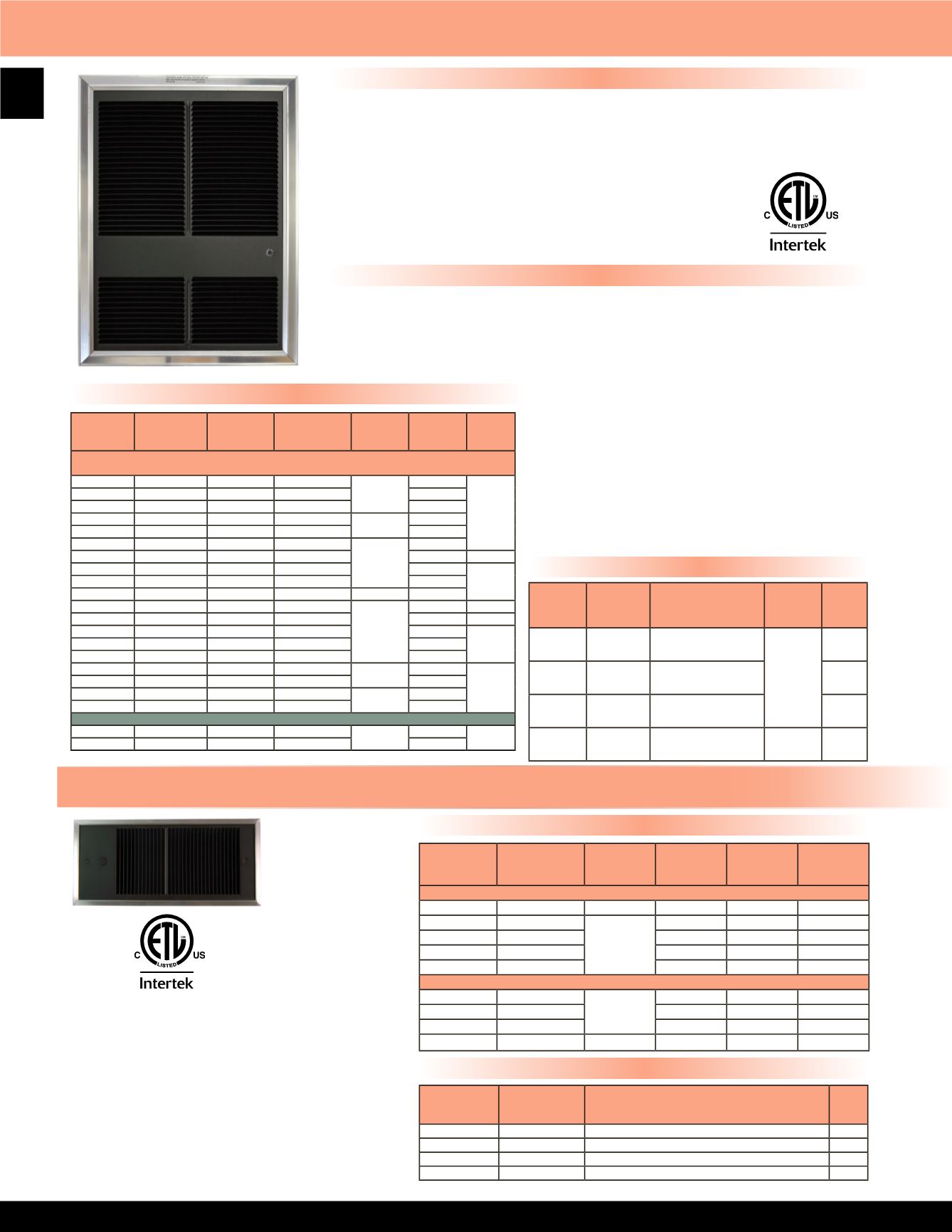

Features
Accessories
Product Specifications
Standard Models
4400 Series Low Profile Commercial Fan Forced Wall Heater - With Wall Box
Accessories
Standard Models
Furnish and install Heavy-Duty Forced Air wall heaters, where specified. The heaters
shall be constructed of a heavy 18 gauge steel housing with an extruded Aluminum
frame. The rough-in dimensions are 19-7/16” High x 14-3/16” Wide x 4” Deep. The
units shall be available in ratings from 750 to 4800 Watts at 240, 208, and 277 Volts.
The heaters shall have a low-speed 600 RPM, 4-pole motor which drives a vane axial
blower to deliver a quiet 175 CFM of down flow air. The heating element shall be
of the sealed tubular type with large, parallel steel fins
for quick heat transfer. Unit shall have as a standard,
a thermal overload cut-off for added safety, fan delay
switch and built-in tamper proof thermostat which shall
be calibrated to provide a range of 0°F. to 110°F. and
manual disconnect switch.
Optional accessories shall include a surface and semi-
recess mounting adapter. All heaters shall be listed by
ETL. The heating element shall be supplied with a
manufactures 1-year limited warranty.
• Disconnect switch.
• Built-In tamper proof thermostat.
• Automatic fan delay circuit.
• Made in U.S.A.
• Automatic reset thermal limit.
• Powder coated 18 gauge steel grill with extruded Aluminum front frame.
• Steel block fin element.
• Vane axial fan blade:
600 RPM motor; 175 CFM
• Rough-in dimensions:
14-3/16” Wide x 19-7/16” High x 4” Deep
• Grill dimensions:
15-29/32” Wide x 20-27/32” High
• Powder coated 20
gauge steel front
with extruded
Aluminum frame.
• Manual reset
thermal limit.
• Finned tubular
steel element.
• Propeller style fan blade - 2200 RPM/70 CFM
• Weight 9 lbs.
• Rough in dimensions:
14-1/2” Wide x 7-1/8” High x 3-1/2” Deep
• Grill dimensions:16-7/8” Wide x 8” High
• Unit not approved for ceilingmount applications.
• Unit can be positioned to allow left, right or top
discharge.
• Made in U.S.A.
*Indicates 3-Phase model. All other models are 1-Phase.
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
VOLTS WATTS
MAX
BTU’S
AMPS
DOUBLE POLE IN-BUILT THERMOSTAT (RANGE 40º - 100º F)
03283202 F4420T2RP
208
2000
6826
9.6
03283302 HF4475T2RP
240/208
750 / 562 2560 / 1920 3.1 / 2.7
03283402 HF4410T2RP
1000 / 750 3413 / 2560 4.2 / 3.6
03283502 HF4415T2RP
1500 / 1125 5120 / 3840 6.3 / 5.4
03283602 HF4420T2RP
2000 / 1500 6826 / 5120 8.3 / 7.2
SINGLE POLE IN-BUILT THERMOSTAT (RANGE 0º - 110º F)
03283702 E4475TRP
120
750
2560
6.25
03283802 E4410TRP
1000
3413
8.33
03283902 E4415TRP
1500
5120
12.5
03284002 F4420TRP
208
2000
6826
9.6
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION
WT.
(LBS)
03299102
4400EX8
1” SEMI RECESSING EXTENDER
2
03299002 4400EX16
2” SEMI RECESSING EXTENDER
3
03298902 4400EX32
4” SURFACE MOUNTING FRAME
4
03284402
4300PB WALL PLATE ADAPTOR (OD 21.5”x12.25”)
1
AFA Series Commercial Fan Forced Wall Heater
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS
BTU’s
VOLTS AMPS WT.
(LBS)
IN-BUILT SINGLE POLE TAMPERPROOF THERMOSTAT (50º - 90º TEMPERATURE RANGE)
FOR DOUBLE POLE THERMOSTAT REPLACE “T” IN MODEL NUMBER WITH “T2” -- Add $50
03820502 AFA107D 750
2560
120
6.25
26
03819902 AFA110D 1000
3413
8.3
03808802 AFA115D 1500
5120
12.5
03809302 AFA840D 4000
13800
208
19.2
03810202 AFA848D 4800
16560
23
03809402 AFA215D 1500 / 1125 5120 / 3840
240 / 208
6.2 / 5.4
03809502 AFA220D 2000 / 1500 6284 / 5120
8.3 / 7.2 27
03809602 AFA230D 3000 / 2250 10350 / 7763
12.5 /10.8
29
03809702 AFA240D 4000 / 3000 13800 / 10350
16.7/14.4
03810302 AFA248D 4800
16560
240
20
03809802 AFA715D 1500
5120
277
4.1
26
03809902 AFA720D 2000
6284
7.2
27
03810002 AFA730D 3000
10350
10.8
29
03810102 AFA740D 4000
13800
14.4
03810402 AFA748D 4800
16560
17.3
03980702 AFA840D-3* 4000
13800
208
11.11
30
03980802 AFA240D-3* 4800
16560
13.33
03980902 AFA848D-3* 4000
13800
240
9.64
03981002 AFA248D-3* 4800
16560
11.57
International Models
03964202 M3324TD-RPi 3360/1680 11468/5734
220 15.3/7.64 27
03964302 M3325TD-RPi 4032/2016 13761/6881
18.3/9.16
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION TYPE WT.
(LBS)
03778502 BOX AFA Additional Rough-in
Box
Field
Installed
3
03287502 AFAEX33 4” Surface Mounting
Frame
1
03287602 AFAEX16 2” semi recess extender
1
-----
Suffix - HD 16 Gauge Steel Heavy
Duty Grill
Factory
Installed 2
