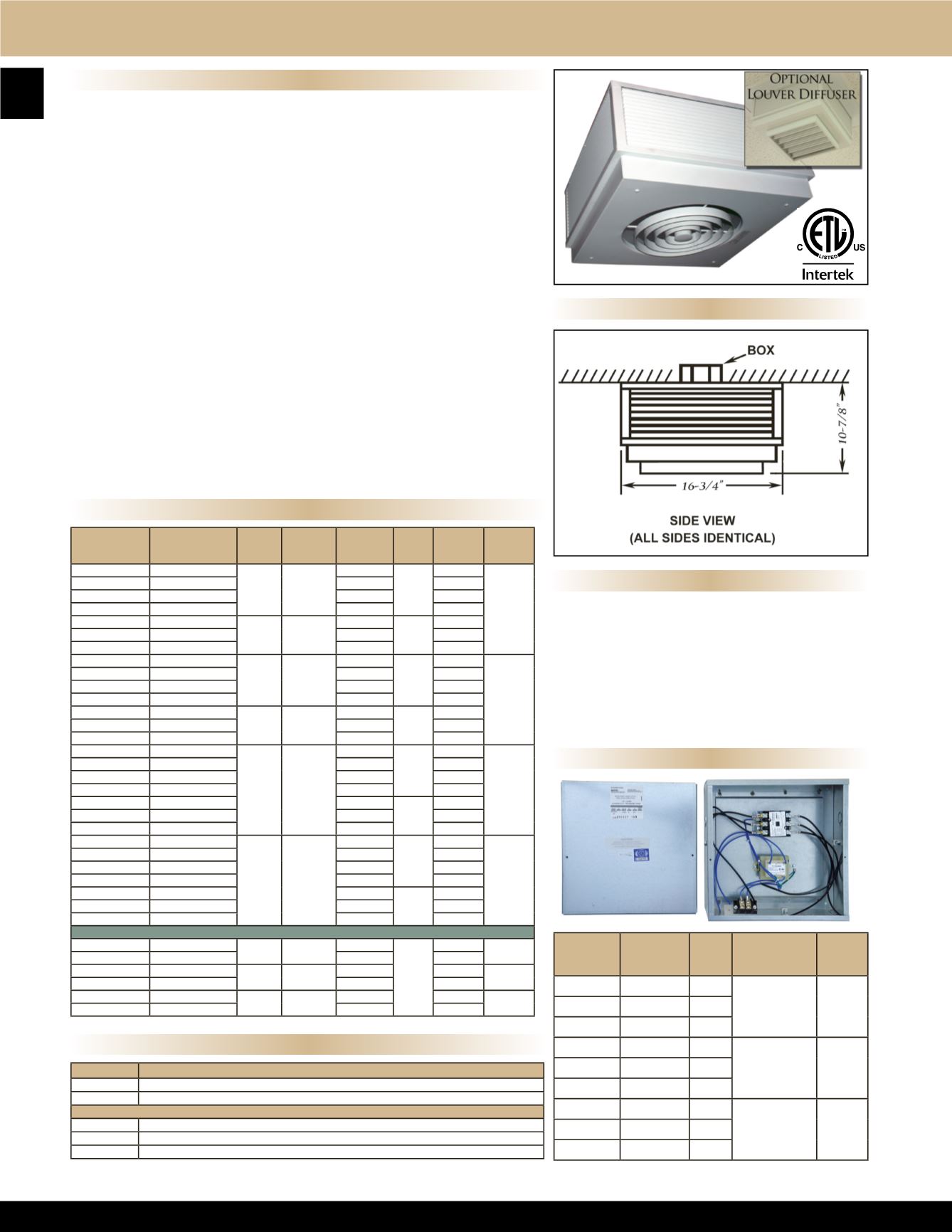

CONSTRUCTION:
Made in U.S.A.
Contractor shall supply and install heavy duty ceiling mounted forced air electric
heater(s) of the wattage, voltage and phase as indicated on the plans. The heater shall
so be designed to provide an even distribution of heated air to the space to be heated
by drawing return air in the periphery of the heater, across and through the element
and be discharged from the center section of the heater by mean of an electric motor
and axial flow fan blade.
MOTOR:
Motor shall be permanent lubricated, unit bearing, totally enclosed shaded
pole type with impedance protection. Motors shall operate at no more than 1300 RPM
and shall be same voltage as the heater.
PERFORMANCE:
Heaters shall have a rating of 600 CFM at 1,000 F.P.M. with a
maximum temperature rise of 44°F and 63.9 DB RE 10 12 Watt.
ELEMENT:
Element assemblies shall consist of two or three corrosion resistant
steel sheathed type elements mechanically bonded to common corrosion resistant
steel fins. Each sheathed element shall consist of helically coiled Nickel Chromium
alloy resistant wire completely embedded in and surrounded by Magnesium Oxide,
enclosed and wedged into corrosion resistant steel sheaths. Elements shall have 2”
cold conductor pins extending into sheath and shall have a density of no more than
60 watts per inch.
THERMALOVERLOAD:
Heaters shall be equipped with a “manual reset” thermal
overload which disconnects elements and motor in the event normal operating
temperatures are exceeded. For safety, if opened due to abnormal temperature,
thermal overload shall remain open until manually reset. Automatic reset thermal
overloads which allow the element to continue to cycle under abnormal conditions
will not be accepted.
COMMERCIALAND INSTITUTIONALAPPLICATIONS:
Use in - vestibules,
entrance ways, lobbies, rest rooms and small office and guard building applications.
Product Dimensions
Product Specifications
Wall Mounted Control Panels
Standard Models
Factory Installed Control Sections
Notes
Optional controls must be factory installed. Field installation is
not acceptable and violates Listing and factory warranty.
Degree F air rise is measured at 1,000 F.P.M. and 600 CFM.
Throw designed for 8 to 12 foot ceilings. db RE 10
-12
Watt=63.9
Unit weight:
32 lbs.
Recommended Remote Thermostats:
Low Voltage:
UT1001
SUFFIX
DESCRIPTION
S
Disconnect Switch
T
Single Pole (480V only)
RELAYS FOR FIELD SUPPLIED NIGHTLY SETBACK
R
Relay Control Voltage Same as Heater (control voltage field supplied)
R1
Relay 24V Control Voltage (control voltage field supplied)
R2
Relay 120V Control Voltage (control voltage field supplied)
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
VOLTS CONTACTORS BOX
SIZE
06057002 AF3401-24 208
1 @ 35 AMPS 12" x 12"
x 4 1/2"
06057902 AH3401-24 240
06058502 AG3401-24 277
06057402 AF3402-24 208
2 @ 35 AMPS 15" x 15"
x 4 1/2"
06057802 AH3402-24 240
06058402 AG3402-24 277
06057302 AF3403-24 208
3 @ 35 AMPS 18" x 18"
x 4 1/2"
06057702 AH3403-24 240
06058302 AG3403-24 277
SCH Series Commercial Fan Forced Surface Mounted Ceiling Heater
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
KW BTU’S VOLTS PH AMPS TEMP
RISE
03982602 81SCH2A1
2
6826
208
1
9.6
15 °F
03982702 21SCH2A1
240
8.3
03982802 71SCH2A1
277
7.2
03243302 41SCH2A1
480
4.2
03983702 83SCH2A1
2
6826
208
3
5.6
03983802 23SCH2A1
240
4.8
04702202
43SCHA1
480
2.4
03810602 81SCH3A1
3 10200
208
1
14.4
22 °F
03982902 21SCH3A1
240
12.5
03983002 71SCH3A1
277
10.8
03243402 41SCH3A1
480
6.3
03983902 83SCH3A1
3 10200
208
3
8.3
03984002 23SCH3A1
240
7.2
04702302
43SCHA1
480
3.6
03983102 81SCH4A1
4 13600
208
1
19.2
30 °F
03983202 21SCH4A1
240
16.8
03983302 71SCH4A1
277
14.4
03243502 41SCH4A1
480
8.3
03984102 83SCH4A1
208
3
11.1
03984202 23SCH4A1
240
9.7
03243602 43SCH4A1
480
4.8
03983402 81SCH5A1
5 17000
208
1
24.1
37 °F
03983502 21SCH5A1
240
20.8
03983602 71SCH5A1
277
18.1
03243702 41SCH5A1
480
10.4
03984302 83SCH5A1
208
3
13.9
03984402 23SCH5A1
240
12.1
03243802 43SCH5A1
480
6.1
International Models
04709102
M3472T2i
2
6826
220
1
9.1 15 °F
04709202
N3472T2i
240
8.3
04709302
M3473T2i
3 10200 220
13.6 22 °F
04709402
N3473T2i
240
12.5
04709502
M3474T2i
4 13600 220
18.2 30 °F
04709602
N3474T2i
240
16.7
