57

6.0”

6.0”

Ø .395 (TYP)

3-1/8"

1-9/16"

3"

3-1/8"

4-1/2"

1-9/16"

3" MINIMUM

FINISHEDFLOOR

15/16"

WALL MOUNT

PEDESTAL MOUNT

2-1/16"

2-7/16"

TYP

PEDESTAL

BASE

3-1/16”

1-1/2"

1-1/8"

1-9/16"

BACK VIEW

OUTSIDE CORNER

SECTION

INSIDE CORNER

SECTION

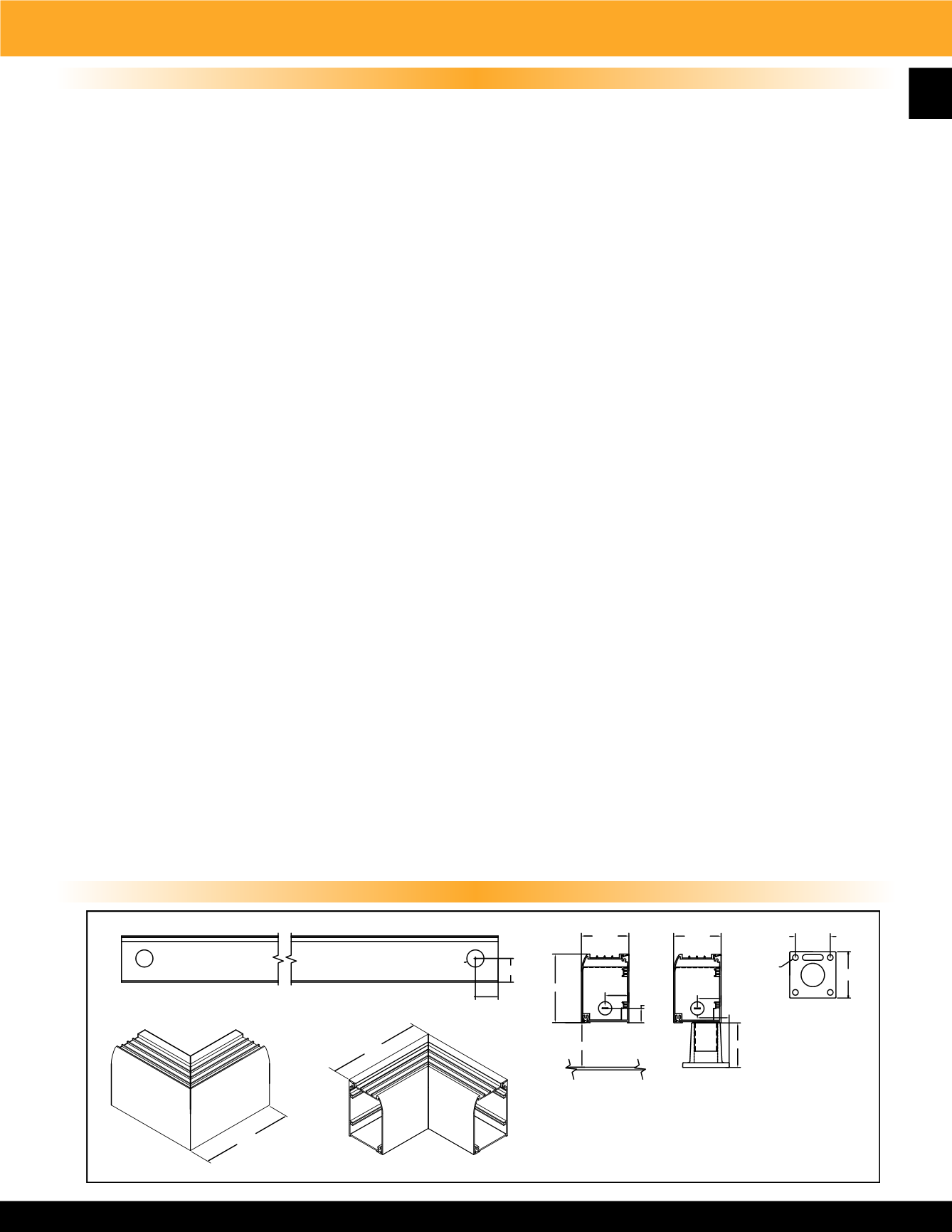

9100 Series - Radius Front Draft Barrier Heater

Product Specifications

Product Dimensions

CABINET

9100 Series shall be constructed of 14 gauge extruded 6063 Aluminum heat treated to T5 hardness. The

uni-lock construction shall allow easy installation and access to back plate for wiring. The snap-fit front

cover makes installation and service very simple. Custom factory enclosures to 1/16 inch increments are

built for exact wall to wall fit up to 10 foot enclosure lengths. The 14 gauge back plate will have electrical

knockouts for incoming power on each end adjacent to junction box. Pedestal mounted units will have

incoming power connection through the pedestal on bottom of unit and will have smooth back for optional

finished back. The die punched front cover will have no screw heads or fasteners.

ELEMENTS

High mass sheathed element construction with Nickel-Chromium resistance wire embedded in compacted

efficient die-electric to ensure proper heat transfer. Aluminum fins mechanically bonded to stainless steel

tube allows for increased surface area and even heat transfer.

LIMIT CONTROLS

Manual reset hydraulic thermal overload covers full length of heating element and shuts down heater

when safe operating temperatures are exceeded.

WIRING

Wiring shall be in either end of the enclosure. Wiring can be in the junction box or optional control section

if additional controls are needed. Pedestal mounted units shall have 1-1/4” hole through the pedestal and

in the bottom of the enclosure for incoming power wiring. All heaters have a factory supplied built in

raceway for wiring from either end of the heater or for wiring of continuous heater connections.

CONTROLS

Optional controls include single or double pole thermostat and disconnect switch that are factory wired

in enclosed junction box on each end of heater enclosure. Relay, transformer relay and duplex receptacle

options shall be mounted in extended length control section.

Control section will add to heater

enclosure length

. The control section for the duplex receptacle will add 4” to enclosure length. The

control section for other optional components or combinations of components will have two options (6” or

12”) depending on controls required.

APPLICATION

The 9100 series is ETL listed for commercial, industrial or residential applications on all units up to 250

Watts per foot.
