59

Ø .395 (TYP)

3

1

16

"

TYP

PEDESTAL

BASE

3"

7.500

6.15

2

15

16

7.500

6.15

3" MINIMUM

FINISHED FLOOR

2

7

16

"

"

12.0

Ø .395 (TYP)

3

1

16

"

TYP

PEDESTAL

BASE

3"

7.500

6.15

2

15

16

7.500

6.15

3" MINIMUM

FINISHED FLOOR

2

7

16

"

"

12.0

12.0

Ø .395 (TYP)

3

1

16

"

TYP

PEDESTAL

BASE

3"

7.500

6.15

2

15

16

7.500

6.15

3" MINIMUM

FINISHED FLOOR

2

7

16

"

"

12.0

12.0

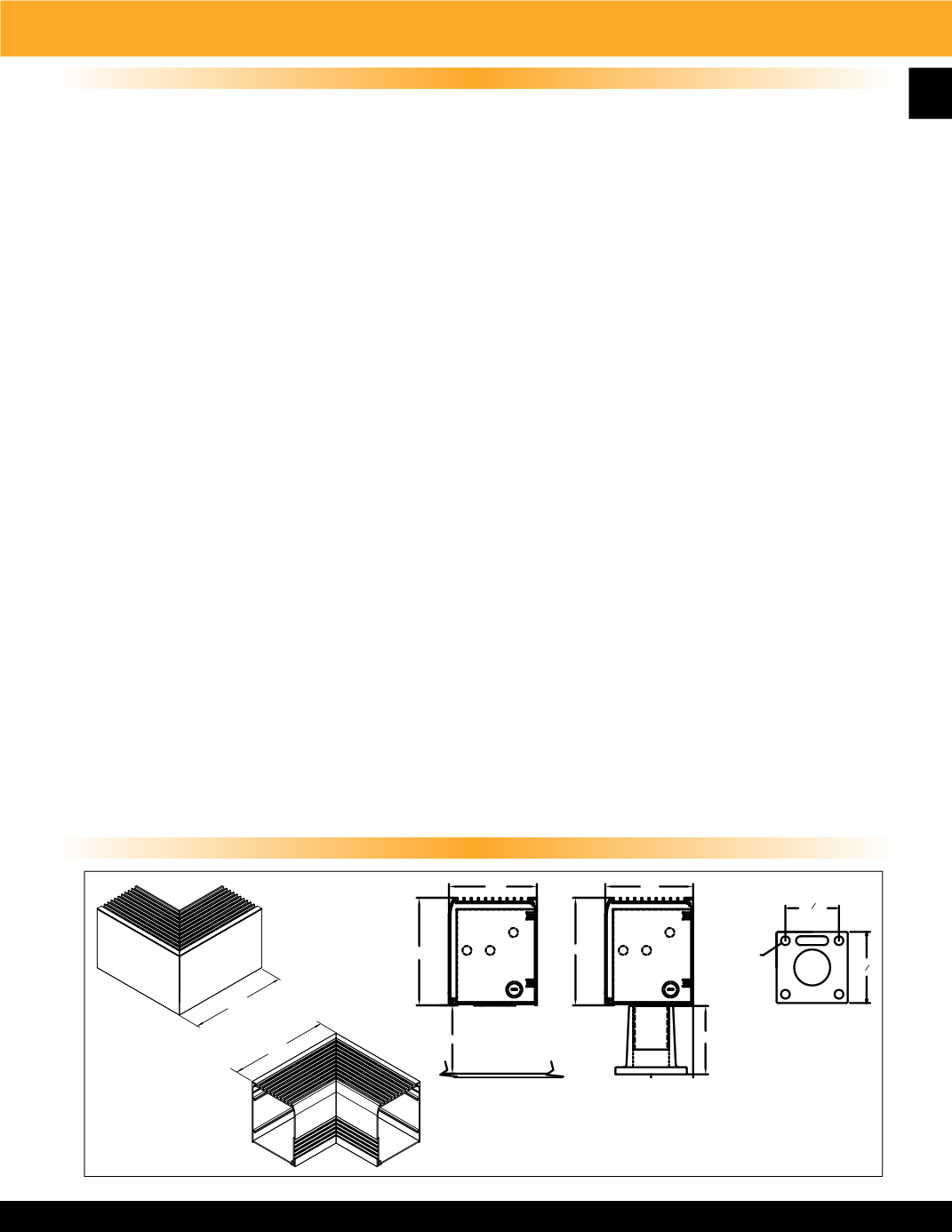

9300 Series - Radius Front Draft Barrier Heater

Product Dimensions

CABINET

9300 Series shall be constructed of 12 gauge extruded 6063 Aluminum heat treated to T5 hardness. The

uni-lock construction shall allow easy installation and access to back plate for wiring. The snap-fit front

cover makes installation and service very simple. Custom factory enclosures to 1/16 inch increments are

built for exact wall to wall fit up to 10 foot enclosure lengths. The 12 gauge back plate will have electrical

knockouts for incoming power on each end adjacent to junction box. Pedestal mounted units will have

incoming power connection through the pedestal on bottom of unit and will have smooth back for optional

finished back. The die punched front cover will have no screw heads or fasteners.

ELEMENTS

High mass sheathed element construction with Nickel-Chromium resistance wire embedded in compacted

efficient die-electric to ensure proper heat transfer. Aluminum fins mechanically bonded to stainless steel

tube allows for increased surface area and even heat transfer.

LIMIT CONTROLS

Manual reset hydraulic thermal overload covers full length of heating element and shuts down heater

when safe operating temperatures are exceeded.

WIRING

Wiring shall be in either end of the enclosure. Wiring can be in the junction box or optional control section

if additional controls are needed. Pedestal mounted units shall have 1-1/4” hole through the pedestal and

in the bottom of the enclosure for incoming power wiring. All heaters have a factory supplied built in

raceway for wiring from either end of the heater or for wiring of continuous heater connections.

CONTROLS

Optional controls include single or double pole thermostat and disconnect switch that are factory wired in

enclosed junction box on each end of heater enclosure.

If necessary, control section will add to heater

enclosure length

. The control section for other optional components or combinations of components will

have two options (6” or 12”) depending on controls required.

APPLICATION

The 9300 series is ETL listed for commercial or industrial applications on all units up to 750 Watts per

foot on all units. 3 Phase units have a minimum of 300 Watts per foot.

Product Specifications

INSIDE CORNER

SECTION

OUTSIDE CORNER

SECTION
