30 AMP Plug
NEMA #6-30P
20 AMP Plug
NEMA #6-20P
30 AMP Plug
NEMA #6-30P
20 AMP Plug
NEMA #6-20P
30 AMP Plug
NEMA #6-30P
20 AMP Plug
NEMA #6-20P
30 AMP Plug
NEMA #6-30P
20 AMP Plug
NEMA #6-20P

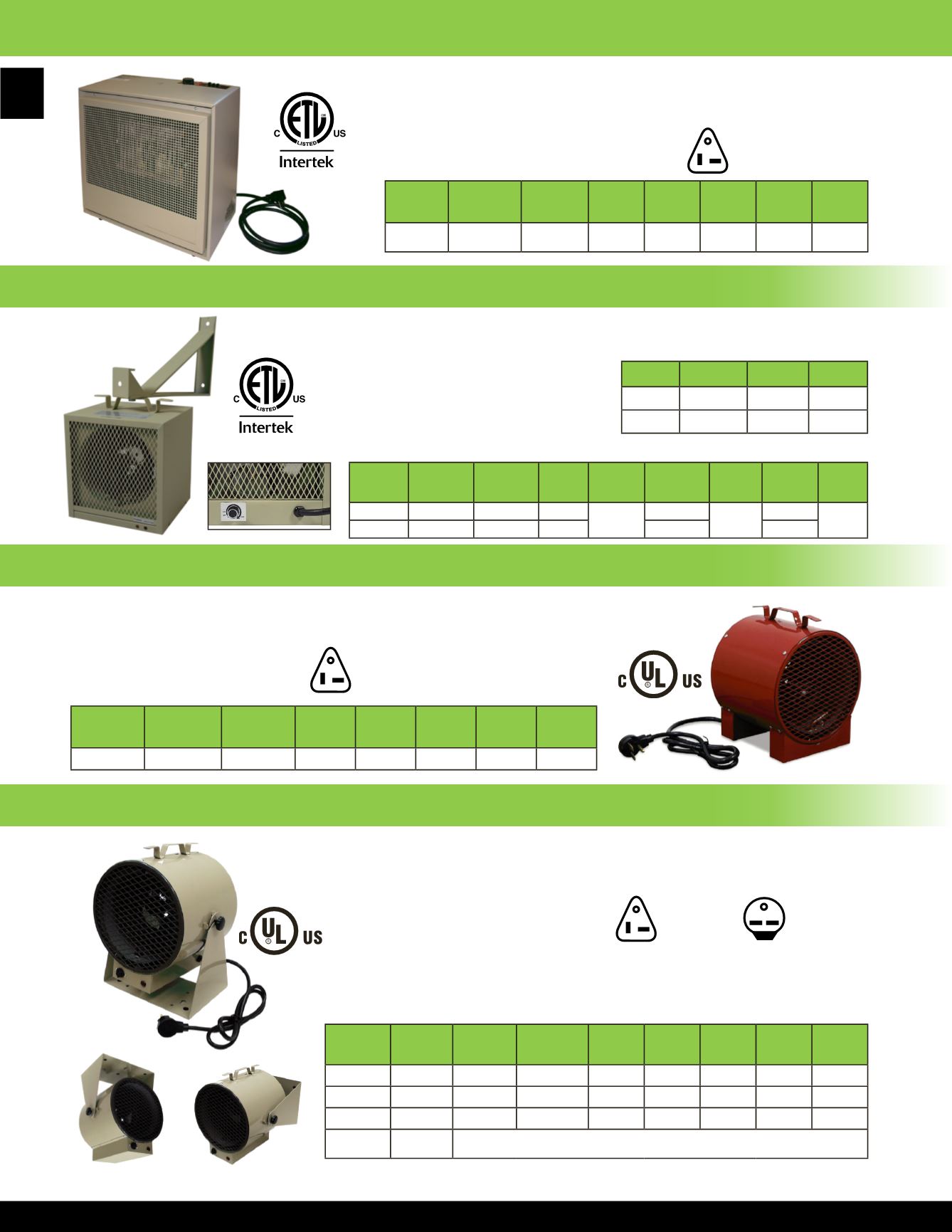

474 Series 240 Volt Dual Heat Fan Forced Portable Heater
• 1920W & 3840W heat settings
• Temperature control thermostat
• Manual reset type limit control
• 6’ long - 3 conductor cord
• Imported to TPI Corporation
specifications
Width: 16”
Height: 16”
Depth: 8-1/2”
ICH Series 240/208 Volt Construction Site/Utility Fan Forced Portable Heater
680 Series “Bulldog” 240/208 Volt Fan Forced Portable Unit Heater
Swivel base allows unit to be wall, floor, or
ceiling mounted.
Width: 10 5/8”
Height: 12 3/4”
Depth: 10”
• Operates on 240V or 208V
• Finned steel tubular heating element
• Internal manual reset thermal cut-out
• 6’ long cord with molded plug
• Temperature control thermostat with 35°F to 85°F range
• 10’ air throw - 262 CFM
• Imported to TPI Corporation specifications
Width: 13 1/2”
Height: 17 1/2”
Depth: 11 1/2”
* HF684TC UL listed only
• Operates on 240V or 208V
• Steel tubular heating element
• 43°F air heat rise
• Internal overheat thermostat
• Temperature control thermostat
• 6’ long cordset
5800 Series Garage/Workshop 240/208 Volt Fan Forced Portable Heater
• Up to 4800 Watts of heating comfort for
garage or utility room applications
• 4000 Watts available for smaller areas.
• Built in bi-metal double pole
thermostat - 50° to 90° range.
• Steel tubular heating element
• Wall/Ceiling bracket included
• Manual reset standard
• Power on and overheat pilot lights
ITEM WIDTH HEIGHT DEPTH
Heater
10.625
11”
9.625”
Bracket
2.5”
10”
14.0”
HF684TC
HF685TC,
HF686TC
• Imported to TPI Corporation
specifications
• Imported to TPI Corporation
specifications
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS MAX
BTU's
VOLTS PHASE AMPS TEMP
RISE
WT.
(LBS)
04462802
*
HF684TC 4000/3000 13652/10239 240/208
1 16.7/14.5 48
o
F
20
04462902 HF685TC 4800/3600 16384/12288 240/208
1 20.0/17.4 58
o
F
20
04463002 HF686TC 5600/4200 19107/14330 240/208
1 23.4/20.2 75
o
F
20
06835002 A1560 OPTIONAL WALL CEILING BRACKET FOR HF680 & ICH 240C SERIES
HEATERS
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS MAX
BTU's
VOLTS AMPS PHASE WT.
(LBS)
04508702 ICH-240C 4000 / 3000 13648 240 / 208 16.7 / 14.4 1
15
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS MAX
BTU's VOLTS AMPS PHASE PLUG
TYPE
WT.
(LBS)
05034002 HF5840TC 4000/3000 13652
240 / 208
16.6 / 14.4
1
20 Amp
17
05033902 HF5848TC 4800/3600 15086
20 / 17.3
30 Amp
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WATTS MAX
BTU's VOLTS AMPS PHASE WT.
(LBS)
04461802 H474TM-C 1920/3840 13106 240 8.0 / 16.0 1
20
