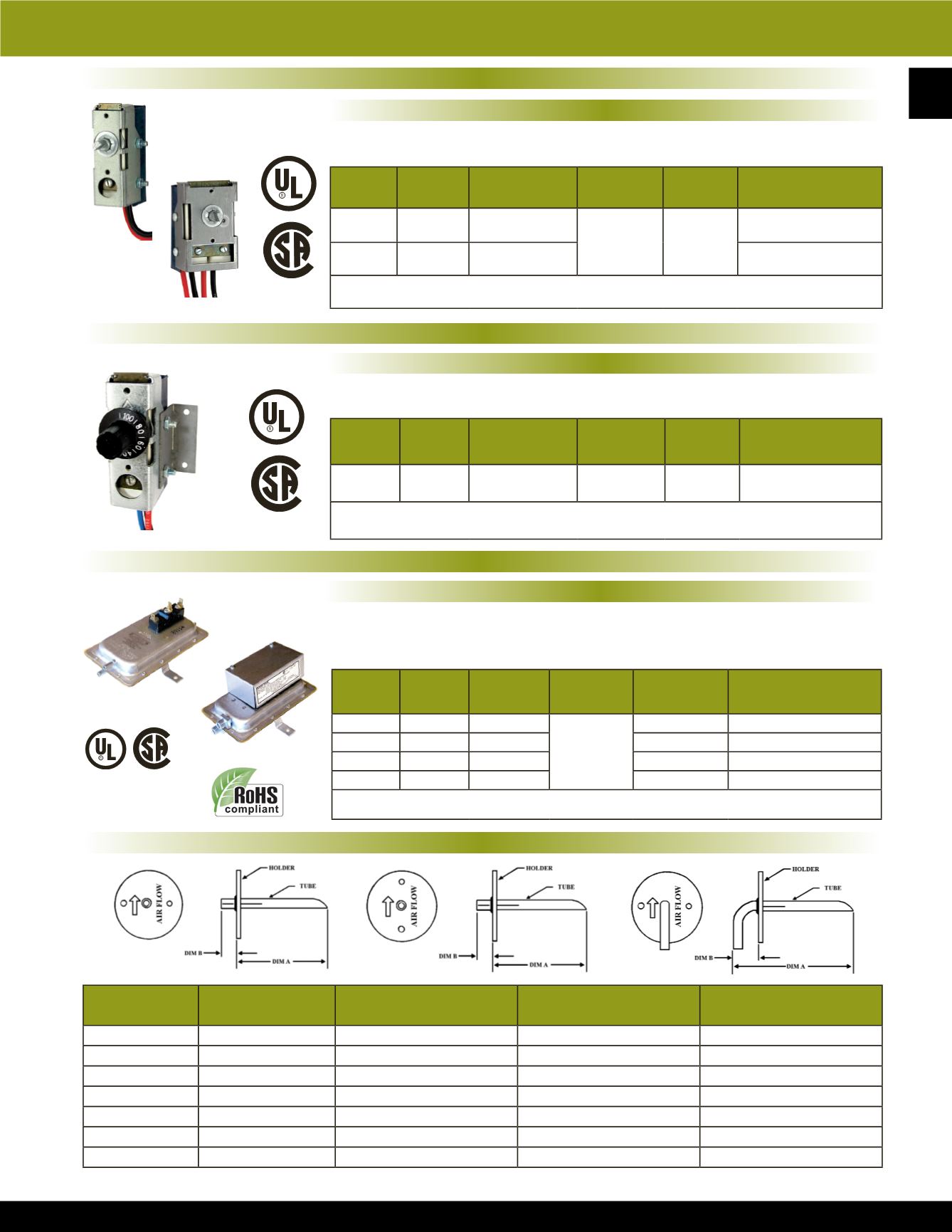

Thermostats & Controls
• Bi-Metal sensor
• HP Ratings: 3/4HP @ 125 VAC - 1.5HP @ 250-277 VAC
• 22 Amps resistive max
LB Series - Bi-Metal In-Built Thermostats
Features
LR Series - Bi-Metal Outdoor Thermostats
• Bi-Metal sensor
• HP Ratings: 3/4HP @ 125 VAC - 1.5HP @ 250-277 VAC
• 22 Amps resistive max
Features
LB110
LB210
LRD100A
RH Series - Air Flow / Differential Pressure Switch Controls
• Senses pressure or vaccum
• Adjustable or fixed pressure
• Compliant with RoHS2 Directive (2011/65/EU), that of which includes the
application exemptions outlined in Annex III of the directive.
• Automatic reset
• Tube, barbed, or compression fittings
Features
Pilot Tubes (for RH Series Air Flow / Differential Pressure Switch Controls)
1
2
3
RH1505D0
RH3, RH35, RH3A
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION VOLTAGE RANGE
CONNECTIONS
05361302 LB110
SPST Heat Only
120-277 VAC 0 - 110
o
F
6” - 14 Gauge Leads
05362002 LB210 DPST Heat Only
6” - 14 Gauge Leads
Master Carton: 16” x 14.5” x 6”, Qty 25-50, 11lbs.-14lbs. depending on model.
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION VOLTAGE RANGE
CONNECTIONS
05363002 LRD100A SPDT Heat/Cool
120-277 VAC 0 - 110
o
F 6” - 14 Gauge Leads
Master Carton: 16” x 14.5” x 6”, Qty 50, 15lbs.-16lbs. depending on model.
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
PRESSURE
SET
VOLTAGE
RANGE
CONNECTIONS
05460702 RH1505D0
Fixed
120-277 VAC
0.05” WC
Tube (both sides)
05462102
RH3
Adjustable
0.05” - 12” WC Bardbed (both sides)
05462302 RH35
Adjustable
0.05” - 2.0” WC Barbed (both sides)
05463102 RH3A Adjustable
0.05” - 12” WC Compression (both sides)
Master Carton (RH1505D0): 25.5” x 17.75” x 13.5”, Qty 48, 36lbs
Master Carton (RH3, RH35, RH3A): 15.25” x 15” x 14”, Qty 24, 28-32lbs depending on model.
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
“A” DIMENSION
“B” DIMENSION
FIGURE #
094227000
61-01730-00
4.29”
0.69”
1
094227003
61-01730-003
6.69”
0.69”
1
094228000
61-01729-00
4.00”
0.50”
2
094228020
61-01729-20
2.00”
0.50”
2
094228021
61-01729-21
1.50”
0.50”
2
094228022
61-01729-22
6.00”
0.50”
2
094228027
61-01729-27
3.50”
0.50”
3
