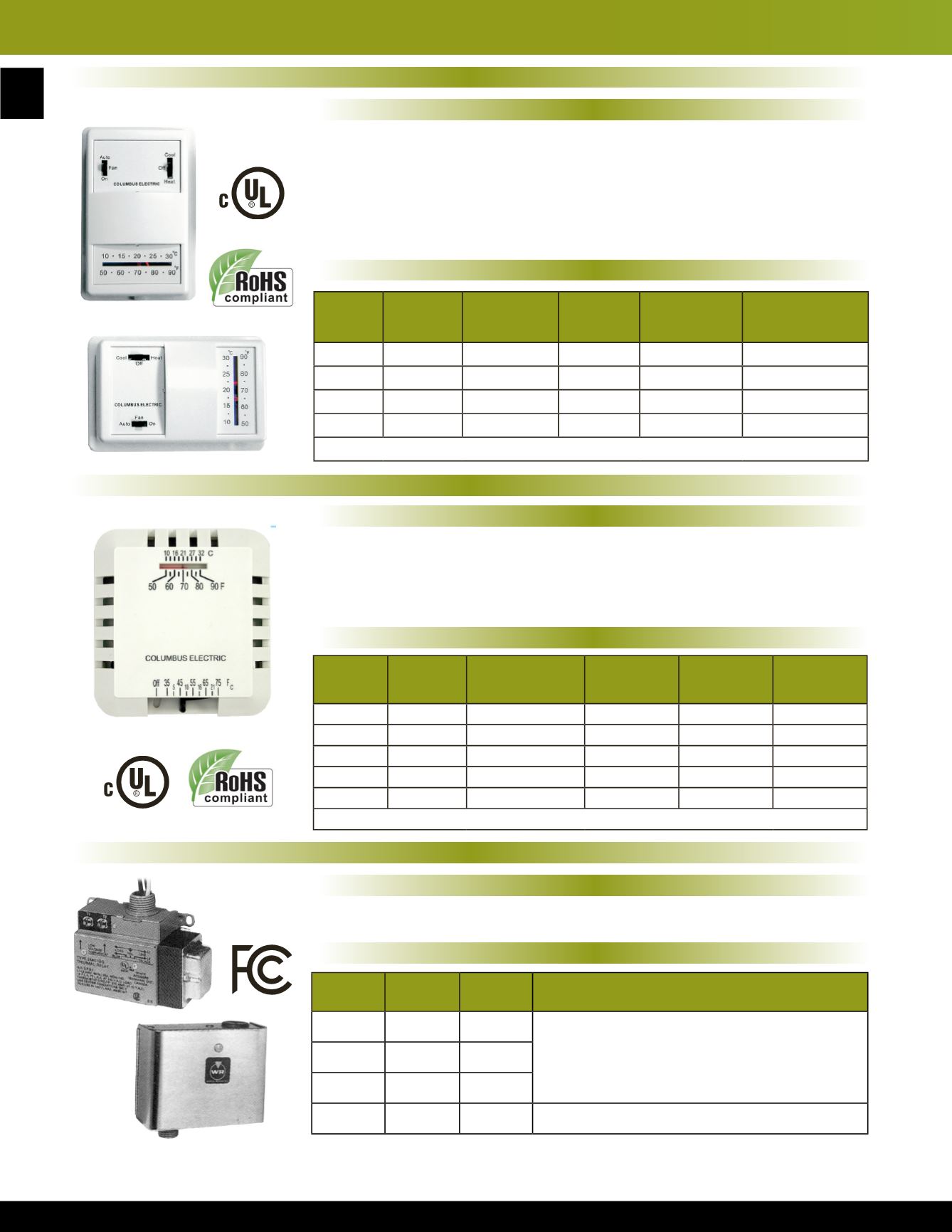

Thermostats & Controls
RK Series - Low Voltage
Features
• Fahrenheit and Celsius
• Imported to TPI Corporation
specifications
• Heat only models
• Positive off
• 2-3
o
F rated differential
• Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application
exemptions outlined in Annex III of the directive.
Low Voltage Relays
Features
• Built-In transformer
• 45 second average time delay
• Temperature range - 50 - 90
o
F
UT Series - Low Voltage
Features
• 2-3
o
F rated differential
• Anticipator (except UT9001)
• Imported to TPI Corporation
specifications
• Vertical or horizontal mounting
• Long life sealed contacts
• Does not contain Mercury
• Leveling not required
• Fahrenheit and Celsius temperature scales
• Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application
exemptions outlined in Annex III of the directive.
Standard Models
Standard Models
Standard Models
• Snap action switch
• 1/2” male conduit spud
• Does not contain Mercury
• Leveling not required
• Long life sealed contacts
Two switch unit shown. Note: 277/24V relay available, consult factory.
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION VOLTAGE
RANGE ANTICIPATOR
05260102 RK120EAA Heat Only
24VAC or MV 50
o
-90
o
F
Yes
05262002 RK124EAA Heat Only
24VAC or MV 35
o
-75
o
F
Yes
05260502 RK130EAA Heat Only
Millivolt
50
o
-90
o
F
No
05263202 RK134EAA Heat Only
Millivolt
35
o
-75
o
F
No
05261402 RKWP1AA Wall Plate
NA
NA
NA
Master Carton: 100 Pcs, 24 lbs, 16.5” x 15” x 8”
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
PRIMARY
VOLTAGE
DESCRIPTION
02600302 24A05A-1
120V
Single Switch, single throw with In-Built Transformer for remote
mounting or in a factory provided optional enclosure
02600402 24A05E-1
208V
02600502 24A01G-3
240V
02601002 24A06G-1
240V Two switch, single throw with In-Built Transformer, 25 Amps per
switch
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION VOLTAGE TERMINALS
SWITCHES
05230502 UT1001
Heat Only 24VAC or MV R &W
None
05230602 UT3001
Cool Only
24 VAC
R, Y & G Cool/Off Fan/Auto
05230702 UT8001
Heat/Cool
24 VAC RC, RH, W, Y, & G Heat/Off/Cool Fan/Auto
05231102 UT9001
Heat Only
Millivolt
R & W
None
Master Carton: 50 pcs, 17 lbs, 19” x 11.5” x 9”
