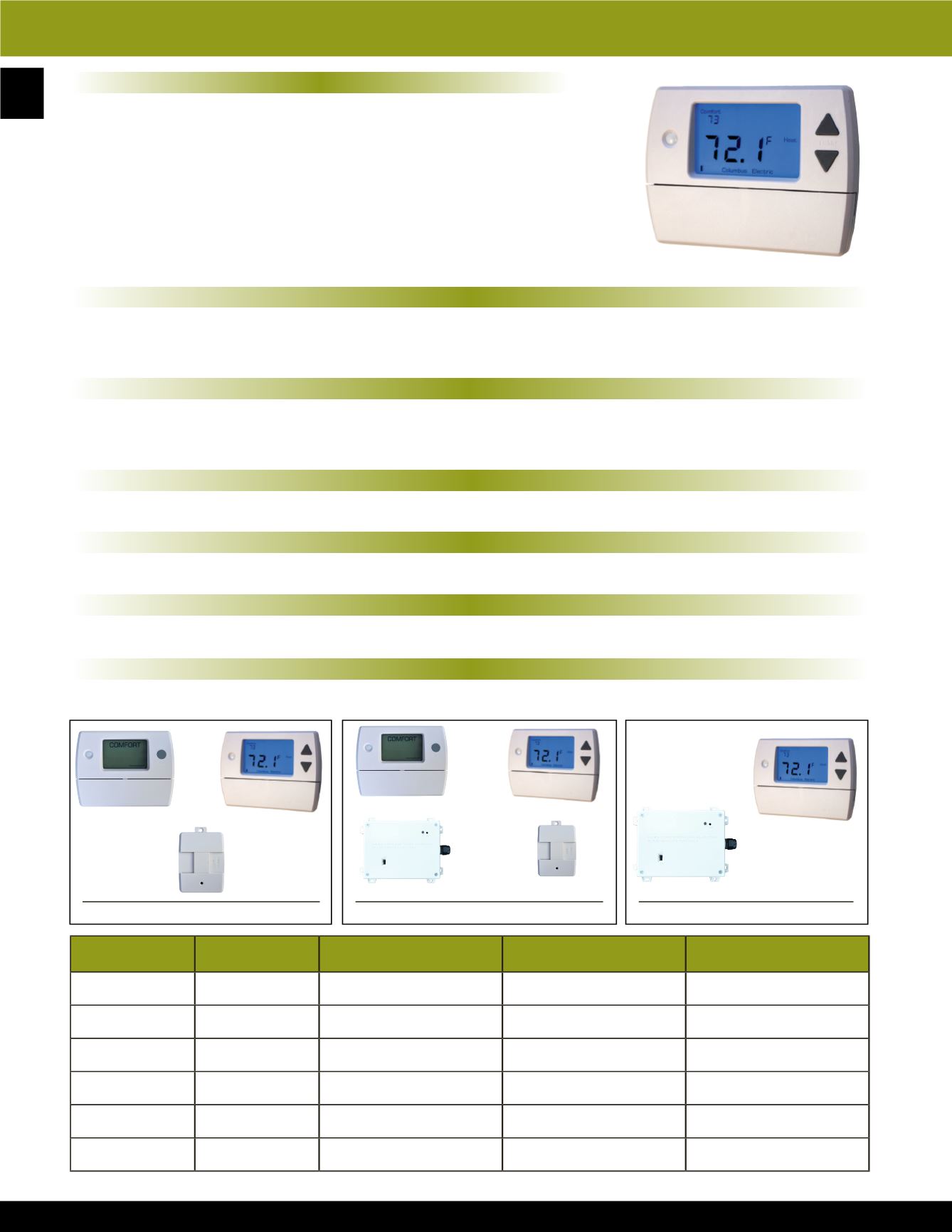

RSD Series - Clever Comfort System for Residential Applications
• The RSD Clever Comfort system for residential applications learns your schedule, and
keeps it up to date. No programming involved. On your way out the door, you simply press
the Set button on the Keypad to put the system into economy. The RSD system learns
when you normally return home, and automatically returns to the comfort setting by the
time you return.
• The minimum system includes an RSD thermostat, an RSD Keypad, and the RSD
Administrator. The RSDHW-Kit includes the RSDHW thermostat, the RSD Keypad, and
the RSD Administrator. The RSDRF Kit, includes the RSDRF Thermostat with pre-linked
RFR5 Relay, the RSD Keypad and RSD Administrator. Additional Keypads, Thermostats,
and options devices may be added to either system. A total of 10 RSD devices may be
linked to a single Administrator.
Features
RSDHW Starter Kit: Catalog# 05347102
Everything needed for a single zone system is included in this starter package. The RSDHW thermostat is connected to your 24VAC HVAC
system. The RSDK Keypad is battery operated and is mounted near the door. The RSDAAdministrator is plugged into a standard 120VAC
outlet. Additional Keypads, RSD Thermostats, and optional devices may be added to the system. Kit includes pre-linked RSDHW thermostat,
RSDK keypad, and RSDA administrator.
RSDRF Starter Kit: Catalog# 05347202
Everything needed for a single zone system is included in this starter package. The wireless RSDRF thermostat is connected to your 24VAC
HVAC system using the RFR5 Relay. The RSDK Keypad is battery operated and is mounted near the door. The RSDAAdministrator is
plugged into a standard 120VAC outlet. Additional Keypads, RSD Thermostats, and optional devices may be added to the system. Kit includes
pre-linked RSDRF thermostat, RFR5 relay, RSDK keypad, and RSDA administrator.
RSDRFK5002: Wireless Thermostat Kit: Catalog# 05347302
The RFR5002 relay is connected to the HVAC system. The RSDRF thermostat can be located in a convenient without having to run additional
wires. The RSDRFK5002 includes the RSDRF thermostat and compatible RFR5002 relay in a pre-linked kit.
RSDA1001: RSD Administrator: Catalog# 05237802
The RSDA1001 Administrator is included in both starter kits. Only one Administrator may be used for each RSD system. This item should be
bought for replacement only.
RSDK1001: RSD Keypad Catalog# 05237902
The RSDK1001 Keypad is where you set your economy periods. Normally mounted next to the main door used to enter and exit the house.
Additional Keypad may be added to your RSD system.
RSDHW1001
RSDHW1001: Hardwired Thermostat: Catalog# 05237602
The RSDHW thermostats are wired directly to the HVAC system. The RSDHW1001 model is compatible with 26 types of 24VAC systems.
Simply choose your system on setup, apply the corresponding terminal strip label and wire as you would any other thermostat.
RSDHW - KIT
RSDHW
RSDK1001
RSDA1001
RSDRF - KIT
RSDRF
RSDK1001
RSDA1001
RFR5002
RSDRFK5002
RSDRF
RFR5002
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
DESCRIPTION
VOLTAGE
CONNECTIONS
05347102
RSDHW-Kit
Hardwire thermostat starter kit
Varies by component
System connections
05347202
RSDRF-Kit
Wireless thermostat starter kit
Varies by component
System connections
05237602
RSDHW1001
RSD wired thermostat
(2) AA Batteries or 24VAC
Varies by system
05347302
RSDRFK5002
RSD wireless thermostat kit
(2) AA Batteries & 24VAC
Varies by system
05237802
RSDA1001
RSD administrator
120VAC
Wireless
05237902
RSDK1001
RSD keypad
(2) AA Batteries
Wireless
