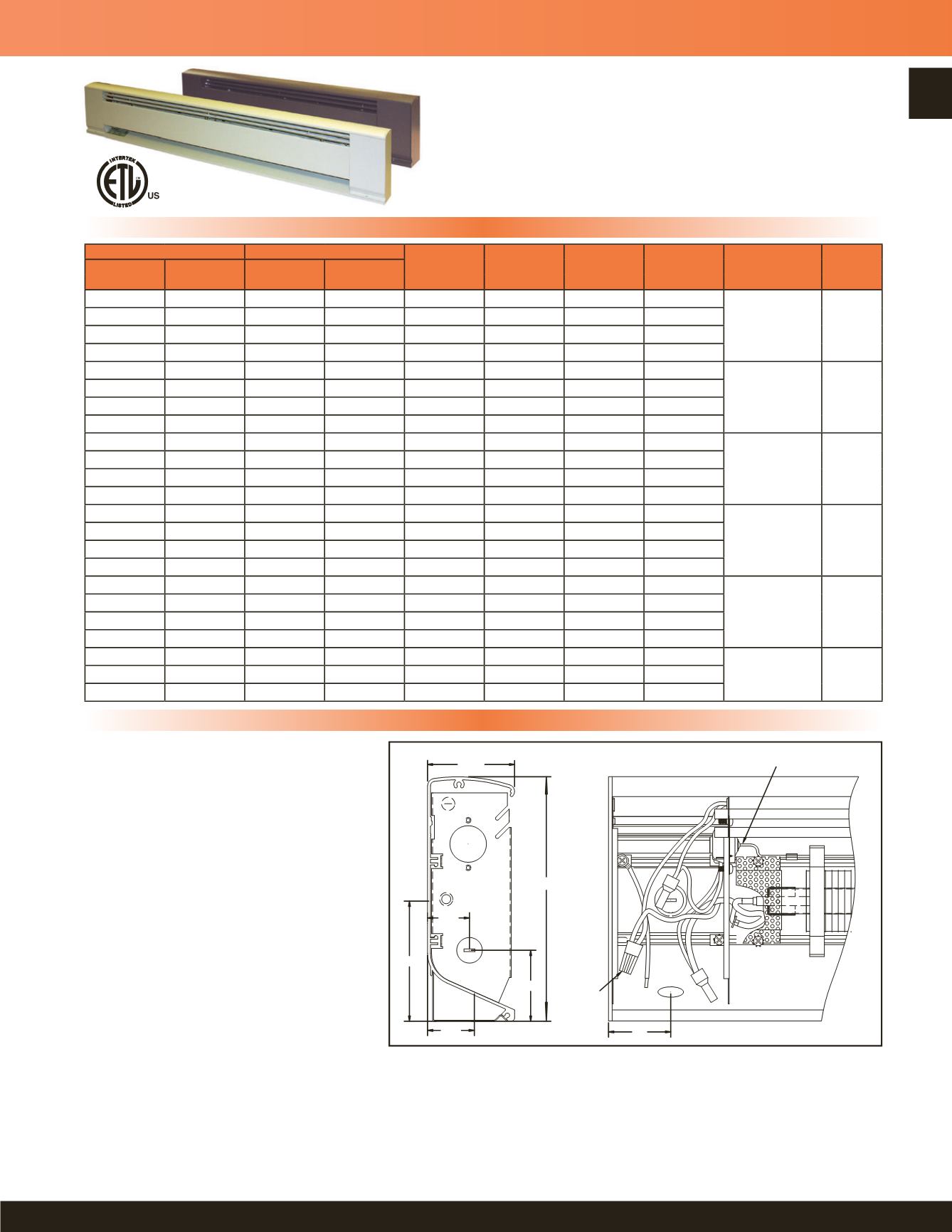

3900 Series Hydronic Electric Baseboard Heater
Standard Models
Product Specifications & Dimensions
The entire heater casing shall be
constructed of 6063 extruded Aluminum.
minimum thickness of .100” (12 gauge)Aluminum
shall be acceptable. Outlet grill shall cover entire
length of air discharge opening and be constructed
of steel. All casing and grill construction shall be
painted with high quality durable powder coated
paint.
The heating element shall be high quality
Nichrome wire encased in Magnesium Oxide and
sealed in copper tube. The heating element shall
be sealed in .312” diameter Copper tube and be
immersed in heat transfer liquid. Aluminum fins
shall be mechanically bonded to the entire heated
length of the element for even heat transfer.
Linear automatic thermal limit shall
extend the entire heater length of element and
protect heater in case of an over-temperature
condition.
Optional controls shall be mounted in junction box enclosures at either end of heater. Optional integral thermostat shall be
located in junction box with adjustment knob or for tamper-proof operation. Optional disconnect switch shall be mounted in junction box.
Optional 120 Volt or air conditioning receptacle shall be mounted in junction box.
Optional installation accessories shall include inside and outside corner sections for complete wall perimeter fit. Profile of
corners and grill shall have appearance of heat sections for continuous architectural design. Corner accessories and heater sections shall
be secured by alignment pins for easy alignment of multiple heater applications.
Permanent mount self contained unit.
Heating elements are immersed in a heat transferring liquid enclosed
by a Copper tube casing with Aluminum fins.
Powder coated 12 gauge heavy duty extruded Aluminum housing with
junction boxes located on each end of the unit.
Automatic linear limit.
Wire guard extends along the entire outlet area of the baseboard.
Commercial Brown unit has in-built wireway.
Special colors available, consult factory.
Suitable for high altitude applications.
1 Year element warranty.
Manufactured in U.S.A.
STANDARD WHITE COMMERCIAL BROWN
WATTS BTU’
S
.
VOLTS
AMPS
HEATER
LENGTH (IN.)
WT.
(LBS)
UPC MODEL
UPC MODEL
686334
686334
111416 E3904-28 111645 E3904-28C 400
1360
120
3.3
28
16
111423 F3904-28 111652 F3904-28C 400
1360
208
1.92
111430 H3904-28 111669 H3904-28C 400/300 1360/1024 240/208
1.6/1.4
111447 G3904-28 111676 G3904-28C 400/300
1360
277/240
1.4
111454 E3906-36 111683 E3906-36C 600
2048
120
5
36
22
111461 F3906-36 111690 F3906-36C 600
2048
208
2.9
111478 H3906-36 111706 H3906-36C 600/450 2048/1536 240/208
2.5/2.2
111485 G3906-36 111713 G3906-36C 600/450
2048
277/240
2.2
111492 E3910-48 111720 E3910-48C 1000
3413
120
8.3
48
27
111508 F3910-48 111737 F3910-48C 1000
3413
208
4.8
111515 H3910-48 111744 H3910-48C 1000/750 3413/2560 240/208
4.2/3.6
111522 G3910-48 111751 G3910-48C 1000/750
3413
277/240
3.6
111539 E3912-60 111768 E3912-60C 1250
4265
120
10.4
60
33
111546 F3912-60 111775 F3912-60C 1250
4265
208
6
111553 H3912-60 111782 H3912-60C 1250/938 4265/3201 240/208
5.2/4.5
111560 G3912-60 111799 G3912-60C 1250/938
4265
277/240
3.6
111577 E3915-72 111805 E3915-72C 1500
5100
120
12.5
72
41
111584 F3915-72 111812 F3915-72C 1500
5100
208
7.2
111591 H3915-72 111829 H3915-72C 1500/1125 5100/3825 240/208
6.3/5.4
111607 G3915-72 111836 G3915-72C 1500/1125
5100
277/240
5.4
111614 F3920-96 111842 F3920-96C 2000
6826
208
9.6
96
58
111621 H3920-96 111850 H3920-96C 2000/1500 6826/5100 240/208
8.3/7.2
111638 G3920-96 111867 G3920-96C 2000/1500
6826
277/240
7.2
