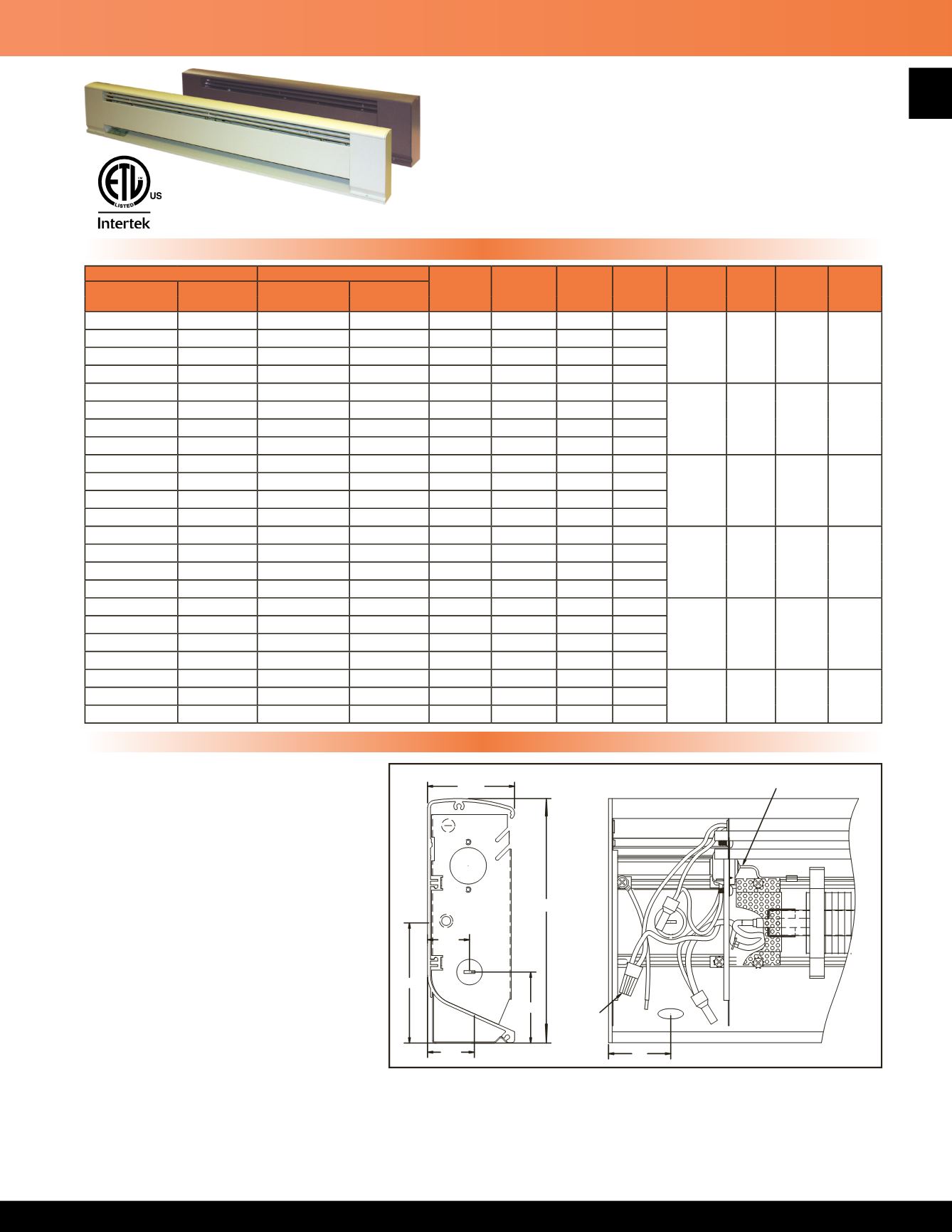

3900 Series Hydronic Electric Baseboard Heater
Standard Models
Product Specifications & Dimensions
The entire heater casing shall be
constructed of 6063 extruded Aluminum.
minimum thickness of .100” (12 gauge)Aluminum
shall be acceptable. Outlet grill shall cover entire
length of air discharge opening and be constructed
of steel. All casing and grill construction shall be
painted with high quality durable powder coated
paint.
The heating element shall be high quality
Nichrome wire encased in Magnesium Oxide and
sealed in copper tube. The heating element shall
be sealed in .312” diameter Copper tube and be
immersed in heat transfer liquid. Aluminum fins
shall be mechanically bonded to the entire heated
length of the element for even heat transfer.
Linear automatic thermal limit shall
extend the entire heater length of element and
protect heater in case of an over-temperature
condition.
Optional controls shall be mounted in junction box enclosures at either end of heater. Optional integral thermostat shall be
located in junction box with adjustment knob or for tamper-proof operation. Optional disconnect switch shall be mounted in junction box.
Optional 120 Volt or air conditioning receptacle shall be mounted in junction box.
Optional installation accessories shall include inside and outside corner sections for complete wall perimeter fit. Profile of
corners and grill shall have appearance of heat sections for continuous architectural design. Corner accessories and heater sections shall
be secured by alignment pins for easy alignment of multiple heater applications.
• Permanent mount self contained unit.
• Heating elements are immersed in a heat transferring liquid enclosed
by a Copper tube casing with Aluminum fins.
• Powder coated 12 gauge heavy duty extruded Aluminum housing with
junction boxes located on each end of the unit.
• Automatic linear limit.
• Wire guard extends along the entire outlet area of the baseboard.
• Commercial Brown unit has in-built wireway.
• Special colors available, consult factory.
• Suitable for high altitude applications.
• 1 Year element warranty.
• Made in U.S.A.
STANDARD WHITE
COMMERCIAL BROWN
WATTS BTU’
s
.
VOLTS AMPS
HEATER
LENGTH
(IN.)
WT.
(LBS)
WHITE
LIST
BROWN
LIST
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
01114102
E3904-28
01116402
E3904-28C 400
1360
120
3.3
28
16
372
396
01114202
F3904-28
01116502
F3904-28C 400
1360
208
1.92
01114302
H3904-28
01116602
H3904-28C 400/300 1360/1024 240/208 1.6/1.4
01114402
G3904-28
01116702
G3904-28C 400/300 1360 277/240 1.4
01114502
E3906-36
01116802
E3906-36C 600
2048
120
5
36
22
427
453
01114602
F3906-36
01116902
F3906-36C 600
2048
208
2.9
01114702
H3906-36
01117002
H3906-36C 600/450 2048/1536 240/208 2.5/2.2
01114802
G3906-36
01117102
G3906-36C 600/450 2048 277/240 2.2
01114902
E3910-48
01117202
E3910-48C 1000
3413
120
8.3
48
27
497
526
01115002
F3910-48
01117302
F3910-48C 1000
3413
208
4.8
01115102
H3910-48
01117402
H3910-48C 1000/750 3413/2560 240/208 4.2/3.6
01115202
G3910-48
01117502
G3910-48C 1000/750 3413 277/240 3.6
01115302
E3912-60
01117602
E3912-60C 1250
4265
120
10.4
60
33
564
614
01115402
F3912-60
01117702
F3912-60C 1250
4265
208
6
01115502
H3912-60
01117802
H3912-60C 1250/938 4265/3201 240/208 5.2/4.5
01115602
G3912-60
01117902
G3912-60C 1250/938 4265 277/240 3.6
01115702
E3915-72
01118002
E3915-72C 1500
5100
120
12.5
72
41
634
679
01115802
F3915-72
01118102
F3915-72C 1500
5100
208
7.2
01115902
H3915-72
01118202
H3915-72C 1500/1125 5100/3825 240/208 6.3/5.4
01116002
G3915-72
01118302
G3915-72C 1500/1125 5100 277/240 5.4
01116102
F3920-96
01118402
F3920-96C 2000
6826
208
9.6
96
58
753
810
01116202
H3920-96
01118502
H3920-96C 2000/1500 6826/5100 240/208 8.3/7.2
01116302
G3920-96
01118602
G3920-96C 2000/1500 6826 277/240 7.2
