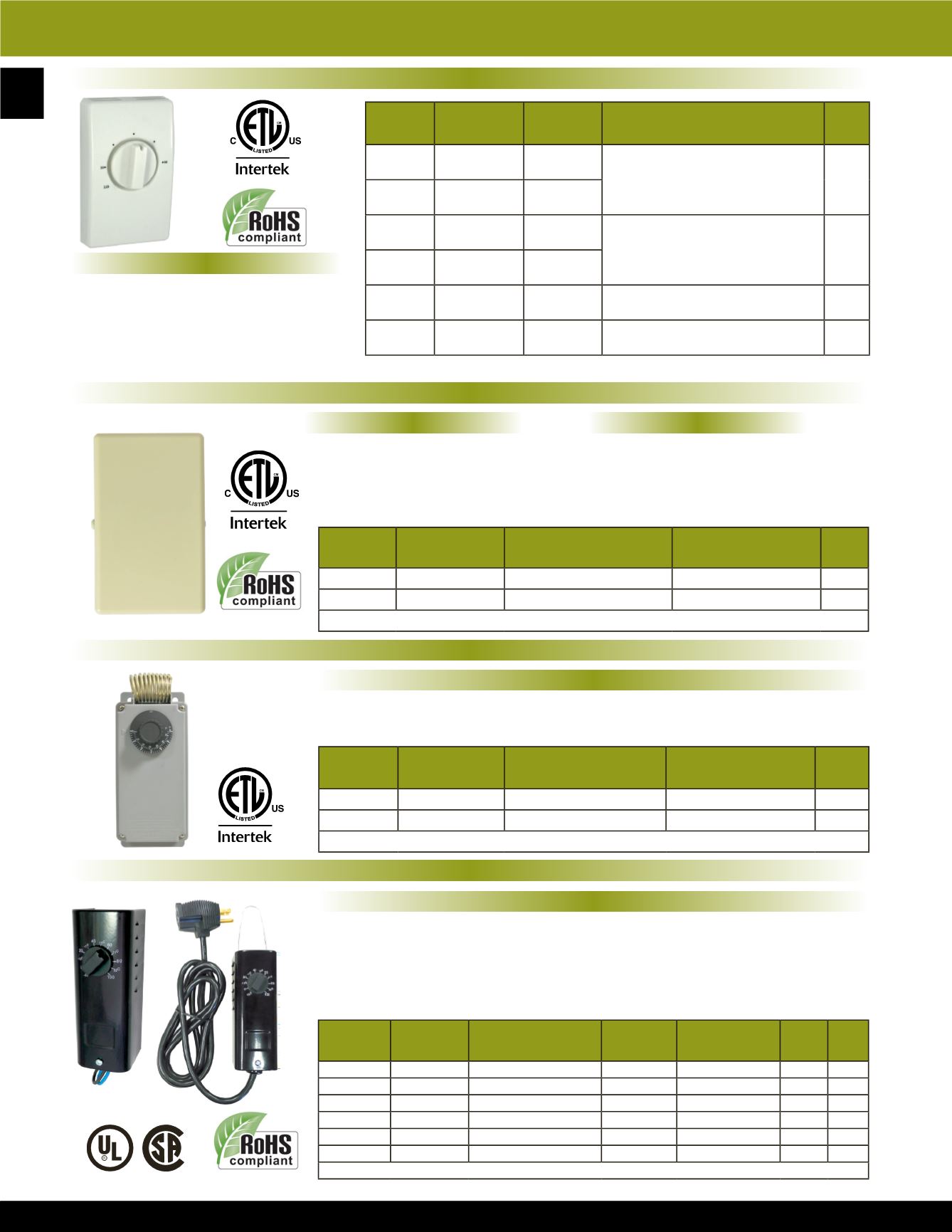

Thermostats & Controls
TW Series
• Single and double pole models
• Wire leads
• Tamper resistant
• Imported to TPI Corporation specifications
• Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application
exemptions outlined in Annex III of the directive.
Features
Load Rating
• 22 Amps resistive @ 120 VAC
• 18 Amps resistive @ 277 VAC
Washdown Series
• Single and double pole models
• Rain tight NEMA 4X rating
• Stainless steel hardware
Features
• Coil capillary temperature sensor
• Made in U.S.A. with domestic and
foreign components.
Industrial Series
• Coil capillary (CKT) models
• Bi-Metal models (KT)
• Rugged steel case
• SPST & SDPT models
• Imported to TPI Corporation specifications
• Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application
exemptions outlined in Annex III of the directive. (KT models only)
• Hard wired models rated for 22A
resistive @125-250 VAC
• Corded models rated for 13A
resistive @125VAC
Features
• Shadow White or Ivory
• Single pole and double pole
• DP models include positive off
• 22 Amps, 277 Volts AC
• Heat Only / Range: 50-90°F
• Imported to TPI Corporation specifications
• Compliant with RoHS2 Directive (2011/65/EU), that of which includes the application exemptions outlined in Annex III of the directive.
Features
2000 Series - Line Voltage
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION
TEMPERATURE SCALE
LIST
05020002
TW145
SP, Beige with Leads
Tamper Resistant / 50-90°F
63
05020102
TW146
DP, Beige with Leads
Tamper Resistant / 50-90°F
75
Master Carton: 25 Pcs, 12 lbs. (varies slightly by model), 16” x 14” x 5.5”
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION
TEMPERATURE SCALE
LIST
05234202
TW155A
SP, Rain tight
40-110
o
F
191
05234302
TW255A
DP, Rain tight
40-110
o
F
223
22 Amps @ 120/250/277 VAC, 5” x 5” x3” Case
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION RANGE CONNECTIONS SCALE
LIST
05340402 CKTD110 SPDT Heat or Cool
40 - 110
o
F
Wire Leads
F
118
05340802
KT110
SPST Heat Only
-10 - 100
o
F Wire Leads
C & F
50
05341002
KT121
SPST Heat Only
-10 - 100
o
F 6’ Cord/Plug C & F
55
05341702 KTD110
SPDT Heat or Cool
-10 - 100
o
F Wire Leads
C & F
50
05343602 KTO110
SPST Cool Only
-10 - 100
o
F Wire Leads
C & F
50
05342102 KTO121
SPST Cool Only
-10 - 100
o
F 6’ Cord/Plug C & F
55
Master Carton: 13.75” x 14” x 9”, Qty 9-12, 14lbs.-16lbs. depending on model
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
COLOR
DESCRIPTION
LIST
05028402 S2022H10AA Shadow
White
Single Pole with leads, 22 Amp
38
05024302 S2022H10AB Ivory
05028502 D2022H10BA Shadow
White
Double pole with leads, 22 Amp
49
05024402 D2022H10BB Ivory
05029102 S2025H10AA Shadow
White
Single Pole with leads, 25 Amp
55
05029202 D2025H10BA Shadow
White
Double pole with leads, 25 Amp
64
