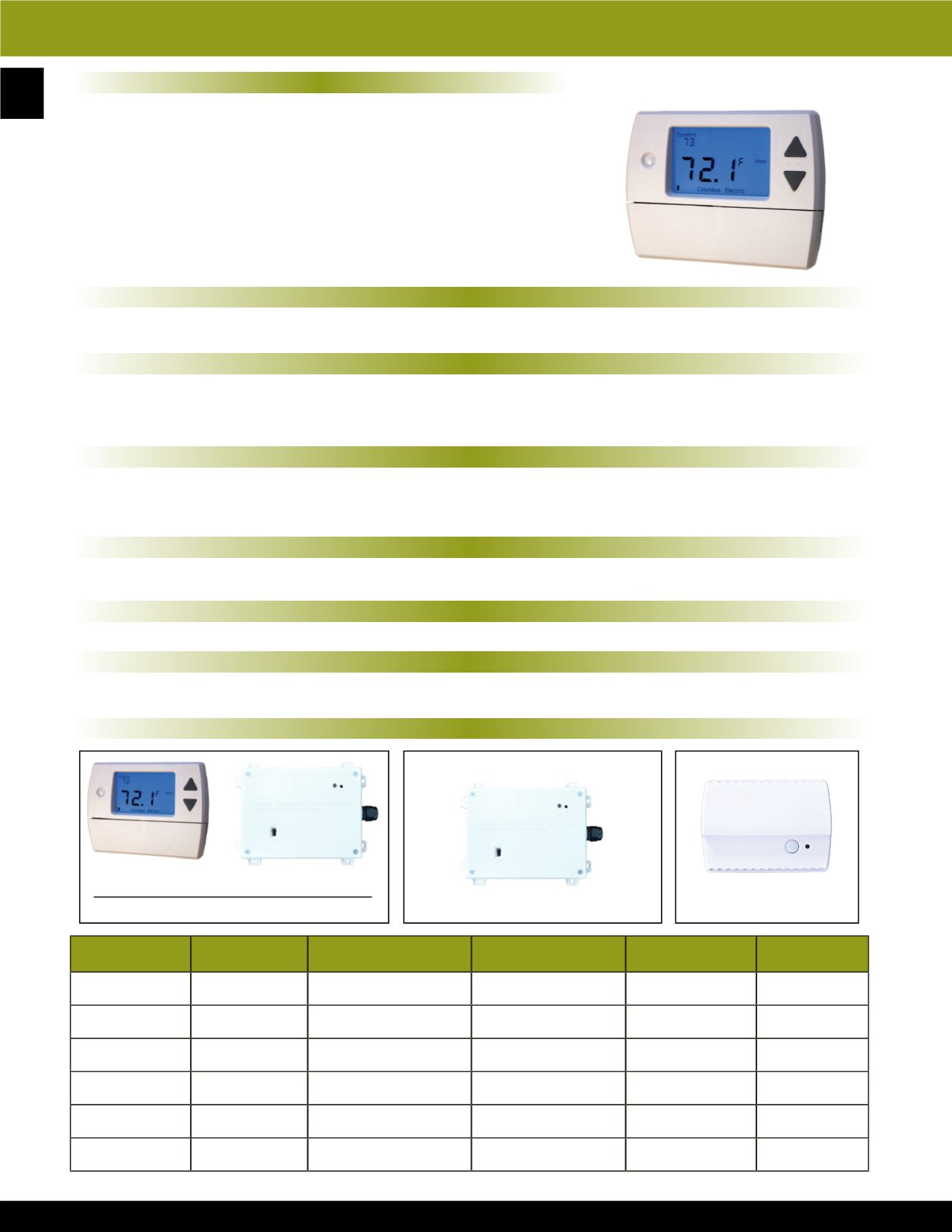

SD Series - Clever Comfort Thermostat for Commercial Applications
• The SD Series of Clever Comfort Thermostats are self learning setback thermostats
designed specifically for commercial and industrial applications. Unlike most setback
thermostats this thermostat doesn’t require programming. With the use of a motion sensor,
it learns your schedule, and changes automatically with schedule changes. Regardless of
your schedule, it automatically returns to economy after you leave.
• The Clever Comfort Smart Recovery feature returns the system to the comfort temperature
before you arrive. The holiday feature automatically returns to economy setting on any day
that no-one shows up.
• Compatible with single and multistage equipment up to 4 stages of Heat, 4 Stages of Cool,
or any combination of Heat and Cool up to 4 stages, including 2 Stage Heat, 1 Stage Cool
Heat pumps.
Features
Fully Automatic Setback!
No Programming!
SDHW1001: Hardwired Thermostat: Catalog# 05236402
The SDHW thermostats are wired directly to the HVAC system. The SDHW1001 model is compatible with 26 types of 24VAC systems.
Simply choose your system on setup, apply the corresponding terminal strip label and wire as you would any other thermostat.
SDHW1002: E2 Extended Energy Saver Hardwired Thermostat: Catalog# 05347002
The SDHW E2 thermostat extends the savings over the standard SDHW1001 by limited temperature ranges, and incorporating a minimum
offset of 5 degrees. The SDHW1002 does not allow heat mode temperature settings above 74 degrees or cool mode settings below 72 degrees.
This allows employers to give their employees control of the temperature setting while preventing abuse. NOTE: Customized temperature
ranges, differentials, dead bands, etc...are available through our SD customization program.
SDRF1001: Wireless Thermostat: Catalog# 05236502
The SDRF thermostat is wirelessly connected to HVAC system when combined with one of TPI’s compatible RF relays. The SDRF1001 when
combined with the RFR5002 low voltage relay incorporates all the features and system compatibility of the SDHW1001 thermostat, while
allowing the thermostat to be located in the best location. NOTE: The SDRFK5002 incorporates the SDRF1001 thermostat and the RFR5002
relay in a single pre-linked kit.
SDRFK5002: Wireless Thermostat Kit: Catalog# 05346902
The SDRFK5002 includes both the SDRF thermostat and the compatible RFR5002 Relay in a pre-linked kit. The RFR5002 relay is connected
to the HVAC system. The SDRF thermostat can be located in a convenient location without having to run additional wires.
RFR5002: Wireless Relay Catalog# 05346702
The RFR5002 is the low voltage wireless RF relay to be used with the SDRF thermostat.
SDRMT001 Remote Motion and Temperature Sensors: Catalog# 05346802
The SDRMT001 incorporates both the motion and temperature sensors for the SD and RSD series of thermostats. The sensors can be remoted
up to 25’ using 5 conductor shielded wire. Either of the sensors may be used individually without connecting the other.
Standard Models
SDHW1001
SDRF1001
RFR5002
SDRFK5002 - KIT
SDRMT001
RFR5002
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
DESCRIPTION
VOLTAGE
CONNECTIONS
LIST
05236402
SDHW1001
SD Wired Thermostat
2 AA Batteries or 24VAC Varies by System
387
05347002
SDHW1002
Extend Energy Saver Model
2 AA Batteries or 24VAC Varies by System
438
05236502
SDRF1001
SD Wireless Thermostat
2 AA Batteries
Wireless
313
05346902
SDRFK5002
SD Wireless Kit
2 AA & 24VAC
Varies by System
438
05346702
RFR5002
SD Wireless Relay
24VAC
Varies by System
125
05346802
SDRMT001
Wired Remote Sensors
Powered from Thermostat
Connects to Stat
125
