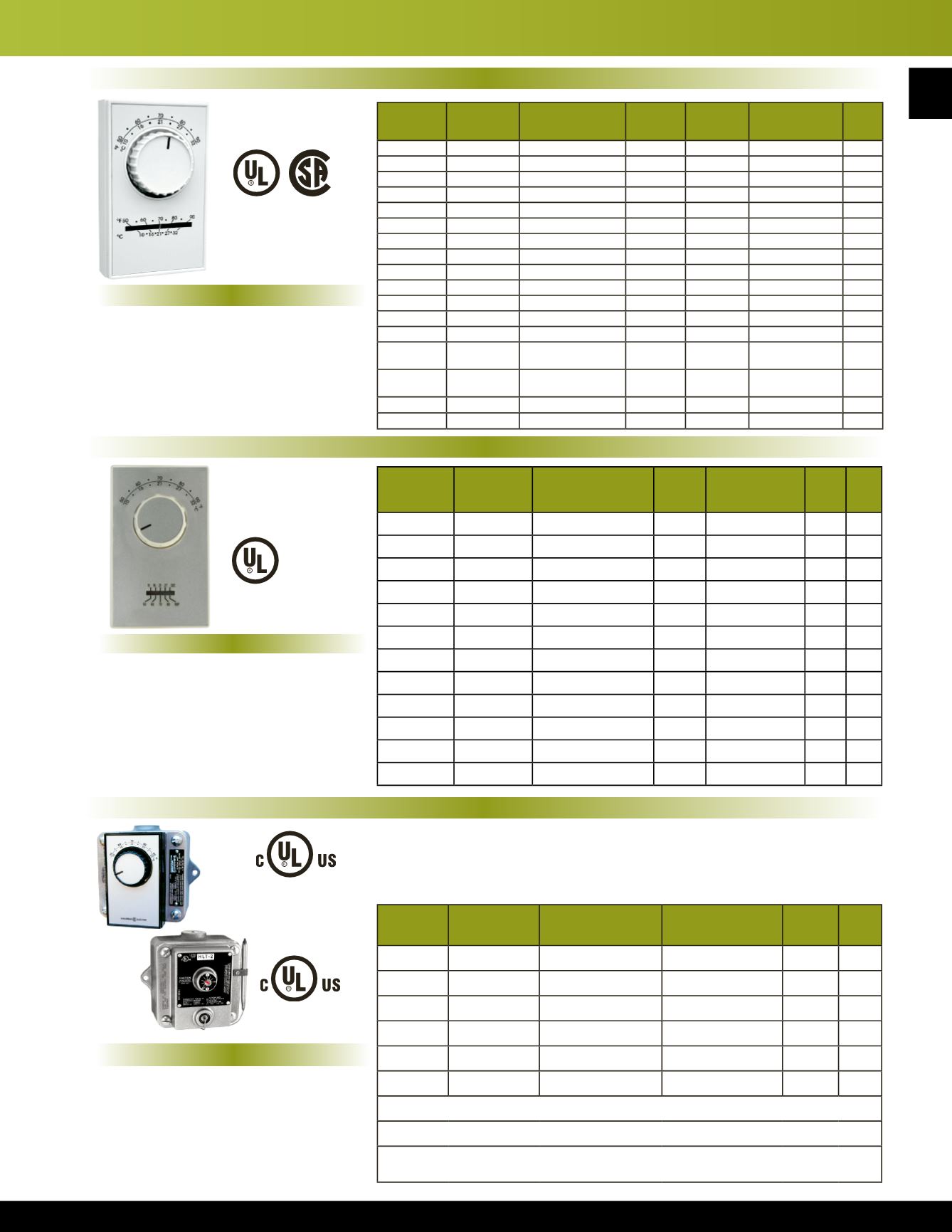

Thermostats & Controls
• Single pole and double pole
• Heat only, cool only, & heat or cool
• DP models include positive off
• Celsius and Fahrenheit temperature scale
• Heating: 22A@120-277VAC resistive
• Cooling: 3/4HP @ 125VAC / 1.5HP @
250/277 VAC
• Range: 50-90°F (unless otherwise noted)
• Made in U.S.A.
• SPDT & DPDT Models
• Heat or cool compatible
• Celsius and Fahrenheit temperature scale
• Bi-Metal or capillary sensor
• Snap action switch
• Casting tapered top and bottom for 3/4” conduit
• 1/2” thick cast Aluminum housing
• Dimension 5-3/4” x 6-3/8” x 5.57”
• Made in U.S.A.
Features
Features
ET5 Series - Line Voltage
EPET Series and HLT Series Hazardous Location
Motor Rating (full load): 3/4 HP @ 125V, 1-1/2 HP @250V
Pilot Duty Rating 125VA@ 24VAC
NEMA Class Seven Div. 1 Approved
Class I Group C & D, Class II Group E, F, & G
Not rated for Group B
ET9 Series - Line Voltage
• Single pole and double pole
• Heat only, cool only, & heat or cool
• DP models include positive off
• Celsius and Fahrenheit temperature scale
• Thermometer standard
• Heating: 22A@120-277VAC resistive
• Cooling: 3/4HP @ 125VAC / 1.5HP @
250/277 VAC
• Range: 50-90°F (unless otherwise noted)
• Imported to TPI Specifications.
Features
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION LOAD RATINGS RANGE
LIST
05380702 EPETD8D DPDT - Bi-Metal
22A@120-277VAC 50-90
o
F
359
05381002 EPETD8S
SPDT - Bi-Metal
22A@120-277VAC 50-90
o
F
359
05280702 EPETP8D DPDT - Bi-Metal
22A@120-480VAC 50-90
o
F
359
05280602
EPETP8S
SPDT - Bi-Metal
22A@120-480VAC 50-90
o
F
359
05231502
HLT-1
SPDT - Capillary 22A@120-277VAC 40-110
o
F
515
05231602
HLT-2
DPDT - Capillary 22A@120-277VAC 40-110
o
F
544
Master ctn: 4 pcs, 24 lbs (varies slightly by model), 16” x 14.5” x 6”
EPET Series incorporate plastic knob & Bi-Metal Sensor housing.
HLT Series incorporates screwdriver temperature adjustment slot and all metal housing. External
bulb and capillary sensor.
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION RANGE CONNECTIONS POS.
OFF
LIST
05238302 AET9DWTS* DPST Heat Only
50-90
o
F Wire Leads
Yes
41
05238402 AET9SWTS* SPST Heat Only
50-90
o
F Wire Leads
No
37
05238502 ET9DTS
DPST Heat Only 50-90
o
F Terminals
Yes
32
05238602 ET9D4TS DPST Heat Only 35-75
o
F Terminals
Yes
33
05238702 ET9DWTS DPST Heat Only 50-90
o
F Wire Leads
Yes
33
05238802 ET9MTS 2 Stage Heat Only 50-90
o
F Terminals
No
35
05238902
ET9STS
SPST Heat Only 50-90
o
F Terminals
No
28
05239002 ET9S4TS SPST Heat Only 35-75
o
F Terminals
No
30
05239102 ET9SRTS SPST Cool Only 50-90
o
F Terminals
No
28
05239202 ET9SWTS SPST Heat Only 50-90
o
F Wire Leads
No
32
05239302 ETD9MTS*
2 Stage Heat,
1 Stg Cool
50-90
o
F Terminals
No
35
05239402 ETD9STS SPDT Heat or Cool 50-90
o
F Terminals
No
30
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
DESCRIPTION RANGE THERMO. CONNECTIONS
LIST
05387202 AET5DWS* DPST Heat Only
50-90
o
F No
Wire Leads
50
05387302 AET5SWS* SPST Heat Only
50-90
o
F No
Wire Leads
45
05388802 ET5DS DPST Heat Only 50-90
o
F No
Terminals
39
05387402 ET5D4S DPST Heat Only 35-75
o
F No
Terminals
40
05387502 ET5DTS DPST Heat Only 50-90
o
F Yes
Terminals
41
05387602 ET5DWS DPST Heat Only 50-90
o
F No
Wire Leads
40
05387702 ET5MS 2 Stage Heat Only 50-90
o
F No
Terminals
43
05387802 ET5SS SPST Heat Only 50-90
o
F No
Terminals
34
05387902 ET5S4S SPST Heat Only 35-75
o
F Yes
Terminals
37
05388002 ET5SRS SPST Cool Only 50-90
o
F No
Terminals
34
05388902 ET5SRTS SPST Cool Only 50-90
o
F Yes
Terminals
37
05388102 ET5STS SPST Heat Only 50-90
o
F Yes
Terminals
37
05388202 ET5SWS SPST Heat Only 50-90
o
F No
Wire Leads
39
05388302 ETD5MS 2 Stage Heat,
1 Stg Cool
50-90
o
F No
Terminals
43
05388402 ETD5MTS 2 Stage Heat,
1 Stg Cool
50-90
o
F Yes
Terminals
45
05388502 ETD5SS SPDT Heat or Cool 50-90
o
F No
Terminals
37
05388602 ETD5STS SPDT Heat or Cool 50-90
o
F Yes
Terminals
39
