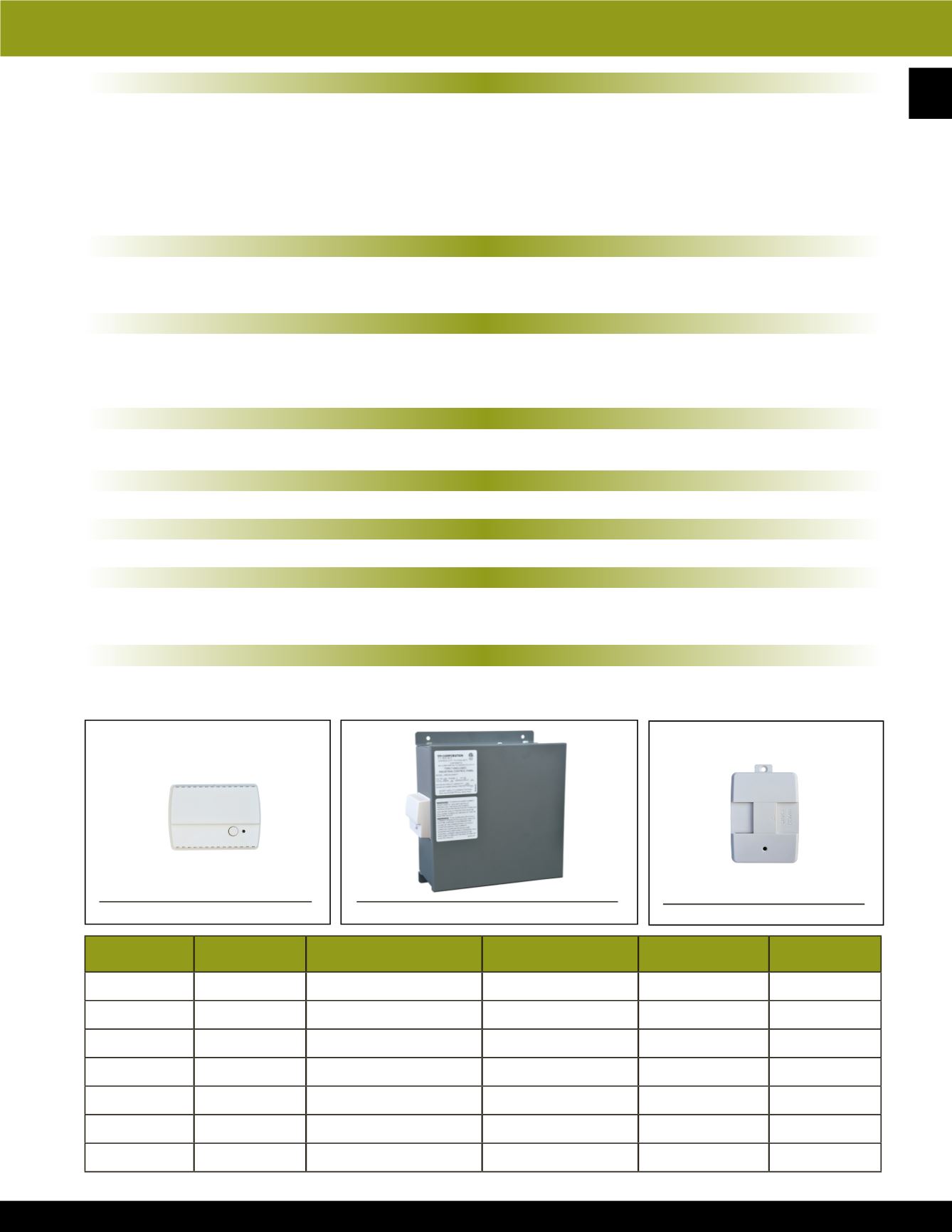

RSD Series - Clever Comfort System for Residential Applications
• The RSD Clever Comfort system for residential applications has been designed for expansion. The starter kits on the previous page include
the minimal components. Up to 8 additional devices may be added to the starter system. These include additional RSD Thermostats, and
RSD Keypads (shown on previous page). Optional devices include the RSDMS1001 Wireless Motion Sensor and the RSDWH1001 Water
Heater Control.
• Also available are replacement components. These include the RSDA1001 Administrator, The RSDRF1001 Thermostat, the RFR5002
Wireless relay (for use with either the RSDRF thermostat or the SDRF thermostat), and the SDRMT001 wired remote temperature and
motion control (wired to either the SD or RSD thermostats).
Optional Control Features
RSDMS1001 - RSD Wireless Remote Motion Sensor: Catalog# 05347402
The RSDMS1001 wireless remote motion sensor is used wherever people may enter the house other than the main entrance where the Keypad
is located. This may include a back door, garage door, etc…Whenever motion is detected at the location, it wirelessly transmits to the system
that there is someone home, and if not already in the comfort mode it will switch to comfort.
RSDWH1001 - RSD Water Heater Control: Catalog# 05347502
The RSDWH1001 control is wired to your gas or electric water heater to turn it off whenever the system is in the economy mode, and auto-
matically turns on 1/2 hour before the system is scheduled to return to comfort. If used with a gas water heater, an additional 24VAC trans-
former may be required to power the RSDWH1001. If used with an electric water heater, it must be installed with a separate transformer, and
contactor. Note: The RSDWH-240Kit includes a transformer and contractor for use on 208 & 240VAC systems with loads up to 50AMPS.
RSDRF1001 - Wireless Thermostat: Catalog# 05237702
The SDRF thermostats are wirelessly connected to the HVAC system with use of a TPI compatible RF relay such as the RFR5002 relay below.
RFR5002 - Wireless Relay: Catalog# 05346702
The RFR5002 is the low voltage wireless RF relay to be used with the RSDRF thermostat.
SDRMT001 - Remote Motion and Temperature Sensors: Catalog# 05346802
The SDRMT001 incorporates both the motion and temperature sensors for the SD and RSD series of thermostats.
The sensors can be remoted up to 25’ using 5 conductor shielded wire. Either of the sensors may be used individually without connecting the
other.
RSDWH-240Kit - RSD Water Heater Control for 240VAC Water Heaters: Catalog# 05347602
The RSDWH-240Kit includes a 208/240VAC transformer and 50 Amp DPST contactor to turn off an electric water heater whenever the system
is in the economy mode, and automatically turns on 1/2 hour before the system is scheduled to return to comfort.
SDA1001 - SD Administrator: Catalog# 05347702
The SDA1001 Administrator allows for the residential products to be used for commercial applications. Just like the SD thermostats, if no
movement is detected in an hour, it will setback the entire system. Incorporates smart recovery.
RSDWH-240Kit
RSDWH1001
SDA1001
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
DESCRIPTION
VOLTAGE
CONNECTIONS
LIST
05347402
RSDMS1001
Wireless motion sensor
(2) AA Batteries
Wireless
220
05347502
RSDWH1001
Water heater control
24VAC
4-wire
225
05347602
RSDWH-240Kit
Electric water heater control
240VAC
4-wire
565
05347702
RSDRF1001
RSD wirelesss thermostat
(2) AA Batteries
Wireless
313
05346702
RFR5002
SD wireless relay
24VAC
Varies by system
125
05347702
SDRMT001
Wired remote sensors
Powered from thermostat
Connects to thermostat
125
05347702
SDA1001
Commercial administrator
120VAC
Wireless to system
300
