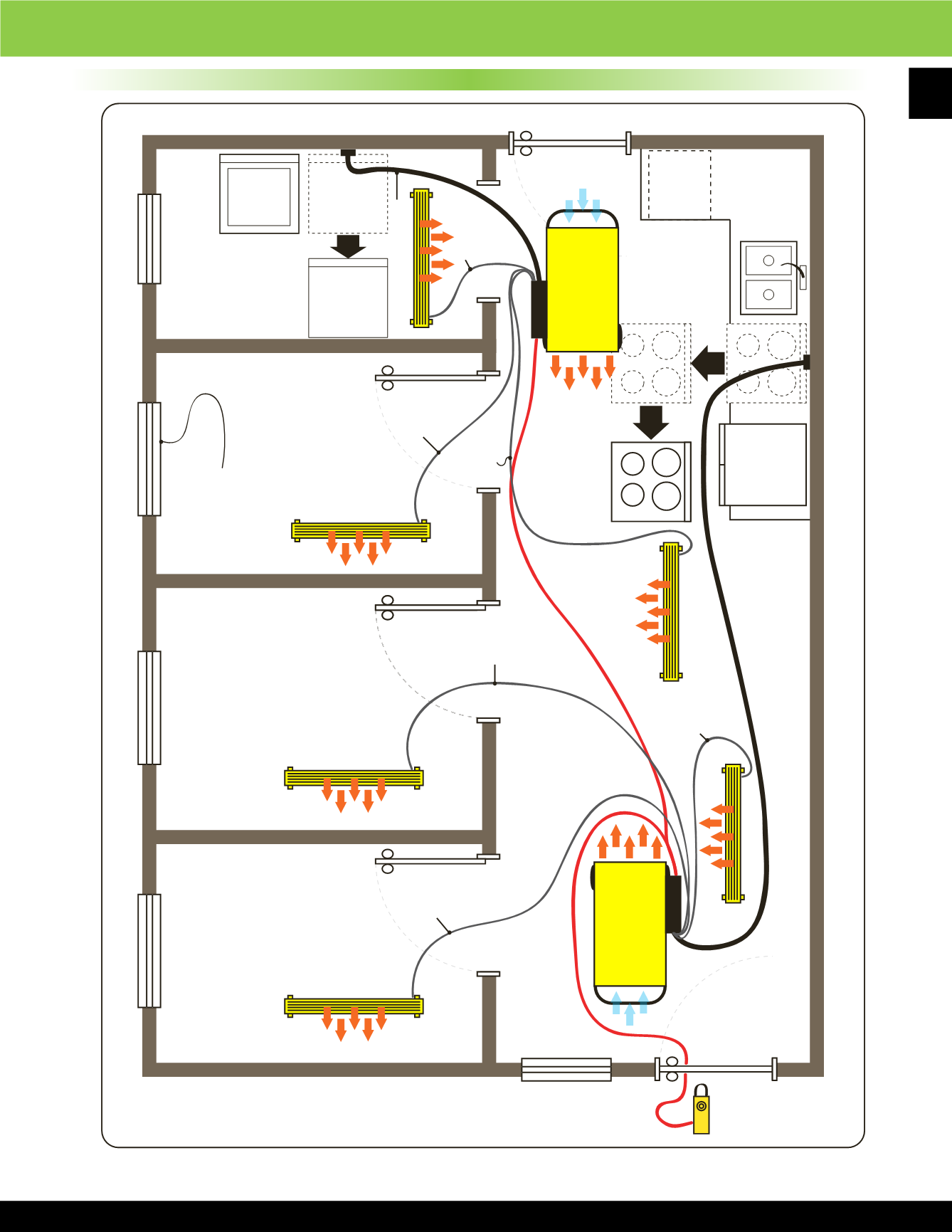

Move dryer,
connect 30 Amp unit
to 30 Amp dryer power
supply.
Seal all exterior
windows and doors
before extermination
process begins.
Move
range/electric
stove, connect
50 Amp unit to
50 Amp range
power supply.
Washer
Dryer
30 Amp Power Supply
30
AMP
TAT Base
Unit
Stove/Range
50
AMP
TAT Base
Unit
Heater Line 1
Heater Line 2
Heater Line 3
Heater Line 1
Heater Line 3
Heater Line 2
Timer Control Line
Timer Control
Unit
50 Amp Power Supply
Master/Slave Unit Control Tether.
Use only if two systems are used together
Diagram is for demonstrative purposes only and does not represent any actual structure or living environment. Two units may not be required for all
situations, exterior climate, structure insulation, electrical service, and square footage all factor into effective treatment with this system.
Thermal Area Treatment Heaters
How It Works:
