25
25”
11-11/16”
4-1/16”
Knockouts
12”
24”
44”
56”
1/4”Dia. Mounting Holes
3/5 KW = 33”
6/10 KW = 46”
1/2”, 3/4”Conduit
1/2”, 3/4”Conduit
1/2”, 1-1/2”Conduit
2-3/4”
2-3/8”
3-3/8”
9“
25”
1-9/16”
3“
Mounting Hole Locations
(Back View of Unit)

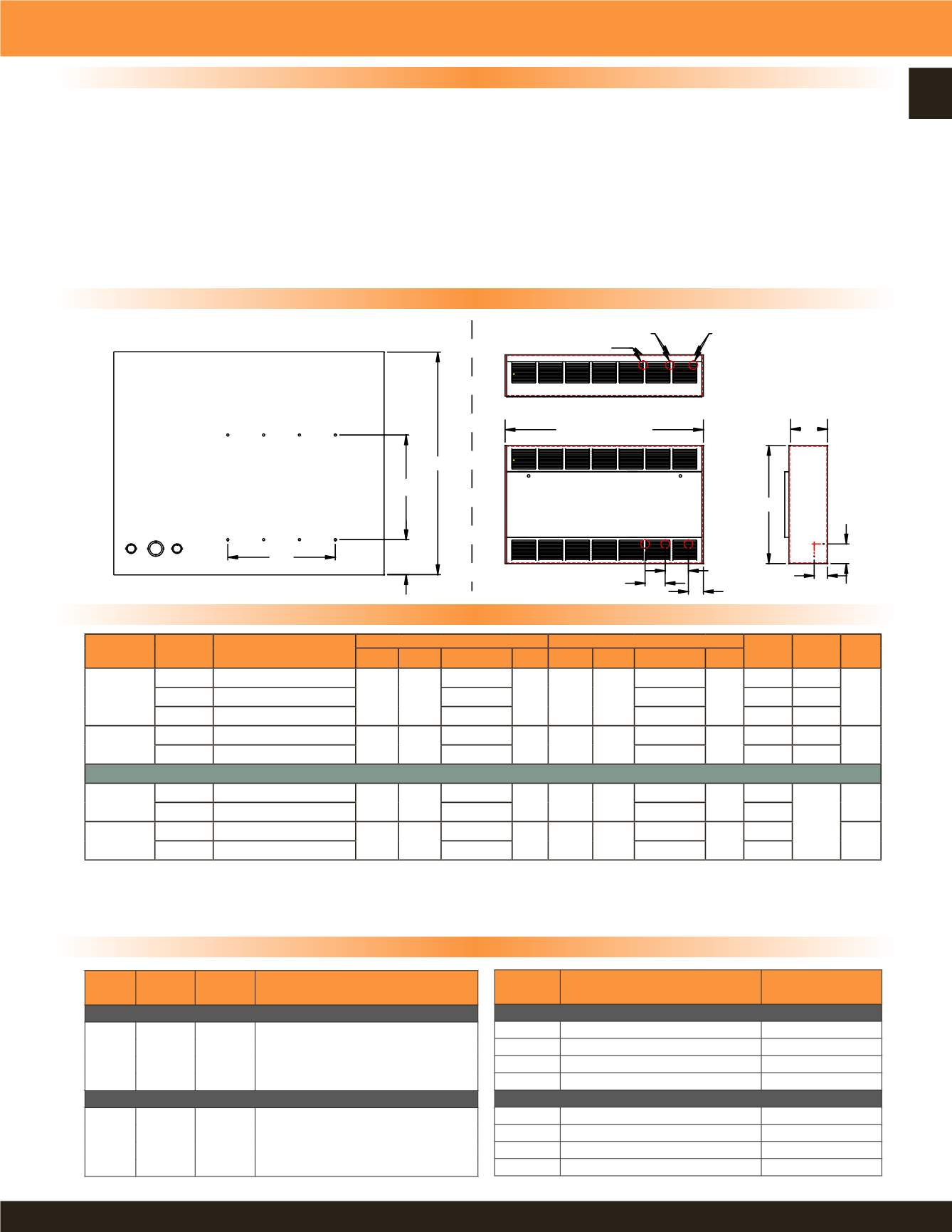

Product Dimensions
Product Features (2-24 KW; All Voltages)
Stocked Models & Features
1 / 3 phase field convertible with 24 Volt control circuit.
Disconnect switch, dust filter, & high low operation.
Built-in thermostat and field convertible for remote thermostat.
Accessories
For commercial and institutional application such as stores,
schools, offices, transportation terminals, churches, entrance
ways.
Wall or ceiling mount; surface, semi-recessed or fully
recessed.
• (8) air inlet and outlet configurations.
Capacities from 2-24 KW with 230 to 1,000 CFM
Motors are two speed, shaded pole, resilient mounted, direct
drive. High/low heat and blower speed offer versatility.
ETL Listed.
• Beige powder coated finish
Choice of eight standard control options include unit or wall
mounted 120 or 24V thermostats, with or without built-in
control transformers.
• Industrial type finned tubular elements.
• Easily removable fan and element decks for simplified
maintenance.
Full length thermal protection.
Limited warranty-one year.
*Factory wired for 3-phase, field convertible to 1-phase.
UPC#
686334 MODEL SIZE
DESCRIPTION
DUCT COLLAR
441568 DC-33
33"
The same model is used for the inlet or outlet.
If duct collars are required for both inlet & out-
let then 2 must be ordered.
441575 DC-46
46"
441582 DC-66
66"
441599 DC-79
79"
RECESSING TRIM FRAMES
453783 TF-33
33"
Recessing Trim Frames should be ordered
to "trim-out" any recessed or semi-recessed
installation.
453790 TF-46
46"
453806 TF-66
66"
453813 TF-79
79"
UPC#
686334
MODEL
SIZE
Fresh Air Make-Up Intake Flange & Kickbase
771580
FAM33
33"
771597
FAM46
46"
771603
FAM66
66"
771610
FAM79
79"
Kickbase (Pedestal) ONLY
771542
KB33
33"
771559
KB46
46"
771566
KB66
66"
771573
KB79
79"
“T” Series Multiple Angle Cabinet Unit Heater
HEATER
LENGTH
UPC#
686334
MODEL
HIGH
LOW
VOLTS PHASE Wt.
(lbs.)
KW BTU’s AMPS CFM KW BTU’s AMPS CFM
33”
667142 T33D052033B30D0F
5 17065
25.0 / 17.6
250 3 10239
15.4 / 9.2
230
208 1-3*
99
667159 T33D052433B30D0F
21.8 / 15.4
13.5 / 8.2
240 1-3*
667081 T33D054833B30D0F
7.8
4.6
480
3
46”
667197 T46D102433B30D0F
10 34130
43.6 / 30.7
500 6 20478
26.9 / 16.2
460
240 1-3*
130
667203 T46D104833B30D0F
15.4
8.1
480
3
International Models
33”
473620 6333D053834B30D0F1
5 17065
7.6
250 3 10239
4.56
230
380
3
(4-Wire)
99
473637 6333D054134B30D0F1
6.97
4.18
415
46”
473644 6346D103834B30D0F1
10 34130
15.2
500 6 20478
9.12
460
380
130
473651 6346D104134B30D0F1
13.94
8.36
415
