35
Optional controls must be factory installed. Field installation is not
acceptable and violates Listing and factory warranty.
Wall mounted control panels may control multiple units but cannot
be used if in-built controls are selected.
480V units include 24V transformer and relay as standard (A1) -
only TS option control section can be added. Depth dimension of all
480V models is 10-7/8”
Degree F air rise is measured at 710 F.P.M. and 425 CFM. Throw
designed for 8 to 12 foot ceilings. db RE 10
-12
Watt=63.9
Unit Weight:
50 lbs.
Recommended Remote Thermostats:
Line Voltage:
Single Phase 208-240V
ET5DS
Single Phase 277V
ET5SS
Three Phase
TW1512
Low Voltage:
UT1001
White powder coated 20 gauge grill.
208V, 240V, & 277V units have manual reset thermal limit.
480V units have manual reset thermal limit, 24V control transformer,
and 24V relay (A1 suffix).
• Enclosed steel fin sheath element.
Rough in dimensions: 23-1/16” sq. x 9-1/8” deep.
Notes
Standard Models
Product Dimensions
Product Specifications
Features
Factory Installed Control Sections
Contractor shall supply and install heavy duty ceiling mounted
forced air electric heater(s) of the wattage, voltage and phase as
indicated on the plans. The heater shall be so designed to provide an
even distribution of heated air to the space to be heated by drawing
return air in the periphery of the heater, across and through the
element and be discharged from the center section of the heater by
means of an electric motor and axial flow fan blade.
Heaters shall be recessed type and mounted flush with the finished
ceiling. The return grille assembly shall be constructed of a one
piece heavy gauge steel with 1/4” slots for return air and concentric
rings for uniform air discharge. Grille assembly shall be attached to
chassis by tamper-resistant (allen head) machine screws. All parts
of enclosure shall be heavy gauge steel, zinc coated both sides and
finished in neutral off white powder coat paint.
Enclosure shall be constructed of 1/6” x 3/8” rounded edge
horizontal steel louvers which shall be spaced for maximum opening
of 5/16”. Louvers shall be welded at every intersection to evenly
spaced 1/8” diameter vertical members. Discharge grille to have
concentric rings for uniform air discharge. Grille assembly shall be
attached to chassis by tamper-resistant (allen head) machine screws.
All part of enclosure shall be heavy gauge steel, Zinc coated both
sides and finished in neutral off white colored powder coat finish.
Motor shall be permanent lubricated, unit bearing, totally
enclosed, impedance protection. Motors shall operate at no more
than 1300 RPM and shall be same voltage as the heater.
Heaters shall have a rating of 425 CFM at 710 F.P.M. with a
maximum temperature rise of 44°F and 63.9 DB RE 10 12 Watt.
Element assemblies shall consist of two or three corrosion
resistant steel sheathed type elements mechanically bonded to
common corrosion resistant steel fins. Each sheathed element shall
consist of helically coiled Nickel Chromium alloy resistant wire
completely embedded in and surrounded by magnesium oxide,
enclosed and wedged into corrosion resistant steel sheaths. Elements
shall have 2” cold conductor pins extending into sheath and shall
have a density of no more than 60 Watts per inch.
Heaters shall be equipped with a “manual reset” thermal overload
which disconnects elements and motor in the event normal operating
temperatures are exceeded. For safety, if opened due to abnormal
temperature, thermal overload shall remain open until manually
reset. Automatic reset thermal overloads which allow the element
to continue to cycle under abnormal conditions will not be accepted.
Heaters shall be ETL listed.
Manufactured in U.S.A.
SUFFIX
DESCRIPTION
A1
Transformer with 24V Secondary and 24V Relay
S
Disconnect Switch
TA1S
Thermostat / Transformer / Disconnect Switch
TA1 Single Pole Thermostat and Transformer with 24V Secondary and 24V Relay
A1S Transformer with 24V Secondary and 24V Relay and Disconnect Switch
T2
Double Pole Thermostat
T2S
Double Pole Thermostat and Disconnect Switch
R
Relay Control Voltage Same as Heater (control voltage field supplied)
R1
Relay 24V Control Voltage (control voltage field supplied)
R2
Relay 120V Control Voltage (control voltage field supplied)
T
Single Pole (480V only)
L
Factory installed adjustable louver diffuser option.

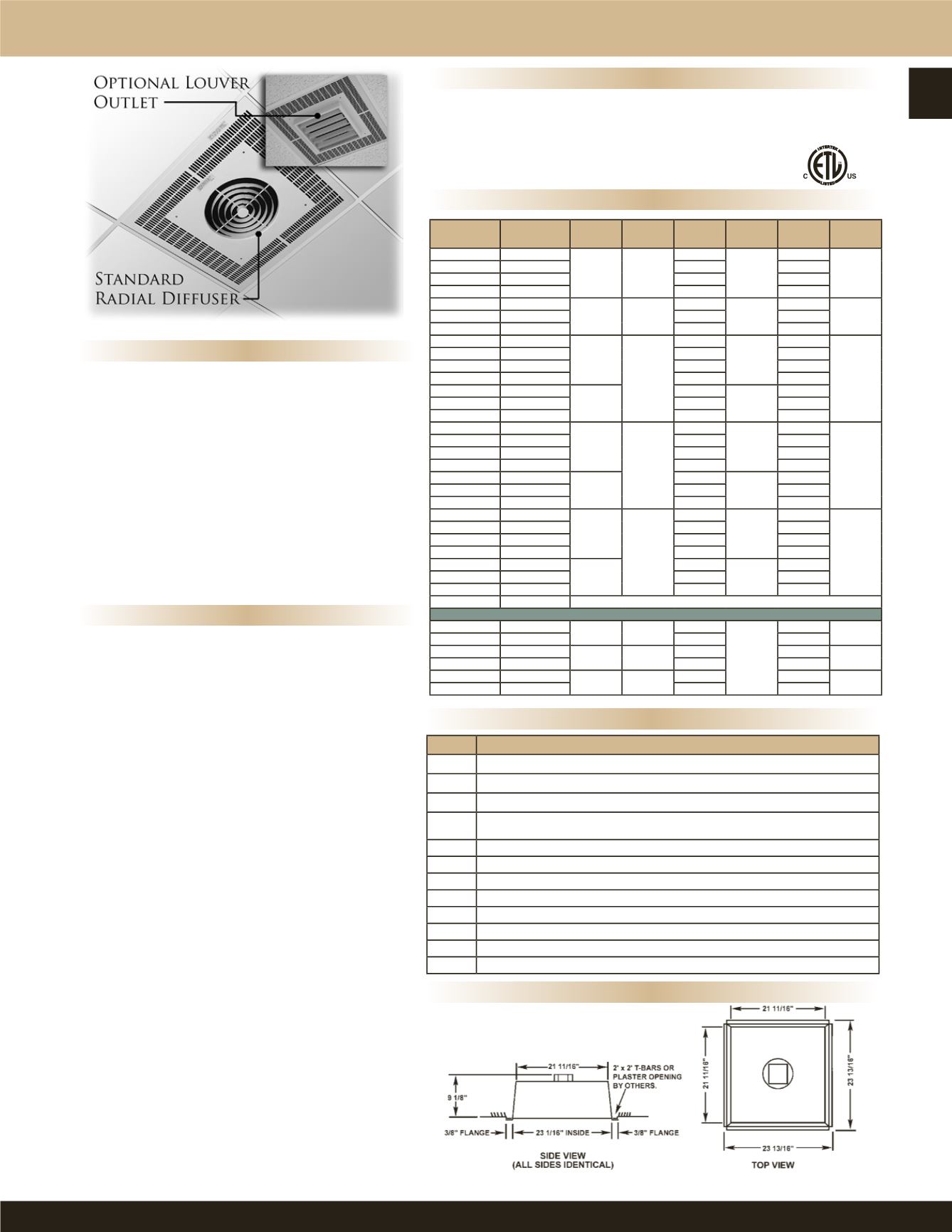

RCH Series Commercial Fan Forced Recessed Mounted Ceiling Heater
UPC#
686344 MODEL KW BTU’S VOLTS PH AMPS TEMP
RISE
367653 81RCH2
2
6826
208
1
9.6
15 °F
367677 21RCH2
240
8.3
367660 71RCH2
277
7.2
318471 41RCH2A1
480
4.2
470186 83RCH2
2
6826
208
3
5.6
15 °F
470209 23RCH2
240
4.8
470247 43RCH2A1
480
2.4
367684 81RCH3
3
10200
208
1
14.4
22 °F
367707 21RCH3
240
12.5
367691 71RCH3
277
10.8
318488 41RCH3A1
480
6.3
470193 83RCH3
3
208
3
8.3
470216 23RCH3
240
7.2
470254 43RCHA1
480
3.6
367714 81RCH4
4
13600
208
1
19.2
30 °F
367738 21RCH4
240
16.8
367721 71RCH4
277
14.4
318501 41RCH4A1
480
8.3
367745 83RCH4
4
208
3
11.1
367752 23RCH4
240
9.7
318587 43RCH4A1
480
4.8
367769 81RCH5
5
17000
208
1
24.1
37 °F
367783 21RCH5
240
20.8
367776 71RCH5
277
18.1
318549 41RCH5A1
480
10.4
367790 83RCH5
5
208
3
13.9
367806 23RCH5
240
12.1
318402 43RCH5A1
480
6.1
366106
PT3480
Recess Frame - Weight 5 lbs.
International Models
470971 M3482T2i
2
6826 220
1
9.1 15 °F
470988 N3482T2i
240
8.3
470995 M3483T2i
3
10200 220
13.6 22 °F
471008 N3483T2i
240
12.5
471015 M3484T2i
4
13600 220
18.2 30 °F
471022 N3484T2i
240
16.7
