29
FRONT IN
TOP OUT
BOTTOM IN
TOP OUT

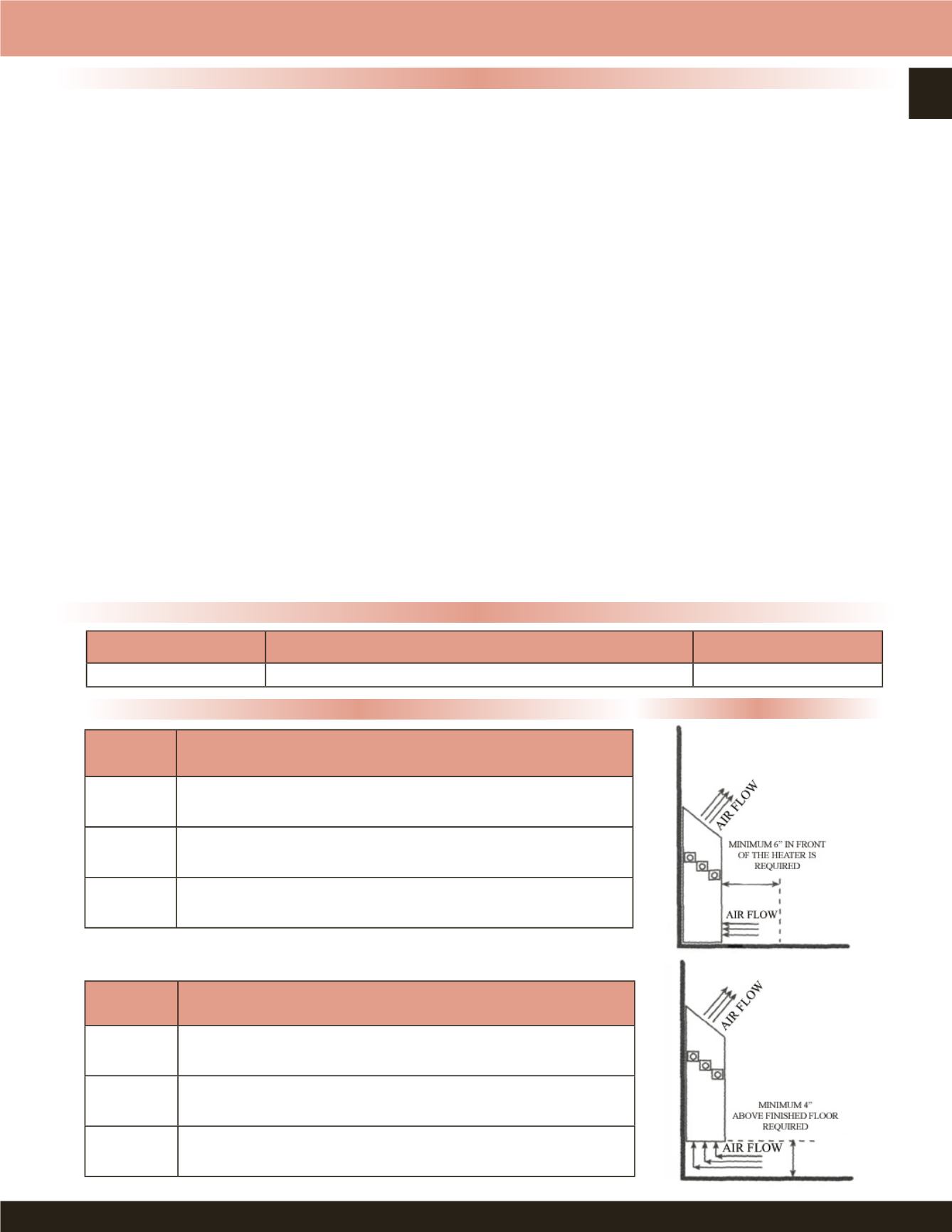

Mounting/Air Flow Options
In-Built Control Options
Note: Due to size limitations, 8510 series convectors can only have thermostats as
In-Built control options.
8500 Series Commercial Slope Top Wall Convector
Product Specifications
CABINET:
Rugged 16 gauge front cover with discharge louvers in sloped top design. Pencil proof louver design for
sloped outlet and front inlet grill. The finish shall be durable powder coated paint. Air flow available as
bottom in - top out, or front in - top out.
ELEMENT:
All steel high mass element construction with Nickel-Chromium resistance wire embedded in compacted
efficient dielectric to ensure proper heat transfer. Aluminum fins mechanically bonded to steel tube allows
for increased surface area and even heat transfer.
LIMIT CONTROLS:
Automatic reset hydraulic thermal overload covers full length of heating element and shuts down heater
when safe operating temperatures are exceeded.
WIRING:
Connection boxes in either end with ½ inch to ¾ inch knockouts at back and bottom. Tubular prewired wire
way with 40 Amp capacity.
CONTROLS:
Optional built in tamper resistant thermostat and disconnect is adjustable through top outlet louver.
MOUNTING:
Heater shall be surface mounted to wall or mullion. Bottom inlet units must be mounted a minimum of 4
inches above finished floor front inlet.
Voltage & Wattage Specification
Voltage
Standard Wattages Per Foot
Heater Lengths
120-277
100,125,150,165,187,200,250
2’ through 10’
SUFFIX
DESCRIPTION
T1
In-Built Tamper Proof, Single Pole, Bimetal Thermostat - 0°-110°F temp. range,
25 Amp
T2
In-Built Tamper Proof, Double Pole, Bimetal Thermostat - 0°-110°F temp. range,
25 Amp
DS
Double Pole Disconnect Switch, 20 Amp
SUFFIX
DESCRIPTION
R1
DPST Relay, 30 Amps, up to 277V, 120V coil
R2
SPST Relay, 18 Amps @ 277V (max), 24V coil
R9
24V Transformer and SPST Relay, 22 Amps @240V, 18 Amps @ 277V (max), 24V coil
(cannot be used in conjunction with T2 option)
