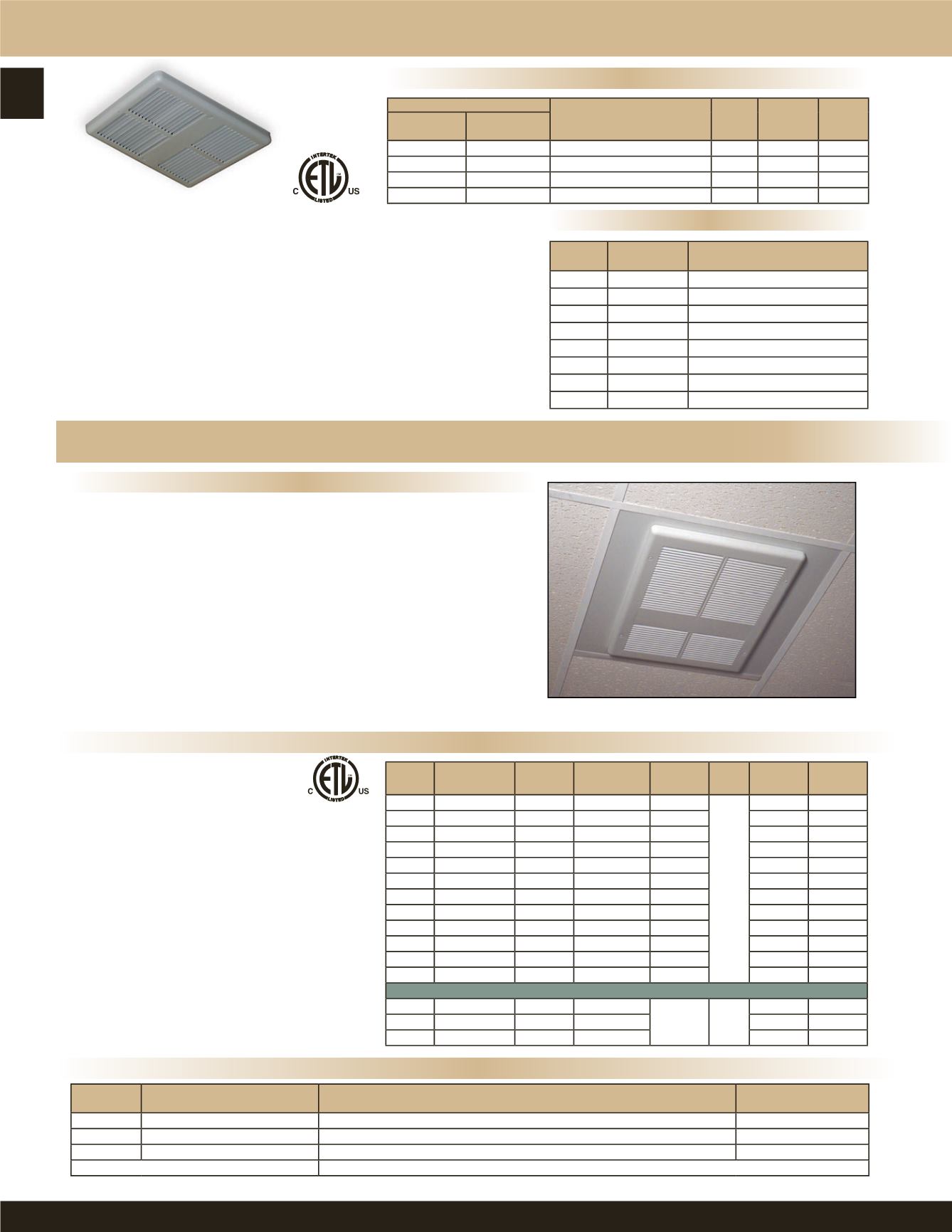

Selectable Wattages, Back Cans, And Power Disconnects
Recess, Surface, Or
“T” Bar Mounting
Standard Models
Field Installed Accessories
The heaters are be constructed of a heavy gauge steel housing. The rough-
in dimensions are 19-3/16” wide x 4” deep. The finish shall be baked-on
powder coat in Ceiling White color. The units shall be available in ratings
from 1500 through 4800 Watts with an optional factory installed single pole
thermostat.
The heaters have a low speed 600-RPM motor, which drives a vane axial
blower to deliver a quite 175 CFM’s of down flow air. The heating element
shall be of the block finned type with large, parallel steel fins for quick heat
transfer. Unit shall have as standard, a manual reset capillary type limit
control, for added safety. Unit weight 22 pounds.
Product Specifications
Features & Standard Models
Accessories
3000 Series Fan Forced Ceiling Heater
3380 Series Commercial Fan Forced Ceiling Heater
Wattage selectable at time of installation - models shipped wired to highest Wattage
Fan purge circuit (has 2 wire control circuit for use with remote wall thermostat)
Models may not be used with remote double pole thermostat
Drywall depth embossments on back can
Powder coated 18 gauge steel front
Manual reset thermal limit
• Steel block fin element
Propeller style fan blade - 1060 RPM / 100 CFM
Weight 6 lbs.
• Optional field installed control voltage relays available
Rough in dimensions - 9 1/4” Wide - 12 1/8” High - 3 5/8” Deep
Grill dimensions:
9 25/32” Wide - 13” High
Fan purge circuit (has 2 wire control circuit for use
with remote wall thermostat)
Disconnect switch
White powder coated 18 gauge steel grill
Manual reset thermal limit
• Steel block fin element
Vane axial fan blade:
1.5KW - 4.0KW units: 700 RPM motor; 175
CFM 4.8KW units: 900 RPM motor; 200 CFM
Rough in dimensions:
14 3/16” wide x 19 5/16” high x 4” deep
Grill dimensions:
15 3/8” wide x 20 9/64” high
Optional factory installed tamper resistant
thermostat
Manufactured in U.S.A.
Manufactured in U.S.A.
WHITE
SELECTABLE
INSTALLATION WATTAGE
MAX
BTU'S VOLTS MAX
AMPS
UPC#
686334
MODEL
948821 E3035DWBW 750 or 1500
5120 120
13
948838 E3038DWBW 900 or 1800
6143 120
15
948883 H3032DWBW 750 or 1000 - 1500 or 2000 6826 208 / 240 8
948906 G3032DWBW
2000
6826 277
7
UPC
686334 MODEL
DESCRIPTION
996846
30R
24 VOLT RELAY
996853 30R2
120 VOLT RELAY
951500 30R8
208/240 VOLT RELAY
951494 30R7
277 VOLT RELAY
996976 303EX8RW 1" EXTENDER
996969 303EX16RW 2" EXTENDER
996952 303EX32RW 4" SURFACE MOUNT FRAME
460033 TB3000
T-BAR FRAME
UPC
686334
MODEL
DESCRIPTION
WT.
377850
BOX3310
Additional Back Can
10 lbs
381109
3380EX33
Surface Mounting Adapter
1 lb
460026
TB3380
2X2 T-Bar Mounting Kit
7 lbs
Thermostat- Add suffix T to model
Factory installed single pole, positive off. Range-60
°
F-105° F
UPC#
686334 MODEL KW BTU’S VOLTS PH AMPS TEMP
RISE
366489 E3383D-RP 1.5
5120
120
1
12.5
27 °F
366298 F3386D-RP 4.0
13600
208
19.2
72 °F
366304 F3387D-RP 4.8
16382
208
23.1
76 °F
366342 HF3384D-RP 2.0 / 1.5 6826/5120 240/208
8.3/7.2 36 °F
366359 HF3385D-RP 3.0 / 2.3 10200/7679 240/208
12.5/10.8 54 °F
366366 HF3386D-RP 4.0 / 3.0 13600/10200 240/208
16.8/14.4 72 °F
366373 H3387D-RP 4.8
16382
240
20
76 °F
366502 G3383D-RP 1.5
5120
277
5.4
27 °F
366410 G3384D-RP 2.0
6826
277
7.2
36 °F
366427 G3385D-RP 3.0
10200
277
10.8
54 °F
366434 G3386D-RP 4.0
13600
277
14.4
72 °F
366441 G3387D-RP 4.8
16382
277
17.3
76 °F
International Models
470889 M3384D-RPi 1680
5734
220
1
7.6 30 °F
470896 M3385D-RPi 2520
8600
11.5 50 °F
470902 M3386D-RPi 4032
13761
18.3 72 °F
