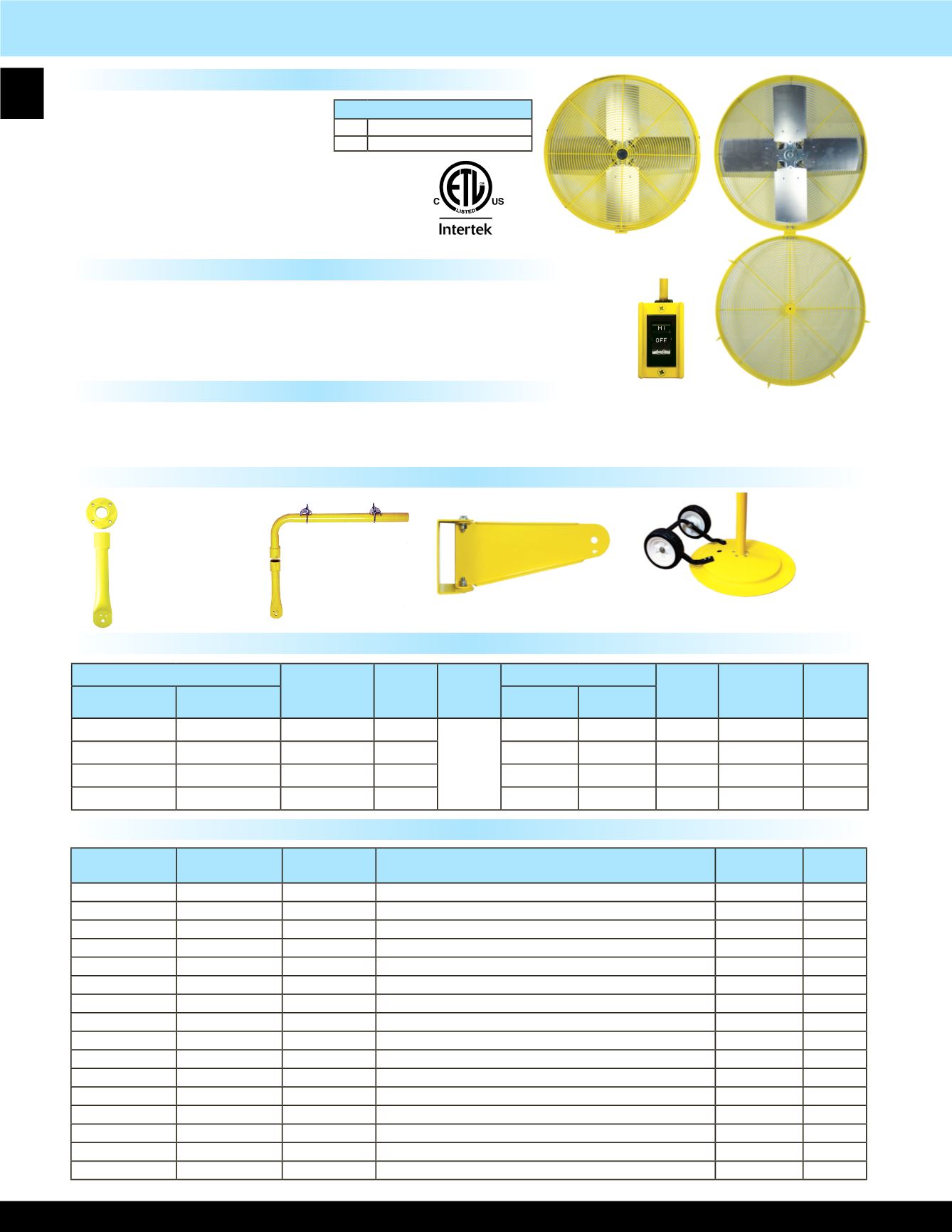

2
HDM-W
WALL MOUNT
HDM-I
I-BEAM MOUNT
HDM-C
CEILING MOUNT
OPTIONAL
WHEEL KIT
• Easy access hinged guard
• 18” drop down, 2-Speed switch
• Cord options are shown below
• Steel hub/spider aluminum paddle blades
• Powder coated steel guards
• Meets OSHA standards
• 5 year limited warranty
• Made in U.S.A. with domestic and foreign components.
• 2-Speed
• 1-Phase, 120V
• Permanent split capacitor
• Frame size: 48
• 1/2 HP
• Ball bearing
• Totally enclosed, permanently lubricated
• 1/2” Shaft
• Pedestal pole adjusts the center
of the fan from 48 to 67 inches.
• Pedestal steel dome base is 27” in
diameter and has 5 carriage bolts.
Features
Motor Specifications
Pedestal Specifications
DIMENSIONS
24” 27” Diameter x 14.5” Depth
30” 33.5” Diameter x 14.5” Depth
Accessories
Standard Models
Factory Assembled and Tested Fan Heads, Mounts, and Wheel Kits
Closed (Front)
Open (Front)
Note: 1-1/2” pipe piece
required for assembly
Note: 1-1/2” pipe piece
required for assembly
TPI Industrial Assembled Maximum Duty Circulators
ASSEMBLED FAN HEAD
COLOR BLADE
SIZE
HP
CFM / RPM
AMPS
WT.
(LBS)
HEAD
LIST
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
HIGH
LOW
08744402
HDH 24-JR
Yellow
24”
1/2
5600 / 1100 4500 / 800
3.5
44
668
08744602
HDH 30-JR
Yellow
30”
6800 / 1100 5400 / 800
4
48
686
08745002
HDH 24-GJR
Gray
24”
5600 / 1100 4500 / 800
3.5
44
668
08745102
HDH 30-GJR
Gray
30”
6800 / 1100 5400 / 800
4
48
686
MFG CATALOG
NUMBER
MFG MODEL
NUMBER
COLOR
DESCRIPTION
WT.
(LBS)
LIST
07960902
HDM-P
Yellow
Heavy Duty Pedestal Mount
34
204
07961002
HDM-W
Yellow
Heavy Duty Wall Mount
3
81
07961102
HDM-I
Yellow
Heavy Duty I-Beam Mount
9
154
07961202
HDM-C
Yellow
Heavy Duty Ceiling Mount
3
89
07961802
ACM-P
Gray
Pedestal Mount
34
192
07961902
ACM-W
Gray
Wall Mount
3
75
07962002
ACM-I
Gray
I-Beam Mount
9
146
07962102
ACM-C
Gray
Ceiling Mount
3
81
07962202
ACM-S
Gray
Suspension Mount
2
66
08747202
RS 06-EC
Yellow
6’ Extension cord used with drop down power switch
1
23
08747302
RS 09-EC
Yellow
9’ Extension cord used with drop down power switch
1.5
25
08747402
RS 12-EC
Yellow
12’ Extension cord used with drop down power switch
2
27
08747502
SCK-12
----
12’ Safety cable with clamps
.5
25
08747602
R1-MOT
Yellow
1/2 HP motor with remote switch
1
192
08681802
ACM-PM Standard Black
Pole Mount
5
98
08681302
ACM-WK Standard Black
Optional Wheel Kit
4
90
