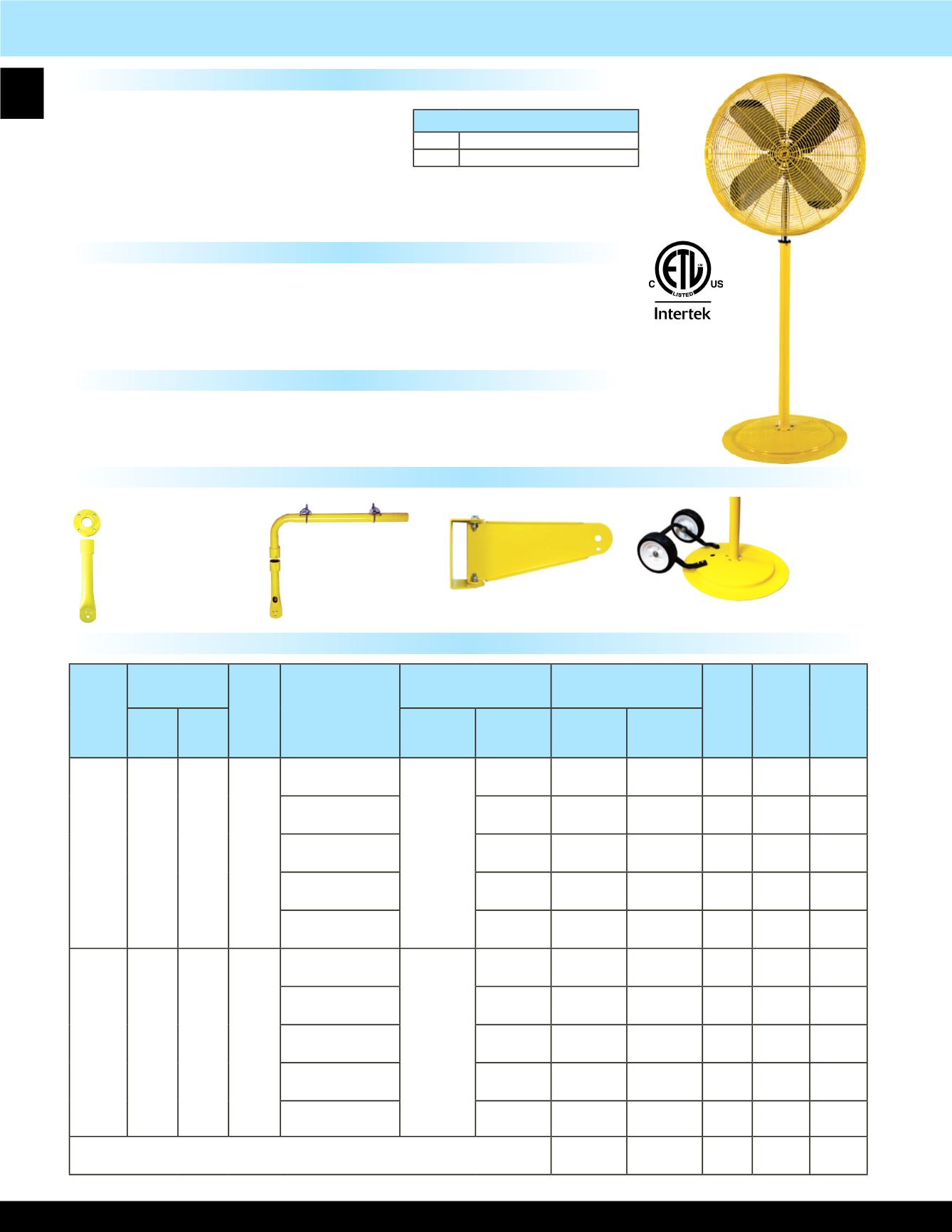

TPI Industrial Heavy Duty Yellow Air Circulator
Features
• Pull chain switch
• Cord-SJT type 3 conductor, 12’ long
• Steel hub/spider aluminum paddle blades
• Powder coated steel guards
• Meets OSHA standards
• 5 year limited warranty
• Made in U.S.A. with domestic and foreign components.
• 2-Speed
• 1 Phase, 120V
• Permanent split capacitor
• Frame size: 48
Motor Specifications
• 1/2 HP
• Ball bearing
• Totally enclosed, permanently lubricated
• 1/2” Shaft
Standard Models
• Pedestal pole adjusts the center
of the fan from 48 to 67 inches.
Pedestal Specifications
• Pedestal steel dome base is 27” in.
diameter and has 5 carriage bolts.
Factory Assembled and Tested Fan Heads, Mounts, and Wheel Kits
WITH HDM-P
PEDESTAL MOUNT
HDH-30 FAN HEAD
HDM-W
WALL MOUNT
HDM-I
I-BEAM MOUNT
HDM-C
CEILING MOUNT
OPTIONAL
WHEEL KIT
DIMENSIONS
24”
27” Diameter x 14.5” Depth
30”
33.5” Diameter x 14.5” Depth
Note: 1-1/2” pipe piece
required for assembly
Note: 1-1/2” pipe piece
required for assembly
SIZE
CFM / RPM
AMPS
HIGH FAN TYPE
FAN HEAD
MOUNT
WT.
(LBS)
HEAD
LIST
MOUNT
LIST
HIGH LOW
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
24”
5600 /
1100
4500 /
800
3.5
Fan Head
07960702
HDH 24
-----
-----
44
612
-----
Pedestal Fan
HDH 24 07960902 HDM-P
78
612
204
Wall Mount Fan
HDH 24 07961002 HDM-W 47
612
81
I-Beam Mount Fan
HDH 24 07961102
HDM-I
53
612
154
Ceiling Mount Fan
HDH 24 07961202 HDM-C 47
612
89
30”
6800 /
1100
5400 /
800
4
Fan Head
07960802
HDH 30
-----
-----
48
625
-----
Pedestal Fan
HDH 30 07960902 HDM-P
82
625
204
Wall Mount Fan
HDH 30 07961002 HDM-W 51
625
81
I-Beam Mount Fan
HDH 30 07961102
HDM-I
57
625
154
Ceiling Mount Fan
HDH 30 07961202 HDM-C 51
625
89
Optional Wheel Kit
08681302 ACM-WK 4
----
90
