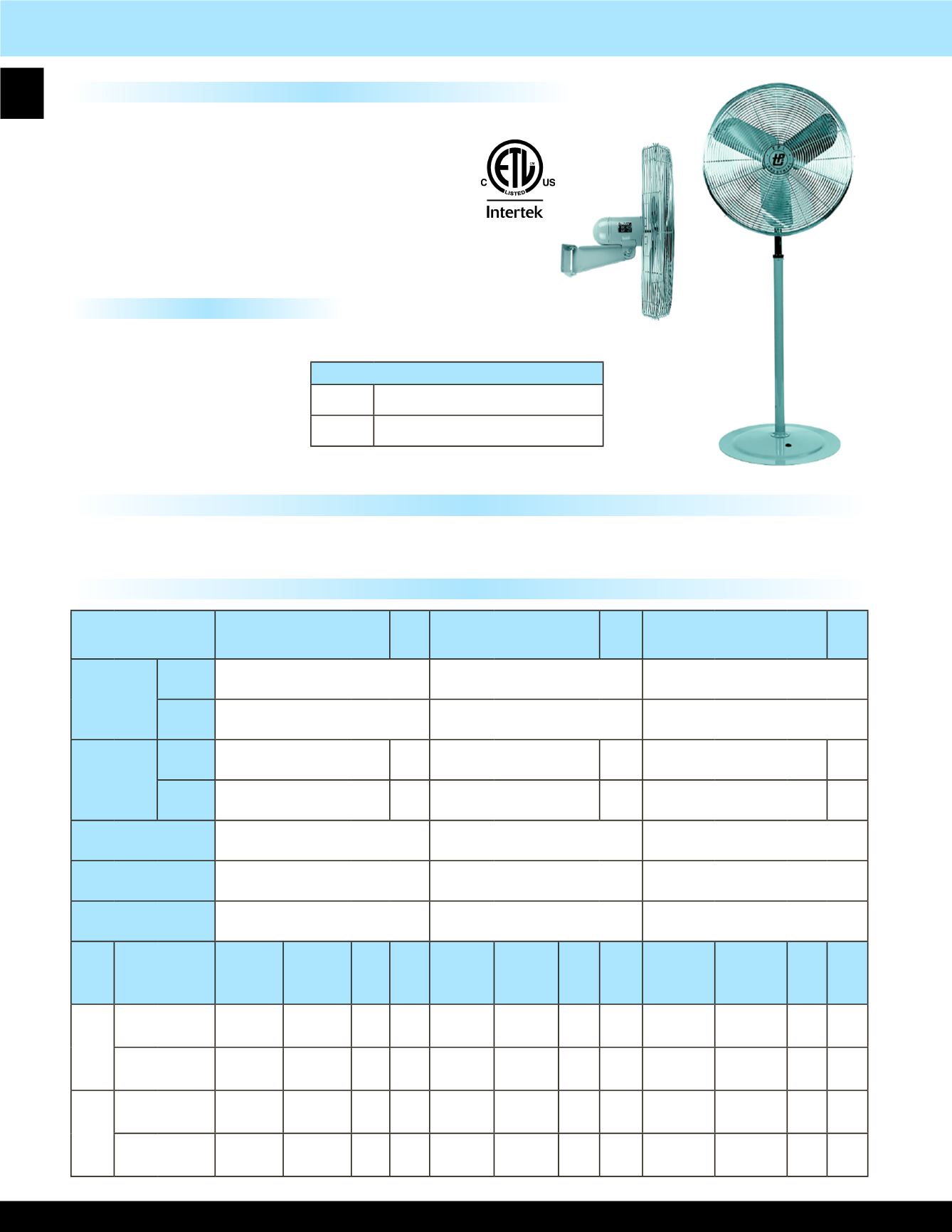

TPI Industrial Unassembled Circulators
Features
Motor Specifications
• Pull chain switch
• SJT type 3 conductor, 12’ long cord
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Meets OSHA standards
• Motor, blades, guard, and mount are packed and
shipped in a single UPS-able carton.
• Made in U.S.A. with domestic and foreign components.
• 2-speed
• 1-Phase, 120V
• Ball bearing
• Frame size: 48
• Totally enclosed
• Permanent split capacitor
• Permanently lubricated
• 1/2” Shaft
Product Specifications
• Oscillating model oscillates in a 90° arc or can be locked in a fixed position
• Metal gears in the oscillating mechanism allow the fan to operate at a maximum 30° downward tilt
WALL
MOUNT
PEDESTAL DIMENSIONS
24” 27” Diameter x 14.5” Depth
30” 33.5” Diameter x 14.5” Depth
Standard Models
FAN TYPE HIGH PERFORMANCE MAXAMPS STANDARD INDUSTRIAL MAXAMPS OSCILLATING MAX
AMPS
MOTOR
HP 1/3 1/4 1/4
SPEEDS 2 2 2
CFM / RPM
24” 5000 / 4000
1100 / 800 2.8 4500 / 3600
1100 / 800 2.5 4500 / 3600
1100 / 800 2.5
30” 6000 / 4800
1100 / 800 3.0 5400 / 4300
1100 / 800 2.7 5400 / 4300
1100 / 800 2.7
COLOR GRAY GRAY GRAY
POLE ADJUSTMENT 52” to 78” 52” to 78” 52” to 78”
WARRANTY 3 YEARS 1 YEAR 1 YEAR
SIZE TYPE ofMOUNT
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WT.
(LBS) LIST
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WT.
(LBS) LIST
MFG
CATALOG
NUMBER
MFG
MODEL
NUMBER
WT.
(LBS) LIST
24”
Pedestal Mount 07990002 UHP 24-P 75 606 07962302 ACU 24-P 75 451 07964002 ACU 24-PO 79 684
Wall Mount 07990202 UHP 24-W 45 494 07962402 ACU 24-W 45 376 07964102 ACU 24-WO 49 573
30”
Pedestal Mount 07990102 UHP 30-P 73 625 07962802 ACU 30-P 73 464 07964202 ACU 30-PO 82 698
Wall Mount 07990602 UHP 30-W 48 513 07962902 ACU 30-W 48 389 07964302 ACU 30-WO 52 586
