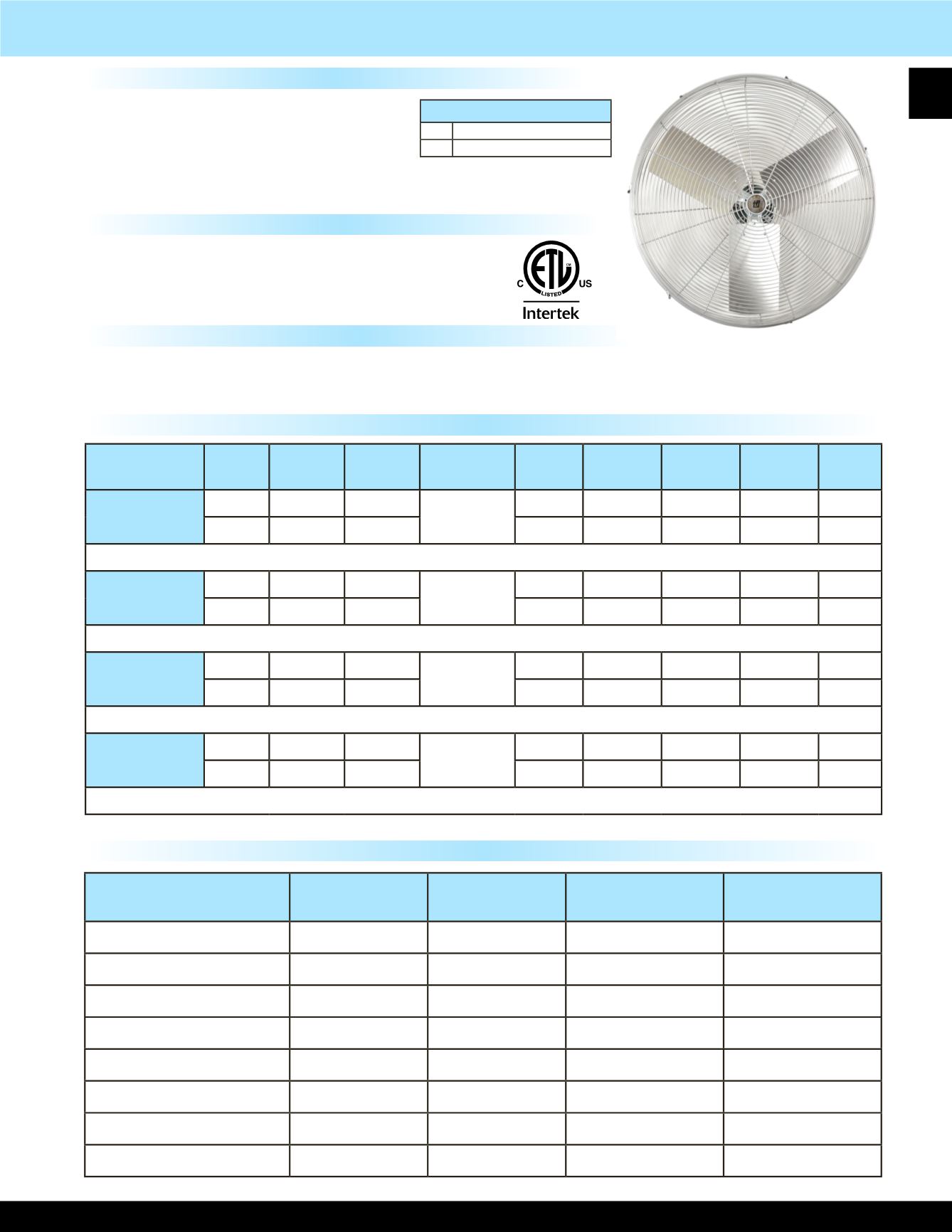

TPI Industrial Assembled Circulator Heads and Mounts
Features
Motor Specifications
• Pull chain switch
• SJT type 3 conductor, 12’ long cord
• Steel hub/spider aluminum paddle blades
• Coated steel guards
• Meets OSHA standards
• Made in U.S.A. with domestic and foreign components.
• 2-Speed
• 1 Phase, 120V
• Ball bearing
• Frame size: 48
• Totally enclosed
• Permanent split capacitor
• Permanently lubricated
• 1/2” Shaft
Product Specifications
• Oscillating model oscillates in a
90° arc or can be locked in a fixed
position
• Metal gears in the oscillating
mechanism allow the fan to operate at
a maximum 30° downward tilt
Standard Models
TPI offers six factory assembled and tested fan mounts that can be used with any of the non-oscillating TPI Industrial heads.
Industrial Mounts
DIMENSIONS
24” 27” Diameter x 14.5” Depth
30” 33.5” Diameter x 14.5” Depth
ACH 30
H.P.
BLADE
SIZE
MFG
MODEL
NUMBER
MFG
CATALOG
NUMBER
FAN HEAD
TYPE
CFM RPM AMPS
WT.
(LBS)
LIST
Industrial
1/4
24”
ACH 24 07961602
STATIONARY
4500/3600 1100/800
2.5
40
350
30”
ACH 30 07961702
5400/4300 1100/800
2.7
44
363
1 Year Warranty
High Performance
1/3
24”
IHP 24-H 07989802
STATIONARY
5000/4000 1100/800
2.8
40
448
30”
IHP 30-H 07989902
6000/4800 1100/800
3
44
468
3 Year Warranty
Heavy Duty
1/2
24”
HDH 24-G 08539202
STATIONARY
5600/4500 1100/800
3.5
44
586
30”
HDH 30-G 08528602
6800/5400 1100/800
4
48
606
5 Year Warranty
Industrial Oscillating
1/4
24”
ACH 24-O 07963602
OSCILLATING
4500/3600 1100/800
2.5
44
540
30”
ACH 30-O 07963702
5400/4300 1100/800
2.7
48
559
1 Year Warranty
MOUNT
MFG
MODEL
NUMBER
MFG
CATALOG
NUMBER
WT.
(LBS)
LIST
Pedestal (1/2HP Models)
GACM-P
08753802
34
204
Pedestal (1/3 & 1/4HP Models)
ACM-P
07961802
34
192
Wall Mount
ACM-W
07961902
3
75
I-Beam Mount
ACM-I
07962002
9
146
Ceiling Mount
ACM-C
07962102
3
81
Suspension Mount
ACM-S
07962202
2
66
Pole Mount
ACM-PM
08681802
5
98
Optional Wheel Kit
ACM-WK
08681302
4
90
