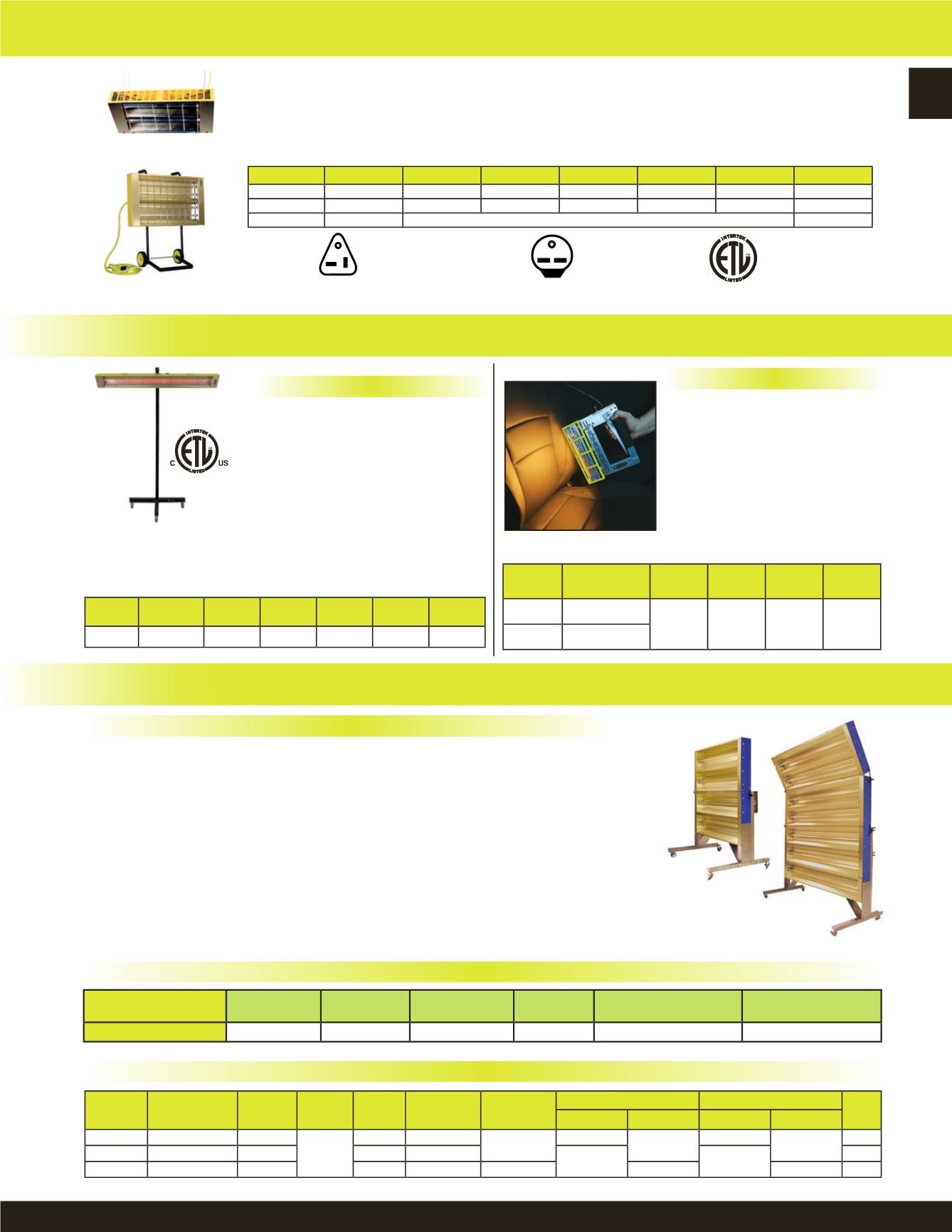

77
30 AMP Plug
NEMA #6-30P
20 AMP Plug
NEMA #6-20P
20 AMP Plug
NEMA #5-20
PCH Series Portable Quartz Infrared Spot Heater
Portable Infrared Instant On-Off Heat Gun
CH Series Portable Quarts Infrared Heater
MODELCH 2212-1C
has two 1000 Watt elements that can be switched on / off by toggle switches
to produce 1000 Watts or 2000 Watts of heat. - 15’ cord and NEMA 5-20 molded plug.
MODEL CH 6424-1C
has two sets of 1425 Watt elements that can be switched on / off by toggle
switches to produce 2850 Watts or 5700 Watts of heat. - 15’ cord and NEMAL6-30 twist lock plug.
60° symmetrical heat pattern.
Quartz tubes and built in wire guards included.
• Interior or protected outdoor use only.
• GOLD anodized Aluminum reflector and end caps.
Chain mounted
CH 2212-1C
Portable Cart Unit CH 6424-1C
with FHK-1 Cart
Listed
for
overhead
operation
Note: CH-2212-1C operates
with a 20- Amp molded plug.
Note: CH-6424-1C operates
with a 30- Amp twist lock plug.
Manufactured in U.S.A.
Features
Portable Electric Infrared Heat Panels
HP-11-QT
Portable panels are built to withstand rigors of industrial and heavy-commercial applications,
such as auto collision repair shops.
20 gauge Steel frame, base, and housing construction.
3” Steel casters for high stability and ease of mobility
• Gold anodized Aluminum reflectors and end caps allow 10% faster cure time than polished
Aluminum reflectors, especially in paint and dust-laden atmospheres.
Elements achieve full temperature in less than 2 minutes
Fused disconnect switches are installed on the back of each unit.
Units are positioned with adjustable hinges allowing the user to use direct heat more precisely
to the target area.
• Gentle but effective medium-wave radiant heat can quickly boost, flash-off, or cure a variety
of finishes, and lessens the chance of blistering and/or overheating the coating.
• Medium-wave infrared heating elements are also effective for flash-off of water-based clear
coatings being mandated by environmental agencies in many states.
Features
Standard Models
General Curing Guidelines
Note: Curing times will vary depending on material and shop conditions. This chart is based on distances of 18-24” away from the target area.
Material Type
Solvent Based
Primer
Water Based
Primer
Two Component
Primer
Water Based
Clear Coat
Acrylic enamel &
Polyurethane Clear Coat
Urethane Clear Coat &
High Solids Top Coat
Curing Time
3-5 mins
3-6 mins
8-20 mins
3-10 mins
12-30 mins
10-30 mins
HP-5-QT
Width: 53”
Height: 2-6’
Depth: 28”
Features
Provides instant spot heat in a
controlled pattern
Spot cure retouched paint and other
finishes
De-wrinkle or relax materials such
as cloth-vinyl-leather
T-3 Tungsten IR lamp
Spring loaded power button switch
Suitable for portable spot heat or for curing
clear coat paint
Height adjustable from 2’ to 4’
On-Off rocker switch standard
4 casters included; Tip-Over power cutoff
safety switch
60
o
symmetrical heat pattern
5/8” diameter quartz tube included
Average element life is 5000 hours
• Bright Aluminum reflector and end caps
20 gauge powder coated Steel housing
15’ long, 3 wire (14/3) cordset with standard 3 pring NEMA 5-20P
10’ long, 18/3 grd. cordset with NEMA plug
UPC 686334 MODEL
KW BTU's
VOLTS PHASE AMPS
WT.
884099 CH-2212-1C 2.0 / 1.0 6826 / 3413
120
1
16.7 / 8.35 16 lbs.
884105 CH-6424-1C 5.7 / 2.85 19454 / 9727 240
1
23.8 / 11.9 31 lbs.
852401
FHK-1
OPTIONAL CART
20 lbs.
UPC# Model
WATTS VOLTS AMPS HEAT
SOURCES
CABLE
TYPE (20’)
Dimension (In.)
Heated Area (In.)
Wt.
686334
Width Height
Width Height
884129 HP-5-QT 4,800
240
20
4
12-3 SO 44-5/8 56-1/2
40
44 116
884136 HP-6-QT 6,400
26.7
4
66-5/8
61
141
884143 HP-11-QT 11,200
46.7
7
6-3 SO
89-1/2
77 225
UPC#
686334 MODEL WATTS BTU’s VOLTS PHASE WT.
884112 PCH-48C 1500
5120
120
1
30
UPC#
686334
MODEL WATTS VOLTS AMPS WT.
592284 RHG-1012A
1000
120
8.4
3
592277 RHG-1012B
